Mid-level Horizontal Cylinder Servicing Workstation
1. The equipment efficiently disassembles threaded hydraulic columns/jacks (5-20T) with constant-torque tightening, handling large threaded components for coal mining applications.
2. Features self-positioning locking mechanism (replacing hydraulic clamps) for simplified operation and enhanced reliability, with modular design for underground maintenance.
3. Uses mining emulsion hydraulic fluid with split pump/main unit design, standard mining components, and full electrical protections (overload/short circuit/pressure loss).
4. Comprises high-strength welded frame, clamping slides, roller assembly, chuck mechanism, and smart electro-hydraulic controls (MT/T 98-2006 compliant).
5. Optimized design improves performance for efficient coal mining equipment maintenance.
It can successfully entire the disassembly of more than a few threaded fastening hydraulic aid columns and jacks, and is outfitted with a constant torque meeting feature to make certain the specific pre-tightening of threaded connectors. At the equal time, it can cope with the disassembly and meeting wishes of giant threaded components, assembly the assorted renovation necessities of coal mine complete mining equipment.
2. The tools makes use of an modern self-positioning locking mechanism to substitute the common hydraulic clamping system, which substantially simplifies the operation technique and appreciably improves the working reliability. The modular sketch makes upkeep extra convenient, and the average structural diagram completely considers the one of a kind wants of the underground working environment.
3. The expert configuration of the tools consists of the use of mining emulsion as the hydraulic medium, the use of a cut up diagram of the pump station and the predominant engine to enhance safety, and the key hydraulic aspects are all wellknown components for mining to make certain the provide of spare parts, and are outfitted with a whole electrical safety machine (including overload, quick circuit, and strain loss protection) to make certain operational safety.

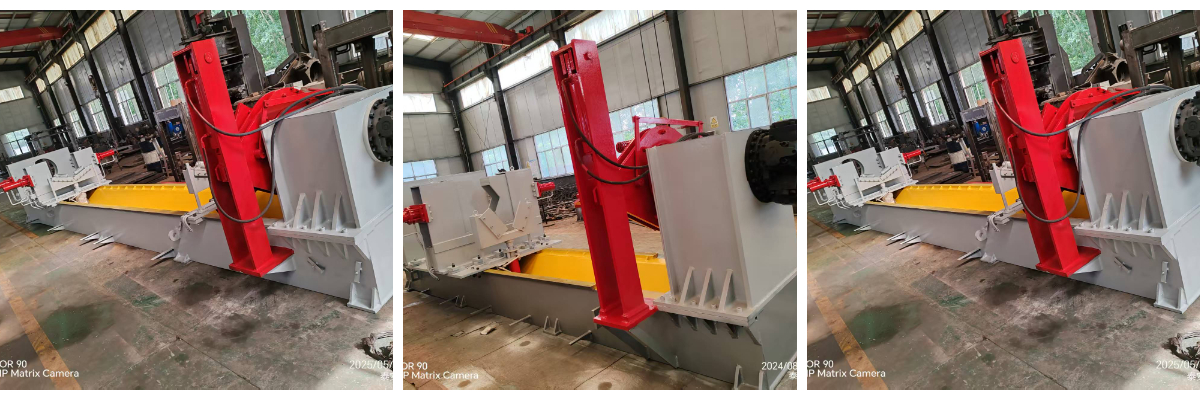

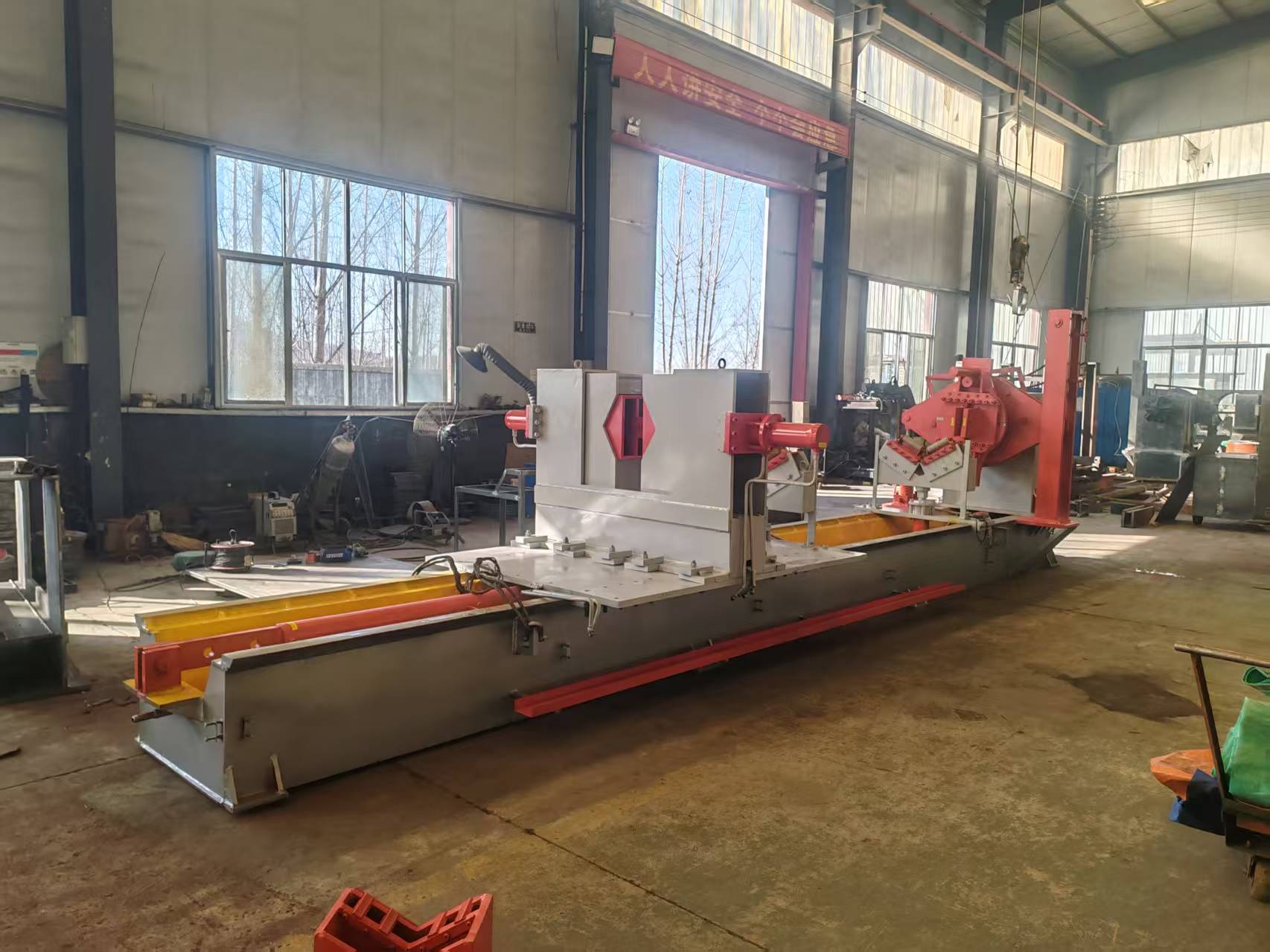

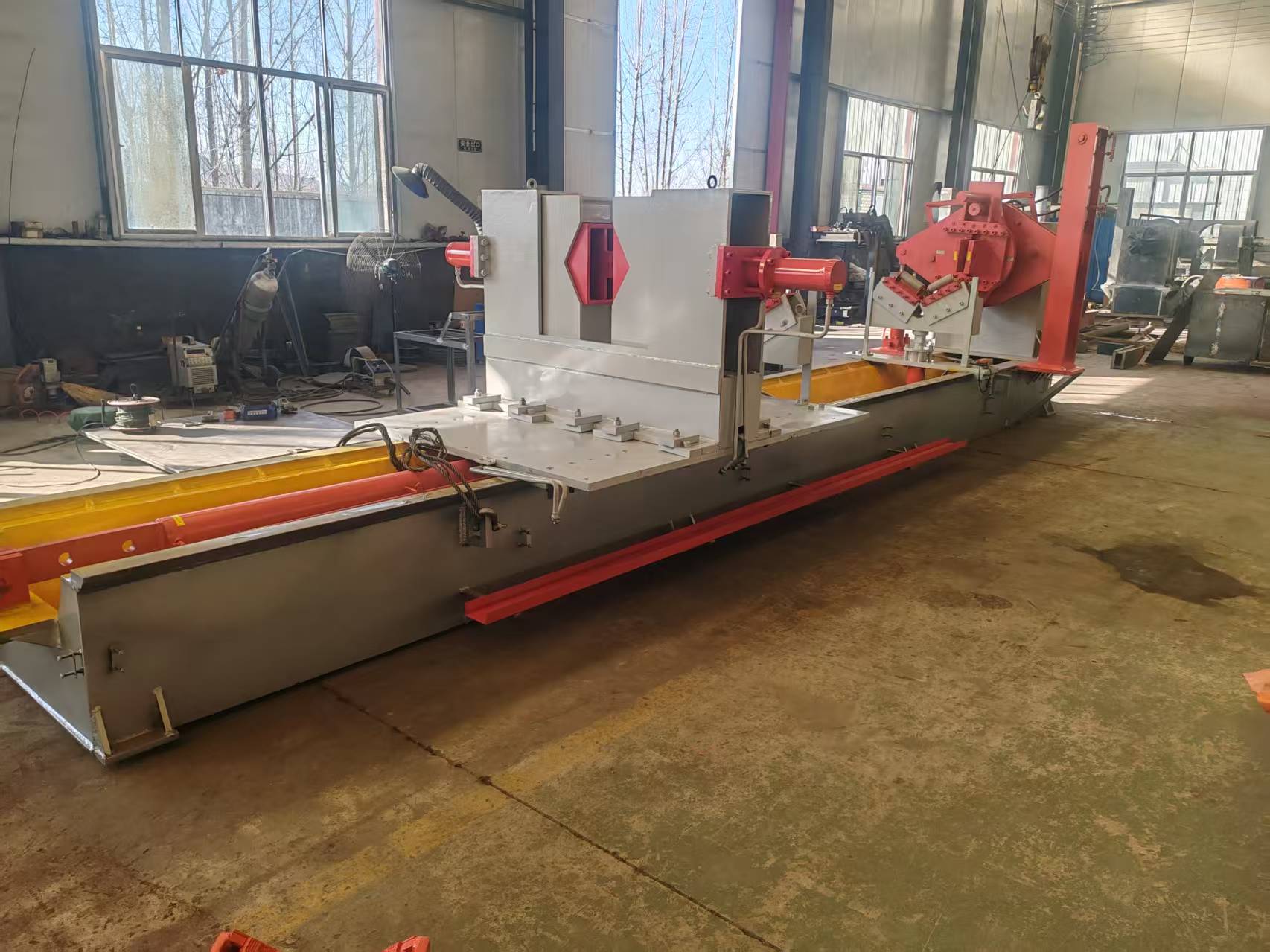

4. The principal shape of the gear consists of a high-strength welded physique and a clamping sliding device. The transmission machine consists of a connecting curler assembly, a chuck mechanism and a hydraulic motor transmission device. It cooperates with the hydraulic running gadget and the smart electrical manage device to gain specific control. All factors are designed and manufactured in accordance with mining gear standards.![Mid-level Horizontal Cylinder Servicing Workstation]( "Mid-level Horizontal Cylinder Servicing Workstation")
5. This product strictly complies with the MT/T 98-2006 mining hydraulic assist renovation tools wellknown requirements. On the foundation of protecting the technical benefits of the unique model, the gear overall performance is expanded thru structural optimization and revolutionary design, offering an environment friendly and dependable specific answer for the protection of coal mine complete mining equipment.Technical parameters:
Hydraulic Drive Motor
18.5KW -4 stage
Motor Disassembly Torque
30000N.m
Total Flow of Hydraulic Motor
56L/min
Pumping Station Pressure
31.5Mpa
Motor Working Pressure
25Mpa
Afterburner Torque
300000N.m
Maximum Thrust of The Clamping Cylinder
265KN
Maximum Pulling Force
180KN
Disassemble The Bore
50-500
Translational Cylinder Stroke
2100mm
Secondary Cylinder Clamping
V-shaped tooth plate clamping
How it Works
Control valve/button electric control/remote control
Dimensions
7000×2400×1700mm
Product configuration:
Name
Model
Quantity
Motor
18.5KW
1 unit
Hydraulic Motor
HZKY-01-001
1 unit
Oil Pump
HZKY-01-002
1 unit
Control Valves
HZKY-01-003
8 groups
Afterburner Cylinders
HZKY-01-004
2 pcs
Tighten Up Left and Right
HZKY-01-005
2 pcs
Auxiliary Cylinders
HZKY-01-006
1 pc
High-pressure Hose
34 articles
5. This product strictly complies with the MT/T 98-2006 mining hydraulic assist renovation tools wellknown requirements. On the foundation of protecting the technical benefits of the unique model, the gear overall performance is expanded thru structural optimization and revolutionary design, offering an environment friendly and dependable specific answer for the protection of coal mine complete mining equipment.
