Best Hydraulic Cylinder Repair Machine
Disassembling large cylinders is a process that often requires heavy work and specialized equipment
1. Sturdy full-length table design
2, Vehicle skateboard and height adjustable chain fastening tool
3. PLC control display HMI
4. Integrated cylinder pressure test function
5. True "single operator" function
6. Affordable tools
7. The machine cost is low, the whole vehicle cost is low, and the installation is easy

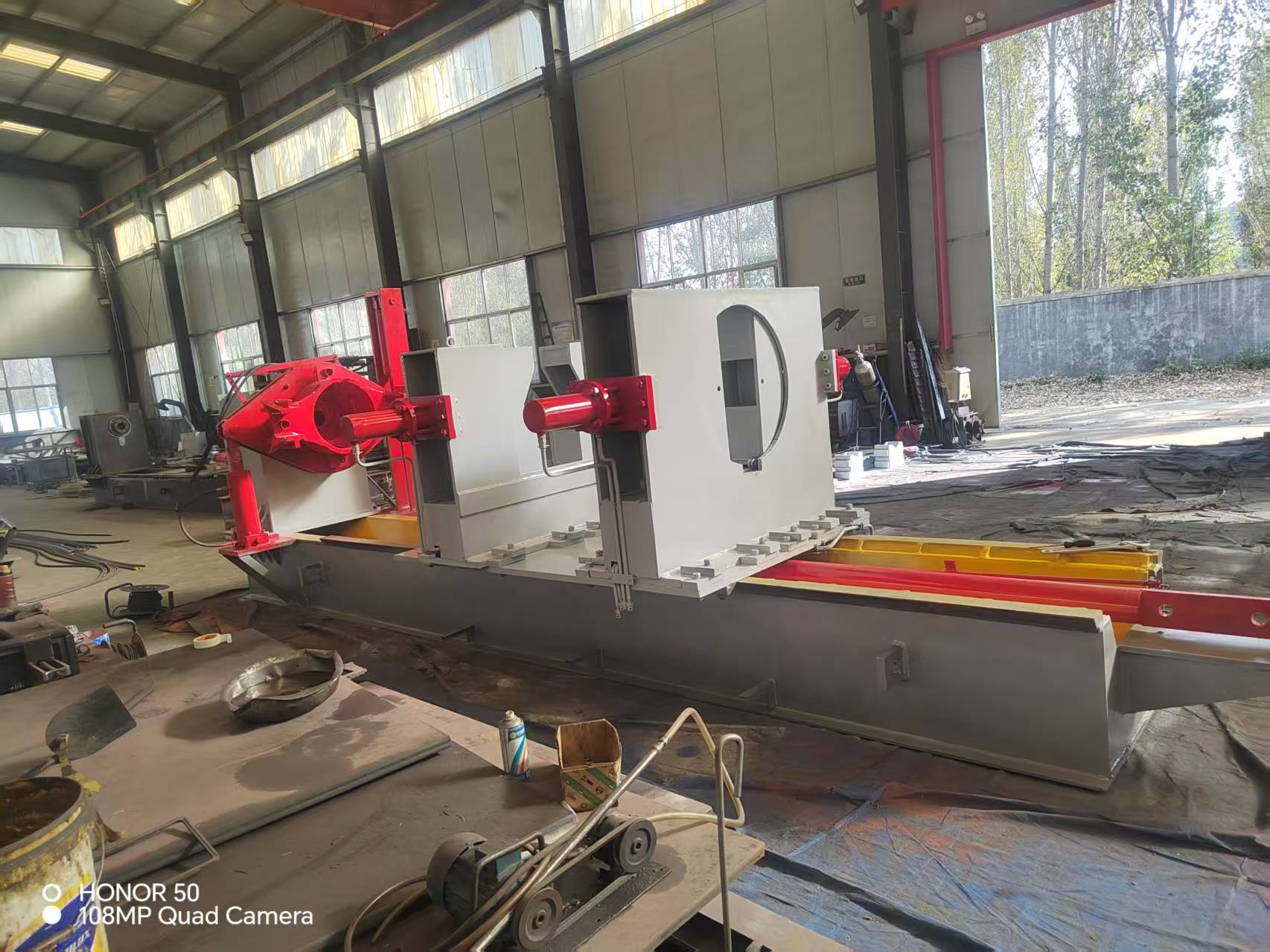

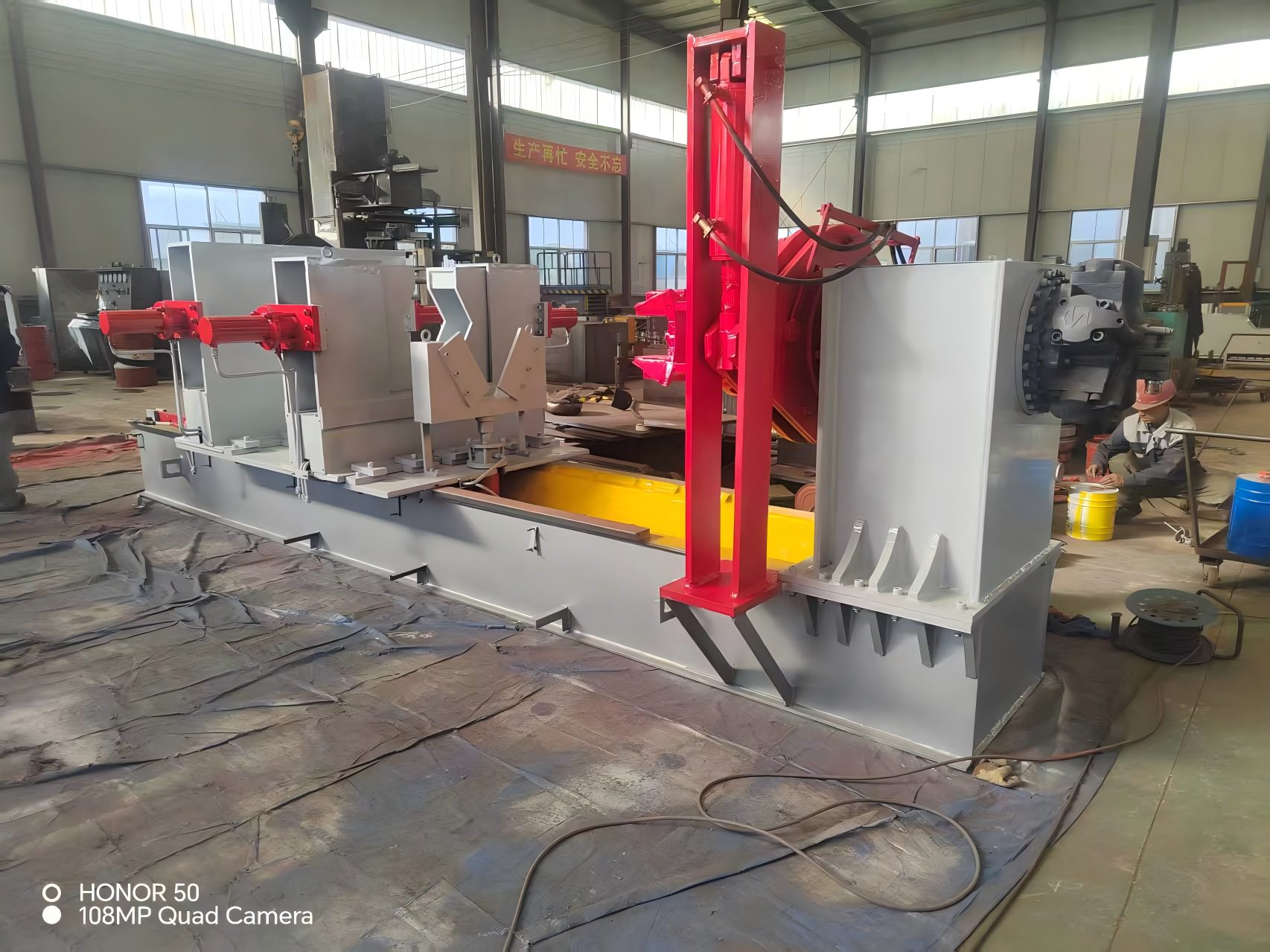

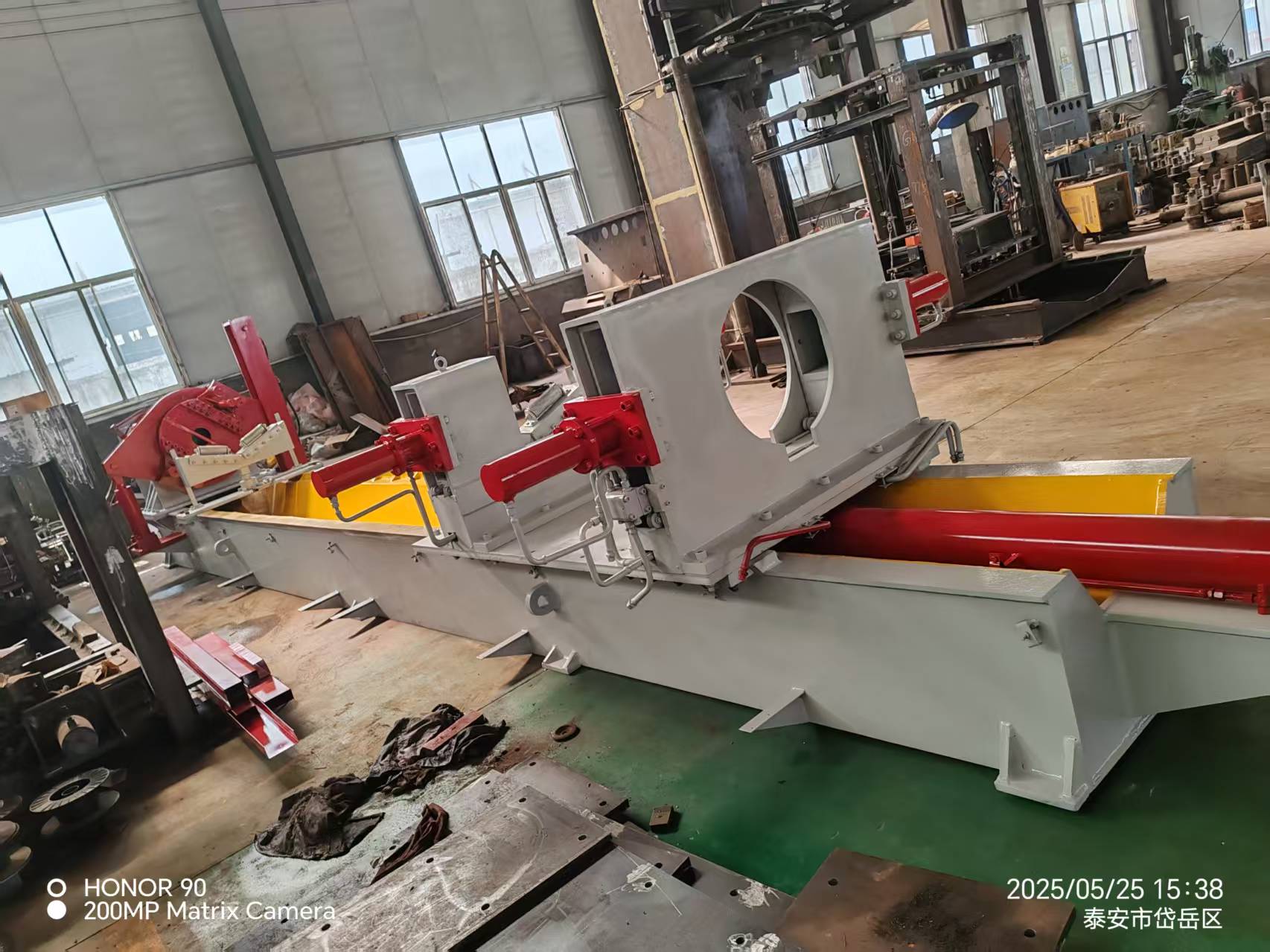

China Hydraulic Cylinder Repair Machine:
China Hydraulic Cylinder Repair Machine is a professional equipment specially designed for hydraulic cylinder detection, maintenance and performance test.
Precautions for use:
1.Check earlier than operation
Hydraulic system: verify that the oil degree and temperature are regular (generally 40-60 ℃), and the filtering accuracy shall attain ISO 4406 16/13 or NAS 7 to keep away from impurities unfavorable the pump valve.
Electrical system: test the features of motor grounding and emergency cease buttons to make certain that the insulation resistance of manipulate circuit is ≥ 1M Ω.
Mechanical structure: test the fastening bolts of vertical frame, connecting rod, sliding block and different components to keep away from take a look at deviation brought about by means of looseness.
2.Test Procedure Specification
Load matching: pick out the load hydraulic cylinder specification in accordance to the rated stress of the examined hydraulic cylinder to keep away from overpressure take a look at (the most strain generally does no longer exceed 35MPa).
Slowly pressurize: first of all habits no-load circulation at some stage in startup, exhaust the machine air, and then step by step amplify the stress to the check fee to stop the strain shock from unfavourable the sensor.
Data record: report the pressure, pressure and displacement curves in actual time throughout the test, pay interest to the friction mutation point, and choose the country of the seal or piston.
Technical parameters:
Hydraulic Drive Motor | 18.5KW -4 stage |
Motor Disassembly Torque | 30000N.m |
Total Flow of Hydraulic Motor | 56L/min |
Pumping Station Pressure | 31.5Mpa |
Motor Working Pressure | 25Mpa |
Afterburner Torque | 300000N.m |
Maximum Thrust of The Clamping Cylinder | 265KN |
Maximum Pulling Force | 180KN |
Disassemble The Bore | 50-500 |
Translational Cylinder Stroke | 2100mm |
Secondary Cylinder Clamping | V-shaped tooth plate clamping |
How it Works | Control valve/button electric control/remote control |
Dimensions | 7000×2400×1700mm |
Product configuration:
| Name | Model | Quantity |
| Motor | 18.5KW | 1 unit |
| Hydraulic Motor | HZKY-01-001 | 1 unit |
| Oil Pump | HZKY-01-002 | 1 unit |
| Control Valves | HZKY-01-003 | 8 groups |
| Afterburner Cylinders | HZKY-01-004 | 2 pcs |
| Tighten Up Left and Right | HZKY-01-005 | 2 pcs |
| Auxiliary Cylinders | HZKY-01-006 | 1 pc |
| High-pressure Hose | 34 articles |
