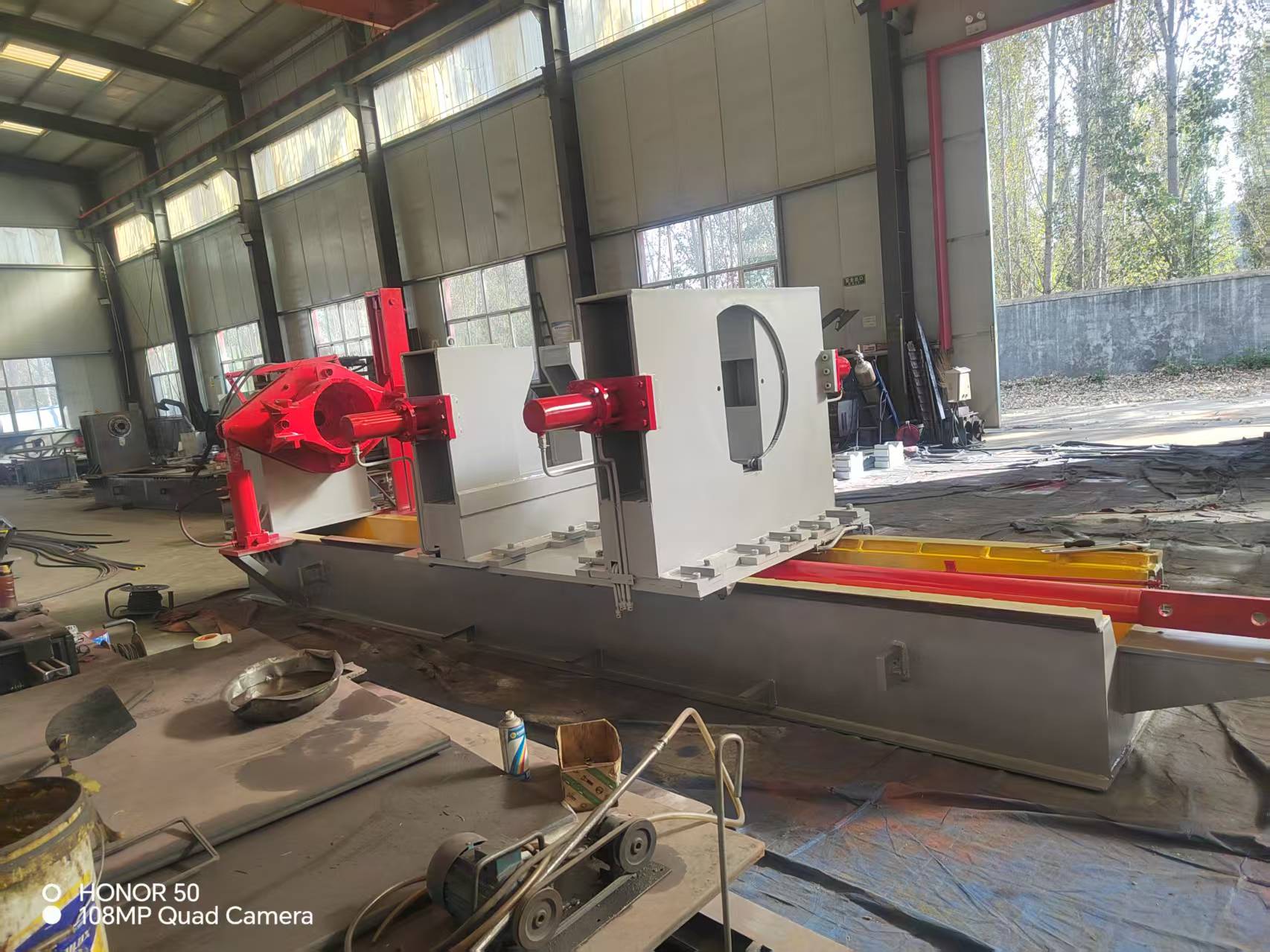

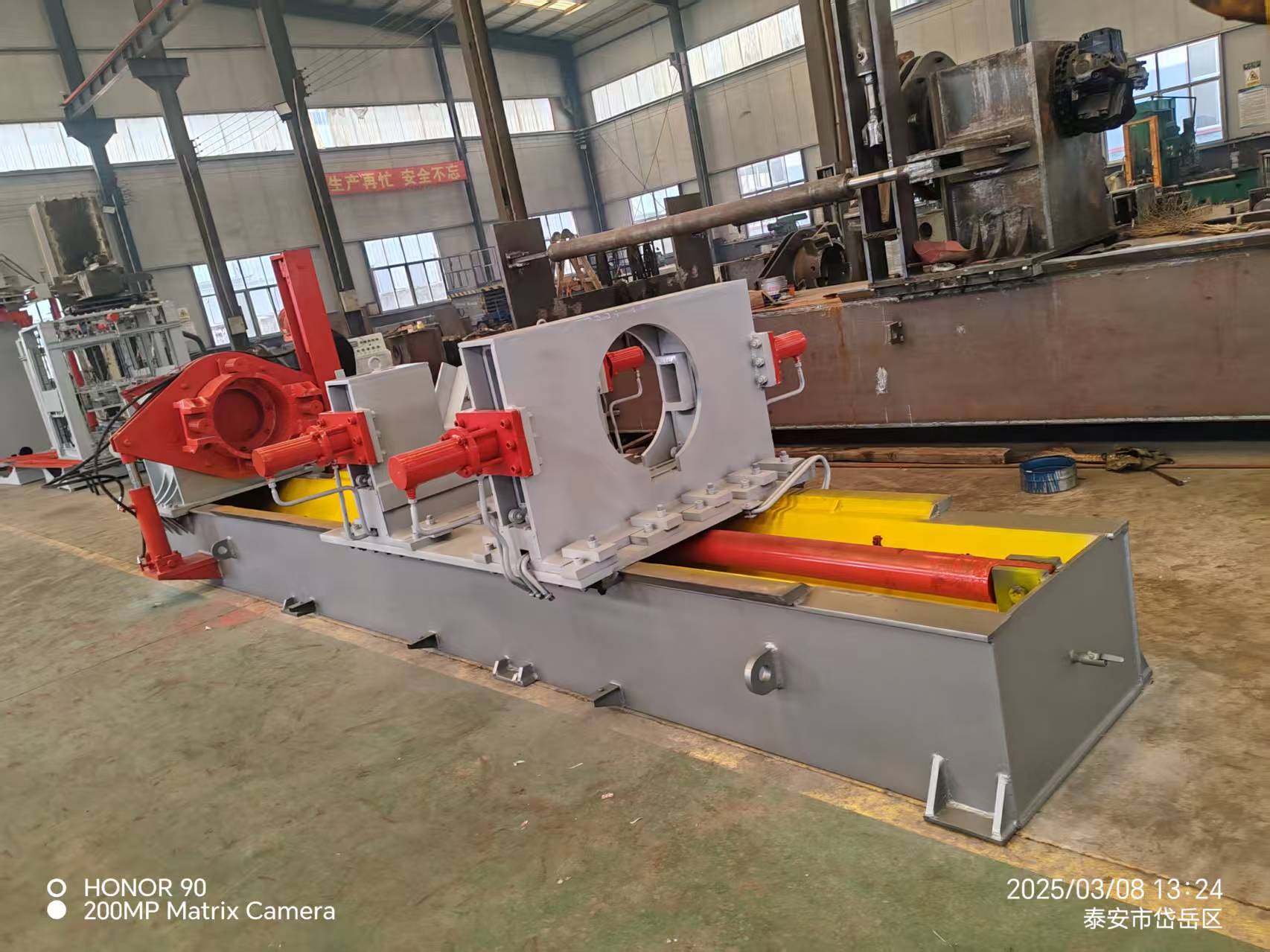

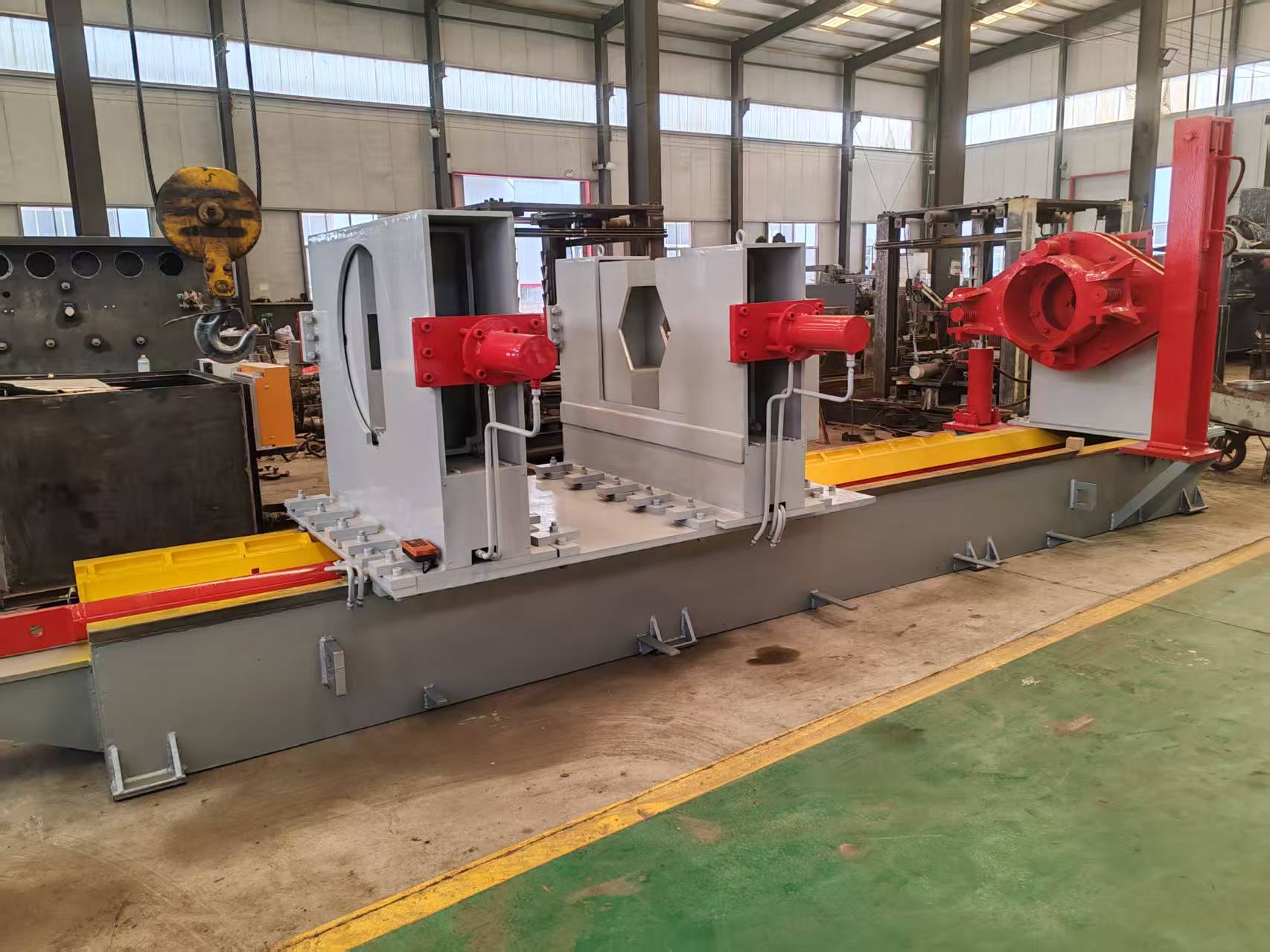

High-quality Hydraulic Cylinder Repair Machine
Disassembling large cylinders is a process that often requires heavy work and specialized equipment
1. Sturdy full-length table design
2, Vehicle skateboard and height adjustable chain fastening tool
3. PLC control display HMI
4. Integrated cylinder pressure test function
5. True "single operator" function
6. Affordable tools
7. The machine cost is low, the whole vehicle cost is low, and the installation is easy
China Hydraulic Cylinder Repair Machine:
China Hydraulic Cylinder Repair Machine is a professional equipment specially designed for hydraulic cylinder detection, maintenance and performance test.
Precautions for use:
1.Safety protection measures
Personnel protection: Operators shall wear safety helmets, goggles and anti-smashing shoes, and shall not be close to the moving parts of hydraulic cylinder during the test.
Equipment protection: install a protective cover to prevent the hydraulic cylinder from flying out or the parts from collapsing and hurting people; Warning signs shall be set around the test bench to define a safe area.
Emergency treatment: overflow valve, pressure relay and other safety devices are equipped to automatically release pressure when the pressure exceeds the set value; Ground wire shall be connected to the test bench to prevent fire caused by static electricity.
2.Maintenance and Care
Daily cleaning: clean the oil stain and metal chips after daily operation to prevent impurities from entering the hydraulic system.
Regular maintenance: replace the hydraulic oil filter element every 500 hours and the hydraulic oil every 2000 hours; Check the accuracy of the sensor and calibrate the pressure gauge and pull pressure sensor.
Long-term shutdown protection: if the equipment is idle for more than 1 month, drain the hydraulic oil, clean the pipeline and apply the anti-rust oil to prevent the parts from rusting.
Technical parameters:
Hydraulic Drive Motor | 18.5KW -4 stage |
Motor Disassembly Torque | 30000N.m |
Total Flow of Hydraulic Motor | 56L/min |
Pumping Station Pressure | 31.5Mpa |
Motor Working Pressure | 25Mpa |
Afterburner Torque | 300000N.m |
Maximum Thrust of The Clamping Cylinder | 265KN |
Maximum Pulling Force | 180KN |
Disassemble The Bore | 50-500 |
Translational Cylinder Stroke | 2100mm |
Secondary Cylinder Clamping | V-shaped tooth plate clamping |
How it Works | Control valve/button electric control/remote control |
Dimensions | 7000×2400×1700mm |
Product configuration:
| Name | Model | Quantity |
| Motor | 18.5KW | 1 unit |
| Hydraulic Motor | HZKY-01-001 | 1 unit |
| Oil Pump | HZKY-01-002 | 1 unit |
| Control Valves | HZKY-01-003 | 8 groups |
| Afterburner Cylinders | HZKY-01-004 | 2 pcs |
| Tighten Up Left and Right | HZKY-01-005 | 2 pcs |
| Auxiliary Cylinders | HZKY-01-006 | 1 pc |
| High-pressure Hose | 34 articles |
