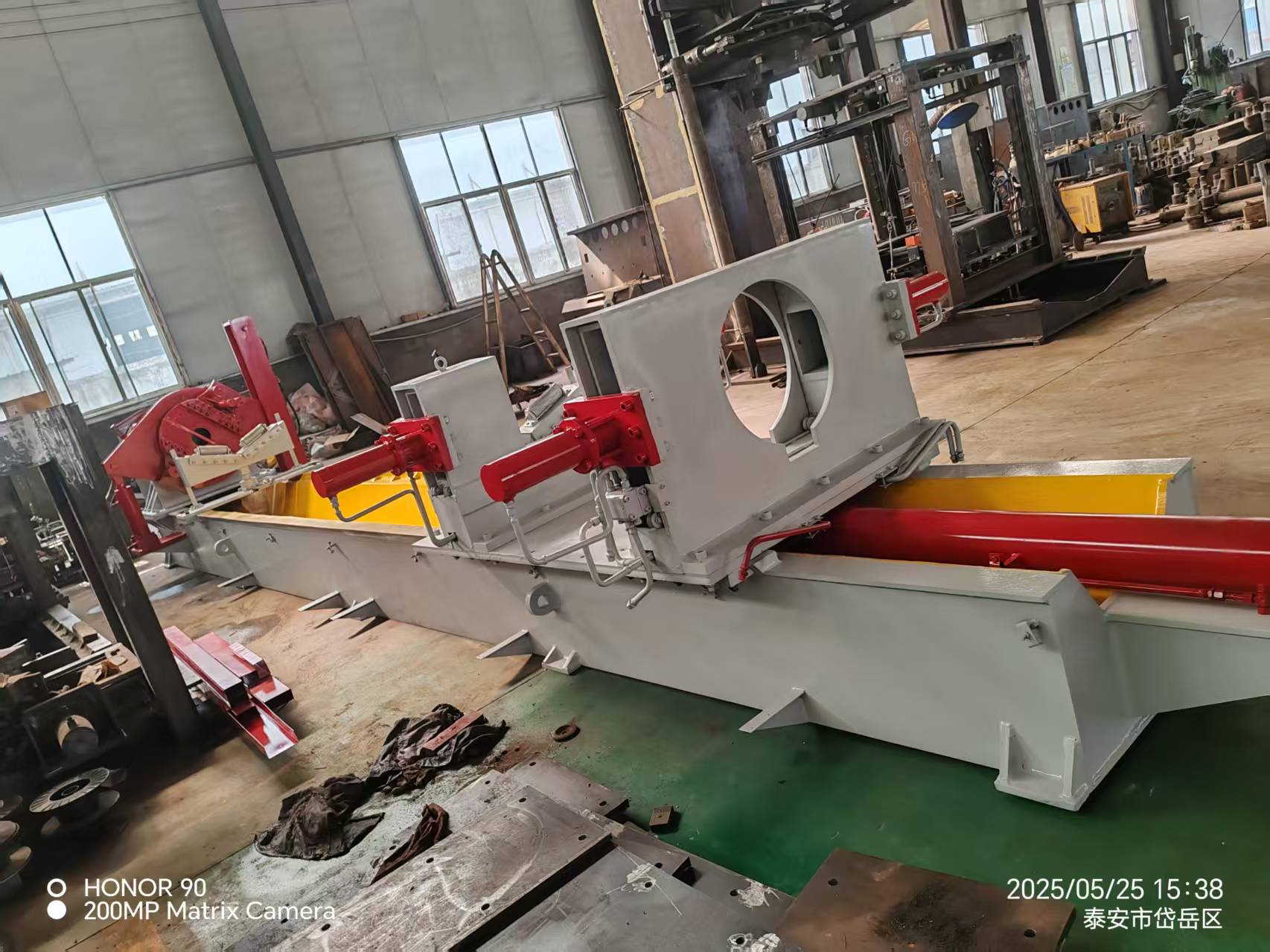

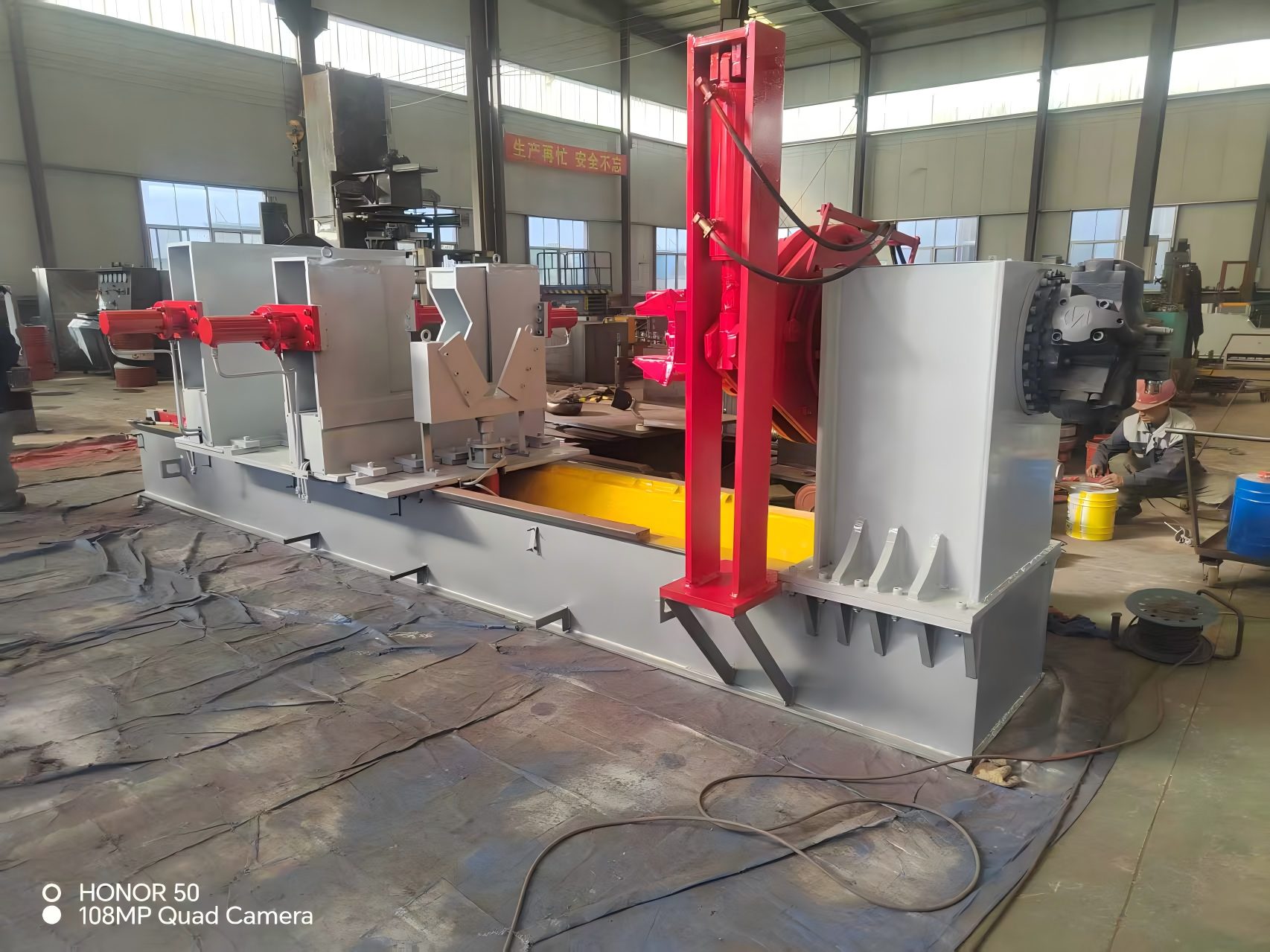

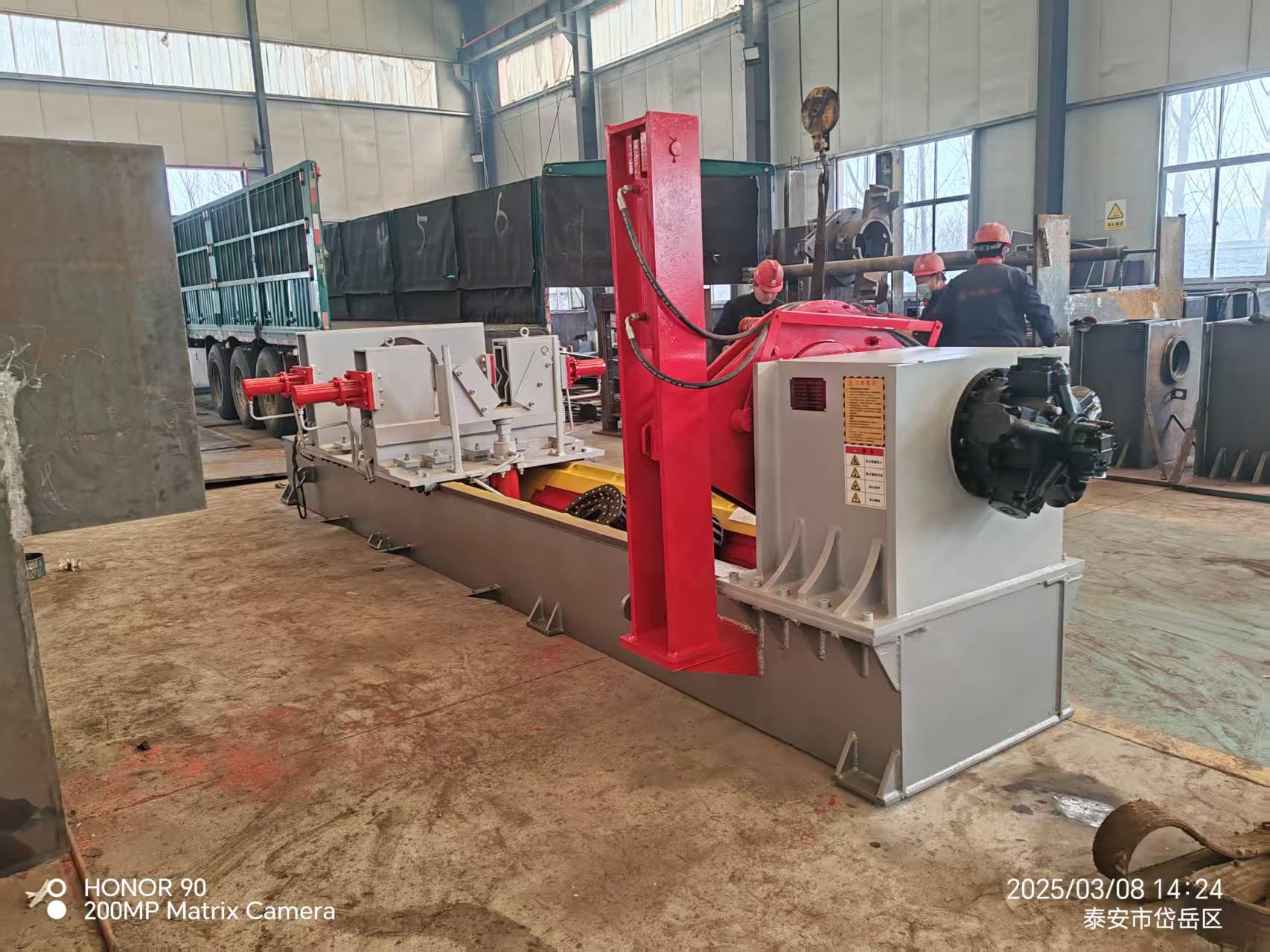

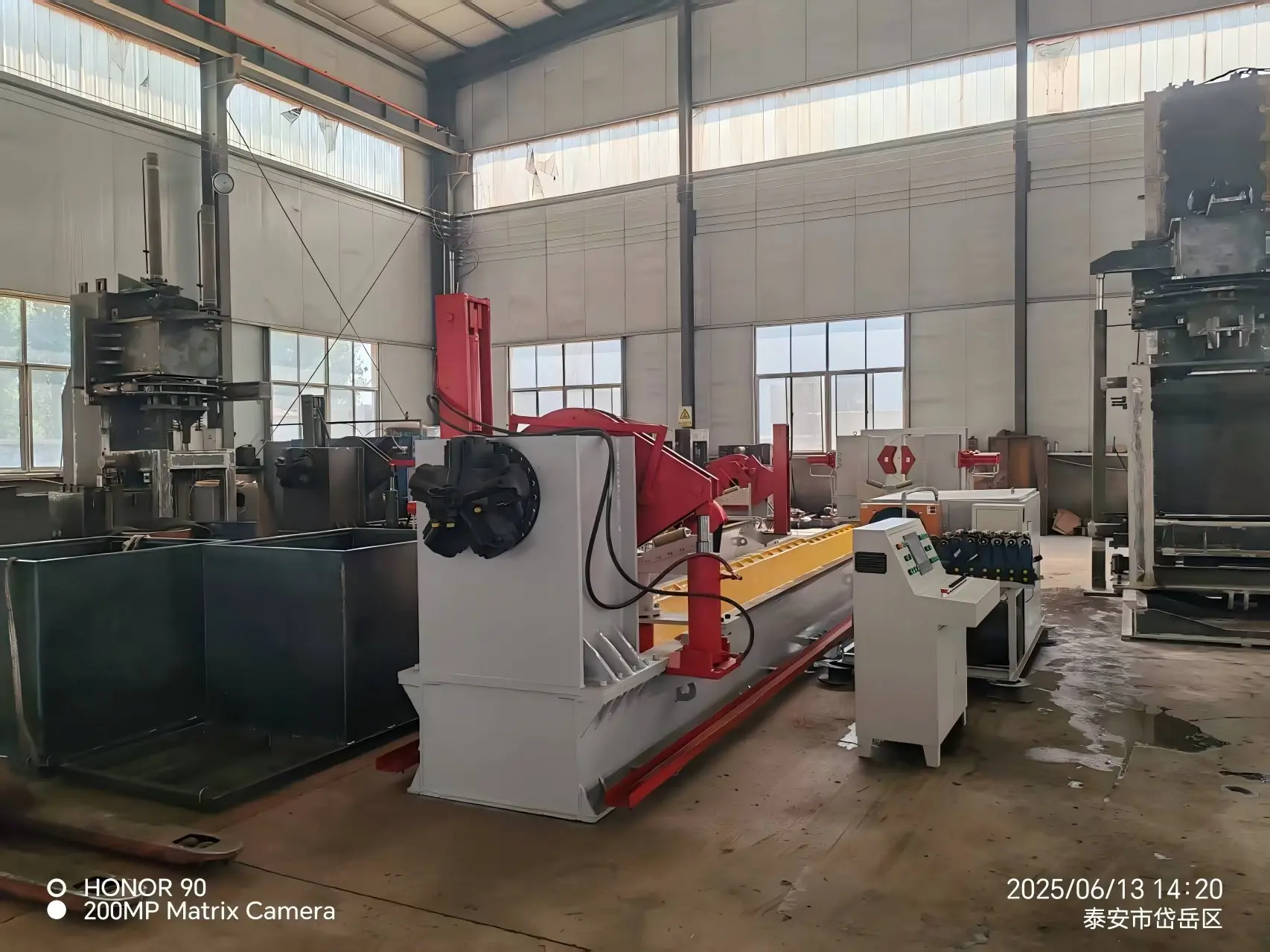

Customized Hydraulic Disassembly And Assembly Bench
Disassembling large cylinders is a process that often requires heavy work and specialized equipment
1. Sturdy full-length table design
2, Vehicle skateboard and height adjustable chain fastening tool
3. PLC control display HMI
4. Integrated cylinder pressure test function
5. True "single operator" function
6. Affordable tools
7. The machine cost is low, the whole vehicle cost is low, and the installation is easy
Customized Hydraulic Disassembly And Assembly Bench:
Customized Hydraulic Disassembly And Assembly Bench is a professional equipment specially designed for hydraulic cylinder detection, maintenance and performance test.
Precautions for use:
Safety safety measures
Personnel protection: Operators shall put on protection helmets, goggles and anti-smashing shoes, and shall no longer be shut to the transferring components of hydraulic cylinder for the duration of the test.
Equipment protection: installation a protecting cowl to forestall the hydraulic cylinder from flying out or the components from collapsing and hurting people; Warning signs and symptoms shall be set round the take a look at bench to outline a secure area.
Emergency treatment: overflow valve, strain relay and different protection units are outfitted to robotically launch strain when the strain exceeds the set value; Ground wire shall be linked to the check bench to forestall furnace prompted with the aid of static electricity.
Maintenance and Care
Daily cleaning: easy the oil stain and steel chips after every day operation to forestall impurities from coming into the hydraulic system.
Regular maintenance: exchange the hydraulic oil filter thing each five hundred hours and the hydraulic oil each 2000 hours; Check the accuracy of the sensor and calibrate the stress gauge and pull stress sensor.
Long-term shutdown protection: if the gear is idle for extra than 1 month, drain the hydraulic oil, easy the pipeline and observe the anti-rust oil to stop the components from rusting.
Technical parameters:
Hydraulic Drive Motor | 18.5KW -4 stage |
Motor Disassembly Torque | 30000N.m |
Total Flow of Hydraulic Motor | 56L/min |
Pumping Station Pressure | 31.5Mpa |
Motor Working Pressure | 25Mpa |
Afterburner Torque | 300000N.m |
Maximum Thrust of The Clamping Cylinder | 265KN |
Maximum Pulling Force | 180KN |
Disassemble The Bore | 50-500 |
Translational Cylinder Stroke | 2100mm |
Secondary Cylinder Clamping | V-shaped tooth plate clamping |
How it Works | Control valve/button electric control/remote control |
Dimensions | 7000×2400×1700mm |
Product configuration:
| Name | Model | Quantity |
| Motor | 18.5KW | 1 unit |
| Hydraulic Motor | HZKY-01-001 | 1 unit |
| Oil Pump | HZKY-01-002 | 1 unit |
| Control Valves | HZKY-01-003 | 8 groups |
| Afterburner Cylinders | HZKY-01-004 | 2 pcs |
| Tighten Up Left and Right | HZKY-01-005 | 2 pcs |
| Auxiliary Cylinders | HZKY-01-006 | 1 pc |
| High-pressure Hose | 34 articles |
