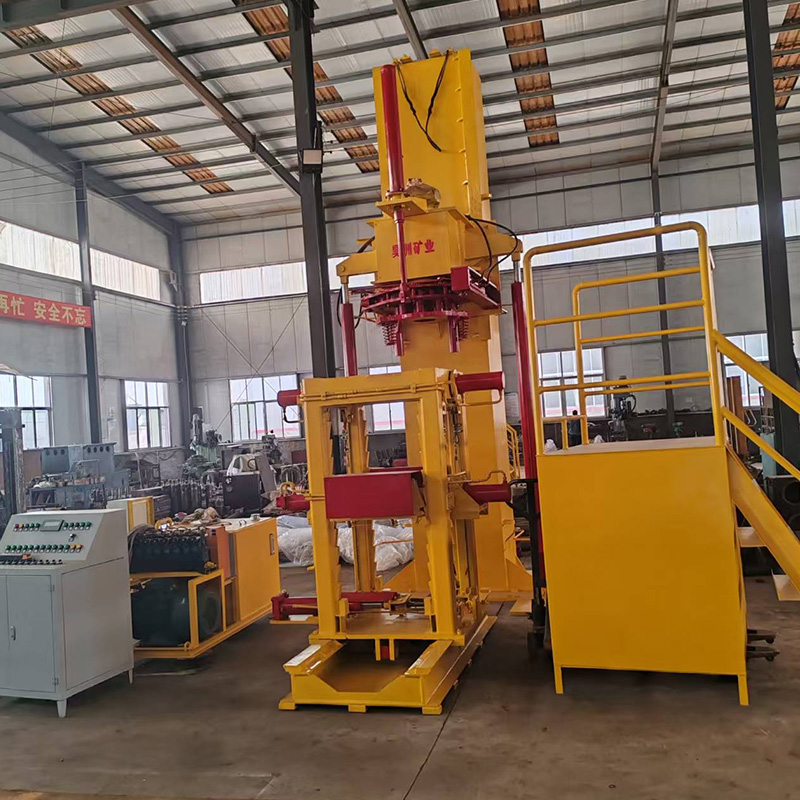

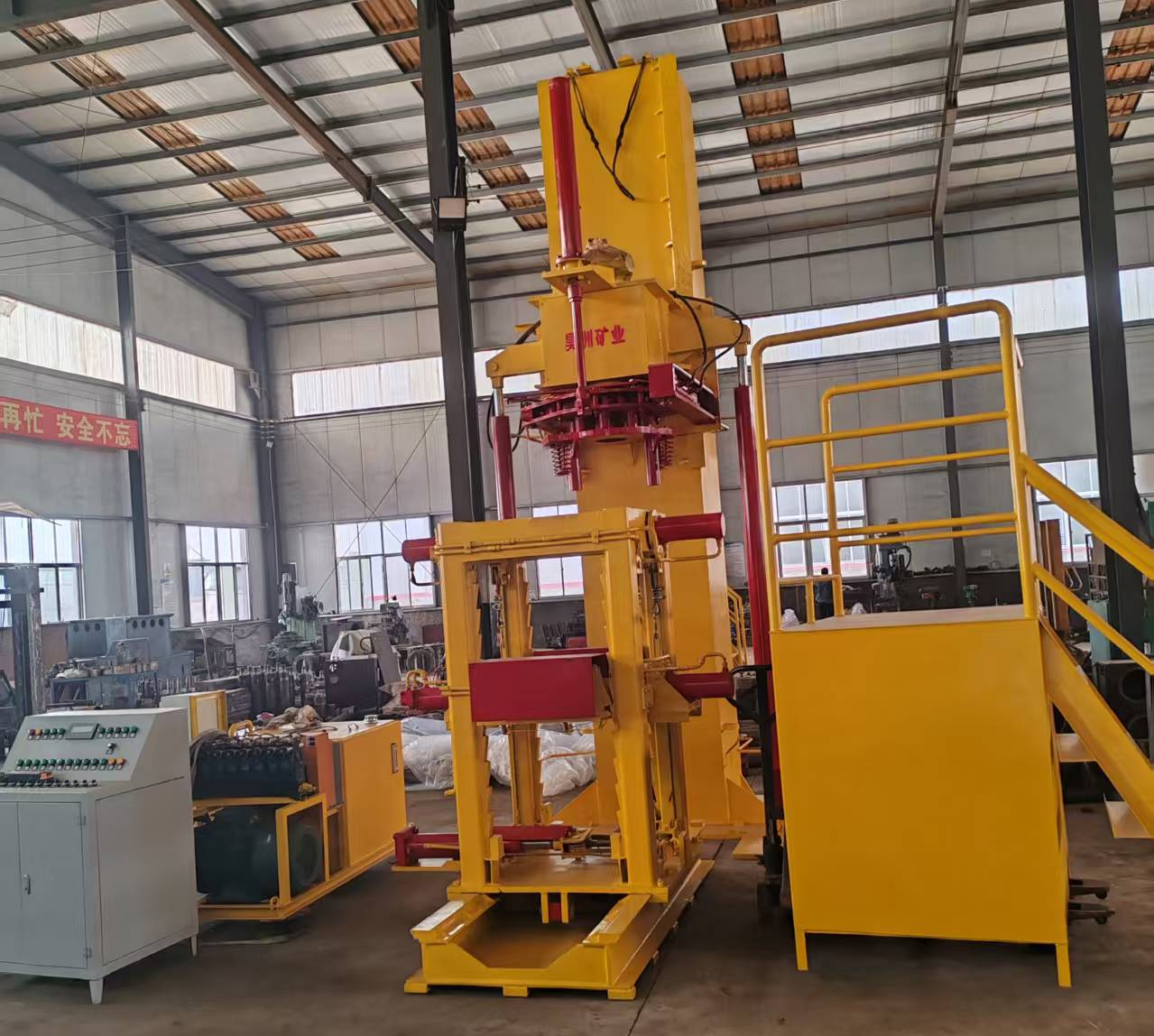

Vertical Cylinder Disassembling and Assembling Machine
High Torque & Speed Control: 20,000 N.m hydraulic motor with stepless speed adjustment
Hydraulic Automation: Auto-clamping reduces labor and boosts efficiency
Wide Compatibility: Handles cylinders up to Ø320mm×2,500mm
Extreme Force Output: 227,286 N.m cylinder for heavy-duty tasks
Dual Control: Button + remote for flexible operation
Product Introduction
The vertical cylinder disassembling and assembling machine is a specialized device designed for cylinder production and repair manufacturers. It mainly consists of the machine body, front and rear trolley movement device, spindle box, worktable, column fixing device, clamping device, hydraulic system, and electrical control system.
Technical Features
The vertical cylinder disassembling and assembling machine adopts a low-speed, high-torque hydraulic motor for rotational movement and a hydraulic cylinder for pushing and pulling actions. It can complete the assembly and disassembly of various types of columns, especially the disassembly of threaded guide sleeves. The rotation speed can be adjusted steplessly, and the trolley can move forward and backward. The clamping device uses hydraulic transmission for automatic positioning and clamping, which not only facilitates workpiece loading but also significantly reduces the labor intensity of disassembly and assembly work. It improves the quality and efficiency of disassembly and assembly, making it an ideal column disassembling and assembling equipment.
Technical Parameters
Model | LCGD-320 |
Motor Power (KW) | 18.5 |
System Working Pressure (MPa) | 25 |
Motor Working Pressure (MPa) | 16 |
Pump Flow Rate (L/min) | 46 |
Motor Torque (N.m) | 20,000 |
Torque Adjustment | Proportional relief valve |
Force Cylinder Torque (N.m) | 227,286 |
Applicable Cylinder Bore (mm) | ≤320 |
Applicable Cylinder Length (mm) | ≤2,500 |
Control Method | Button + Remote |
Paint Color | Yellow + Red |
