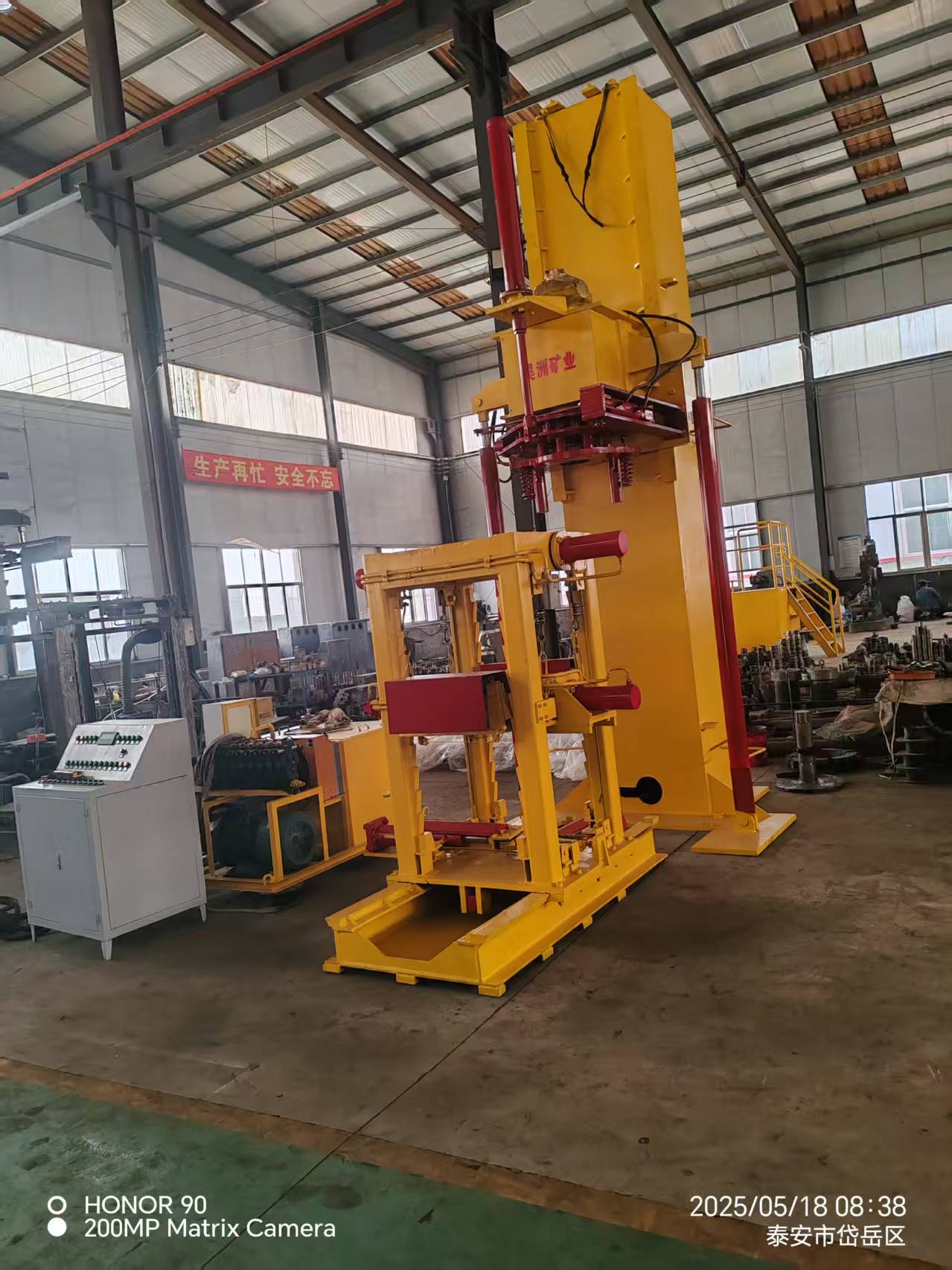

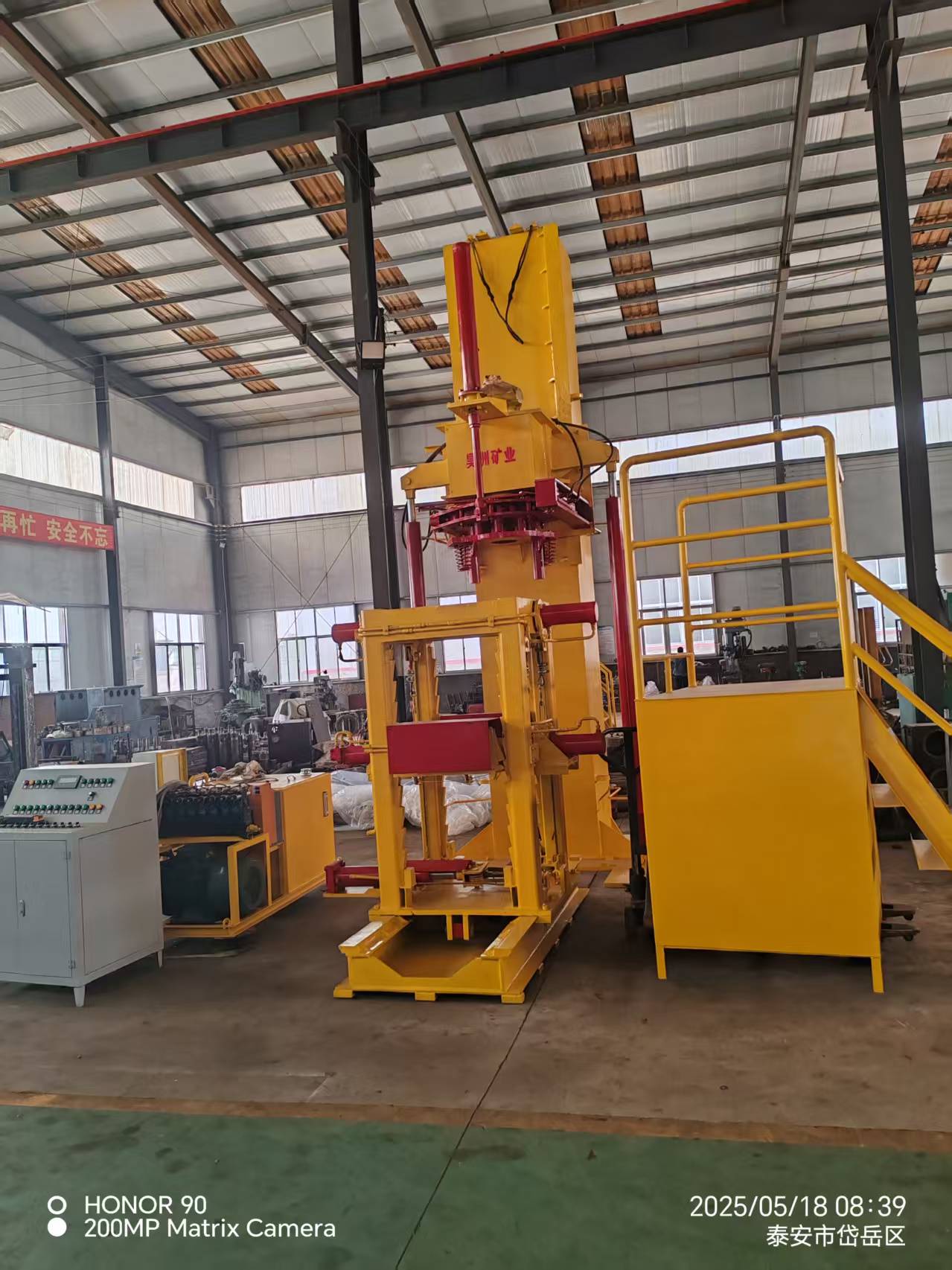

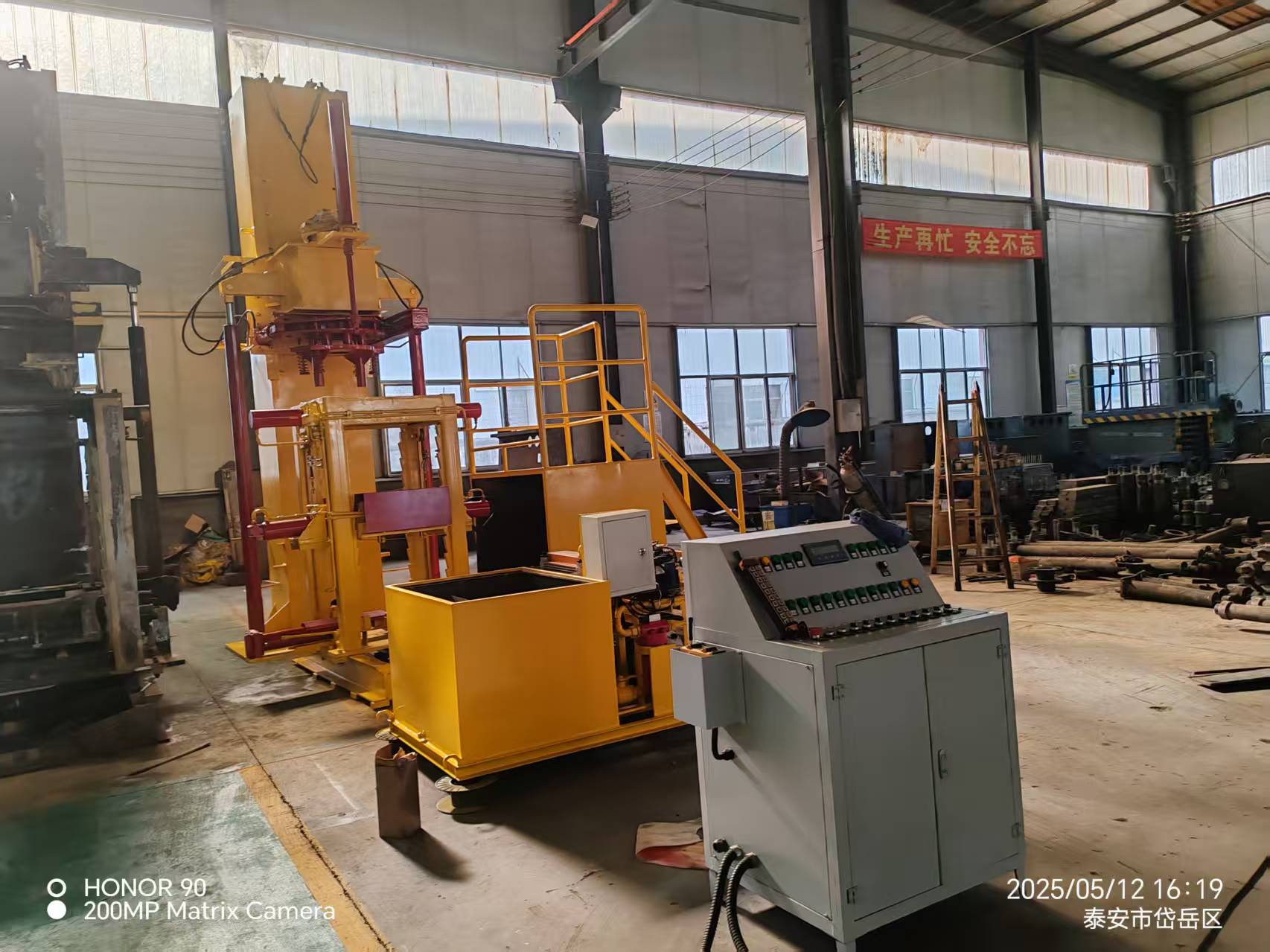

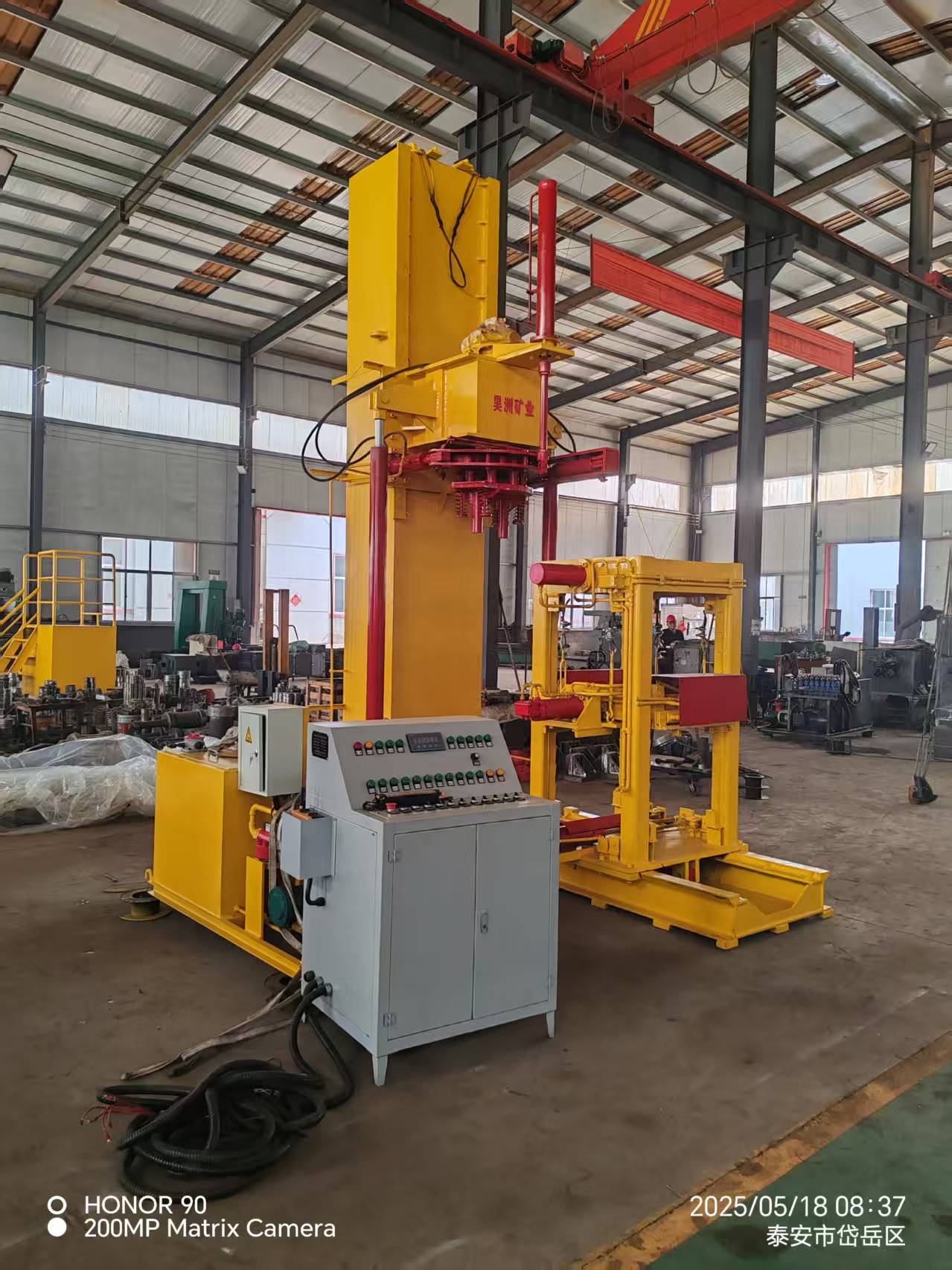

Vertical Hydraulic Cylinder Servicing Platform
1. Hydraulic drive disassembly and assembly: It adopts low-speed high-torque hydraulic motor and hydraulic cylinder to realize stepless speed regulation and precise pressing and pulling of the column, which is particularly suitable for disassembly and assembly of threaded guide sleeves.
2. Vertical modular design: It consists of L-shaped frame, spindle drive, lifting mechanism, hydraulic clamping, etc., and integrates support cylinder, pressure cylinder and moving device, which is convenient and stable to operate.
3. Automatic and efficient operation: Hydraulic automatic clamping and rapid positioning significantly reduce labor intensity, improve disassembly and assembly efficiency and quality, and is an ideal equipment for column maintenance.
1. The Vertical Hydraulic Cylinder Servicing Platform disassembly and meeting computer makes use of a low-speed, high-torque hydraulic motor for rotation and a hydraulic cylinder for urgent and pulling. It can entire the meeting and disassembly of quite a number sorts of columns, particularly the disassembly of threaded information sleeves. The rotation velocity can be adjusted steplessly.
2. This computer is a vertical structure, consisting of an "L"-shaped frame, a spindle container transmission mechanism and a lifting device, a column fixing device, a trolley transferring device, a helping cylinder device, a strain cylinder device, a base hydraulic clamping device, a hydraulic gadget and an electrical manage part.
3. The clamping machine makes use of hydraulic transmission to routinely function and clamp, which is handy for the clamping of workpieces, extensively reduces the labor depth of disassembly and assembly, and improves the first-rate and effectivity of disassembly and assembly. It is an perfect column disassembly and meeting equipment.
Technical Parameters：
| Dismantling column specifications | Cylinder diameter ≤500mm |
| Applicable cylinder length | ≤2500mm; |
| Motor dismantling torque | 30000N.m |
| Addition cylinder torque | 300000N.m |
| Motor power | 18.5kW |
| Flow rate | 56L/min |
| System pressure | 25Mpa |
| External dimensions (L×W×H) | 5×2.35×5.2m (underground part 1.7m) |
| Feeding trolley forward and backward travel distance | 1600mm |
| Dismantling cylinder stroke | 1200-2200mm |
| Clamping cylinder stroke | 200mm |
| Clamping diameter range | ≤600mm |
| Base lifting | 800mm |
| Base | Automatic clamping |
| Operation method | Manual direction change operation |
| Weight | 14.5T |
Main Configurations：
| Name | Model | Number |
| Motor | 18.5KW | 1 unit |
| Hydraulic Motor | HZYZ7 | 1 unit |
| Oil Pump | 40MCY14-1B | 1 unit |
| Manipulator Valve | ZS1- L20E-80TYW | 11 sets |
| Acceleration Cylinder | ¢125 Stroke 250 mm | 2 units |
| Lift Motor Cylinder | ¢100 Stroke 2.1m | 2 units |
| Feeding Trolley Cylinder | ¢100 Stroke 1.6m | 1 unit |
| Lifting Trolley Cylinder | ¢100 Stroke 600mm | 1 unit |
| Right and Left Holding Cylinder | ¢80 Stroke 250 mm | 2 units |
| Right and Left Tightening | ¢100 Stroke 250mm | 2 units |
| Backstop Cylinder | ¢63 Stroke 60mm | 1 unit |
| High pressure hose | 64 bars |
