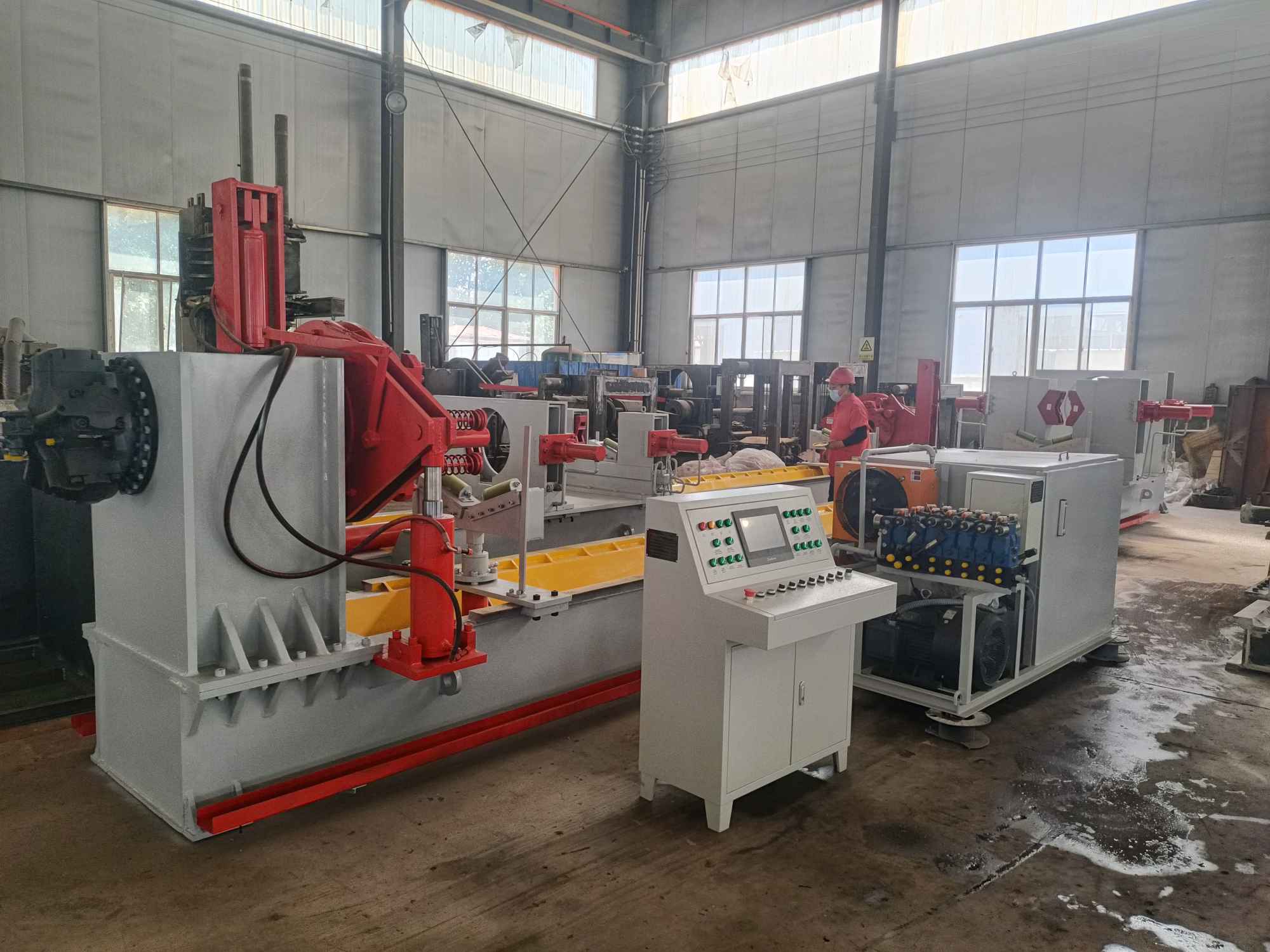

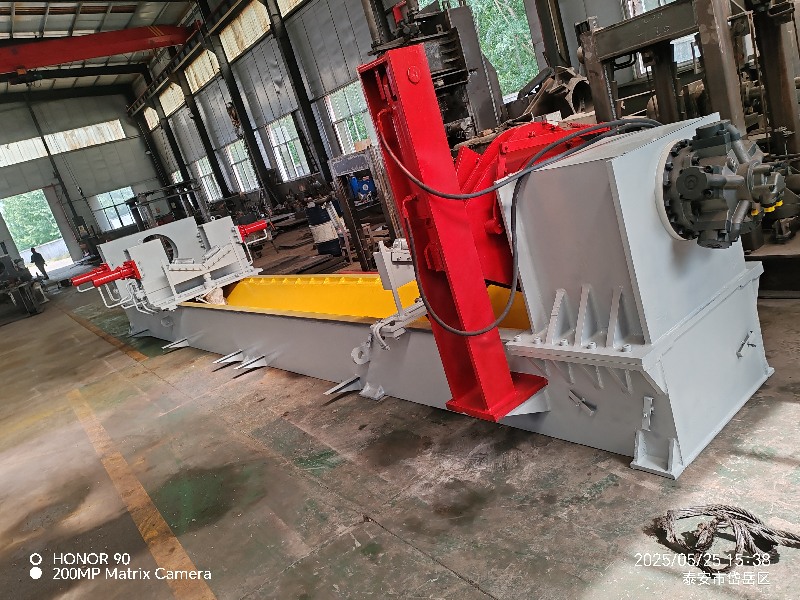

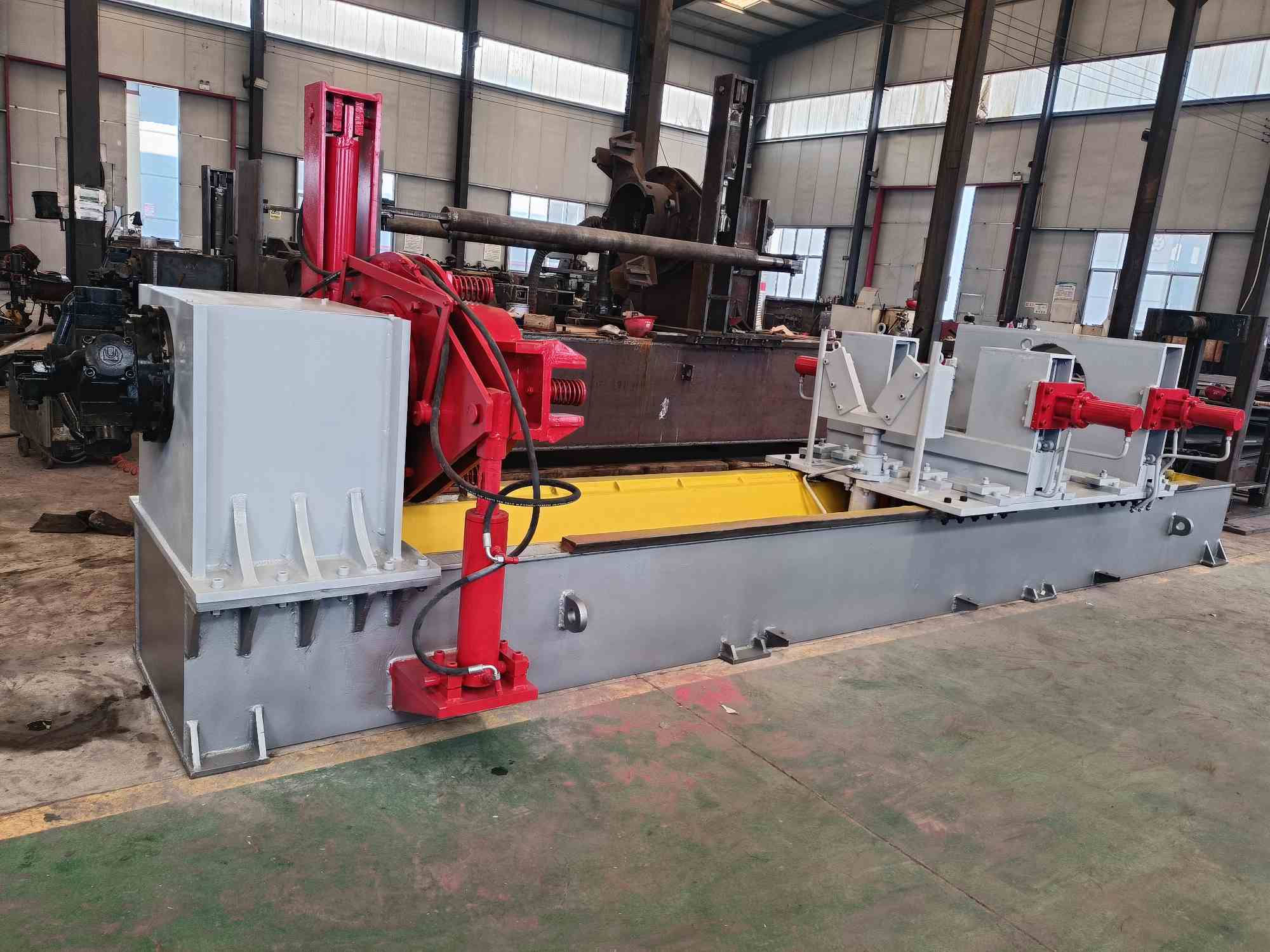

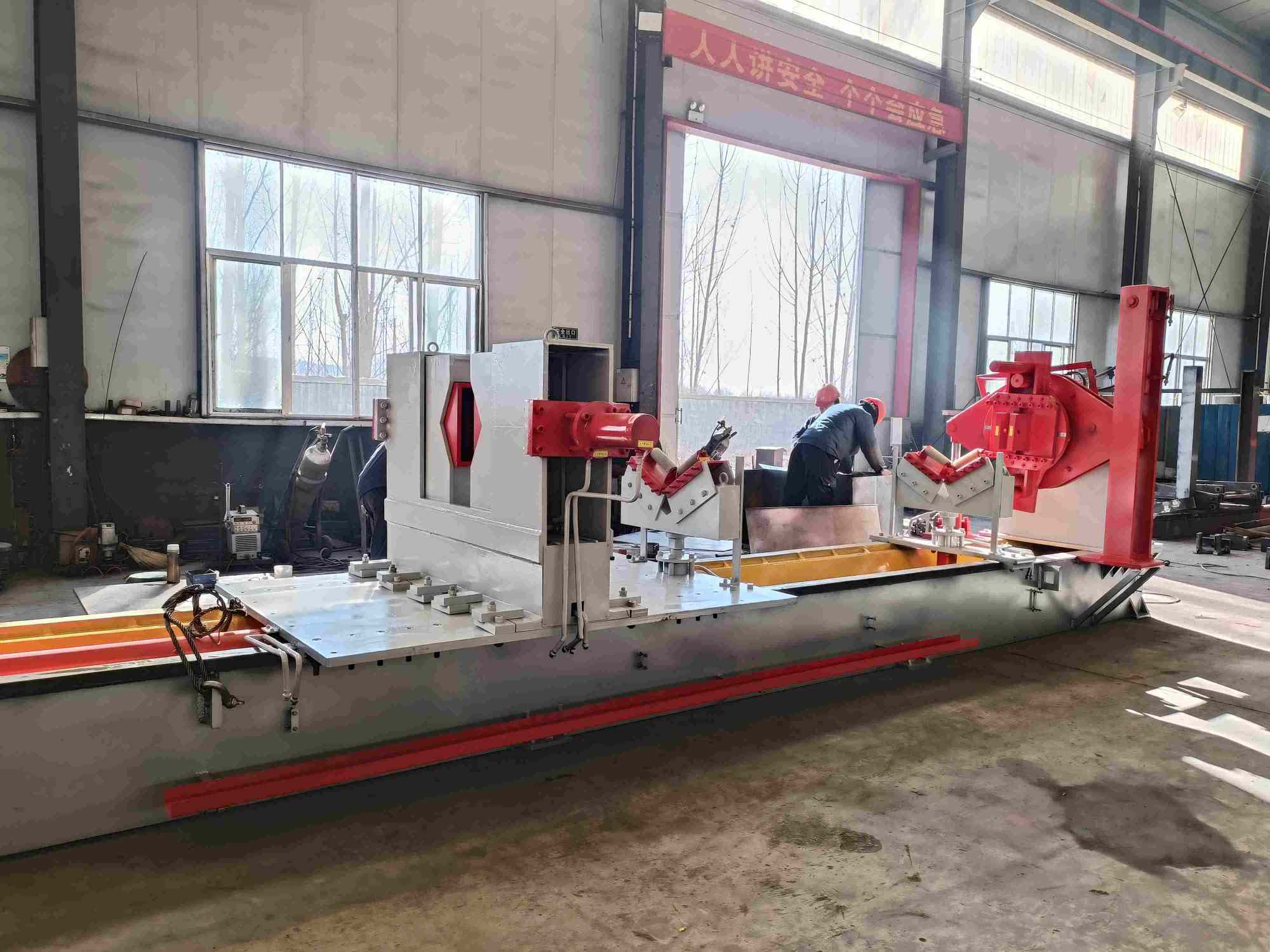

Horizontal Column Disassembly and Assembly Cylinder Machine
The horizontal column hydraulic jack cylinder disassembly machine is a specialized equipment designed for the disassembly and assembly of the hydraulic cylinders of coal mining comprehensive mining support. It has been improved in recent years based on prototype research and development, and it is widely applicable to various models of comprehensive mining equipment support cylinders with screw-connected end caps.
Multi-model compatibility：
It can be disassembled/assembled with different types of hydraulic support columns, jacks and other large threaded connectors to meet the diverse needs of mines
Precise torque control：
Constant torque tightening technology is used to ensure the firmness of the threaded assembly and avoid equipment failure caused by overtightening or loosening.
Efficient locking mechanism：
Self-positioning locking design: replace the traditional hydraulic clamping, simplify the structure, reduce the failure rate, and operate conveniently and with high reliability.
Safety hydraulics：
The use of mining emulsion as the medium is compatible with the mine's existing pumping station (the pumping station is designed to be separated from the main engine) and reduces maintenance costs.
The hydraulic components are made of common parts for mining, which is easy to replace and repair quickly
Multiple electrical protections：
Integrated overload, short circuit, and loss of voltage protection functions to ensure operation safety and equipment stability
Technical parameters:
Hydraulic Drive Motor | 18.5KW -4 stage |
Motor Disassembly Torque | 30000N.m |
Total Flow of Hydraulic Motor | 56L/min |
Pumping Station Pressure | 31.5Mpa |
Motor Working Pressure | 25Mpa |
Afterburner Torque | 300000N.m |
Maximum Thrust of The Clamping Cylinder | 265KN |
Maximum Pulling Force | 180KN |
Disassemble The Bore | 50-500 |
Translational Cylinder Stroke | 2100mm |
Secondary Cylinder Clamping | V-shaped tooth plate clamping |
How it Works | Control valve/button electric control/remote control |
Dimensions | 7000×2400×1700mm |
Product configuration:
Name | Model | Quantity |
Motor | 18.5KW | 1 unit |
Hydraulic Motor | HZKY-01-001 | 1 unit |
Oil Pump | HZKY-01-002 | 1 unit |
Control Valves | HZKY-01-003 | 8 groups |
Afterburner Cylinders | HZKY-01-004 | 2 pcs |
Tighten Up Left and Right | HZKY-01-005 | 2 pcs |
Auxiliary Cylinders | HZKY-01-006 | 1 pc |
High-pressure Hose | 34 articles |
There are two ways to disassemble the process:
A. First remove the guide sleeve of the middle cylinder→ then remove the guide sleeve of the outer cylinder→ hang down the column→ pull down the outer cylinder on the cylinder pulling machine→ transfer the outer cylinder → open, press down the bottom valve→ pull out the live column.
B. First dismantle the guide sleeve of the outer cylinder→ pull out the middle cylinder → hang the middle cylinder→ install the card plate at the end of the middle cylinder→ clamp it, remove the guide sleeve of the middle cylinder→ and pull out the guide sleeve and the live column by hanging the cylinder pulling machine.
C. Disassemble with method A first, if the guide sleeve of the cylinder is too tight to rotate the cylinder, it is necessary to use method B to disassemble.
Company Introduction:

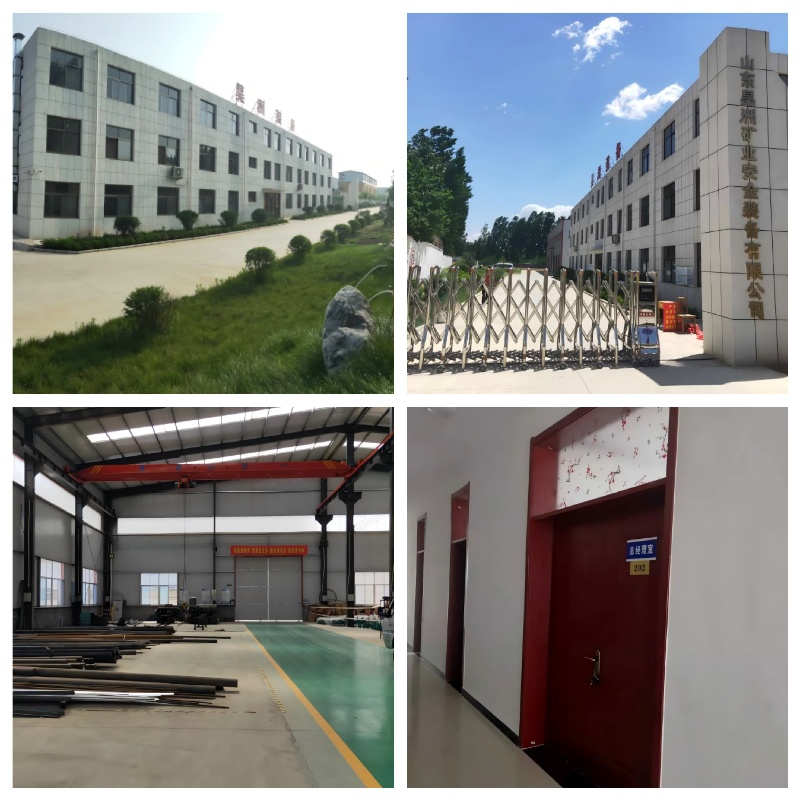

Shandong Haozhou Mining Safety Equipment Co., Ltd. is located in Daolang Town, Daiyue District, at the foot of the well-known Chinese and foreign Mount Tai, 15 kilometers away from the city, with an investment of 60 million yuan covering an area of 23 acres, and the construction of 8,000 square meters of plant has been put into use.
Shandong Haozhou Mining Safety Equipment Co., Ltd. focuses on mine pressure monitoring and treatment, conducts in-depth on-site research in coal mines, works with mines to provide solutions and long-term services based on the actual situation, effectively assists in solving coal mine safety problems, and continuously injects "scientific and technological power" into the construction of "smart mines".
Patent Certificate：
