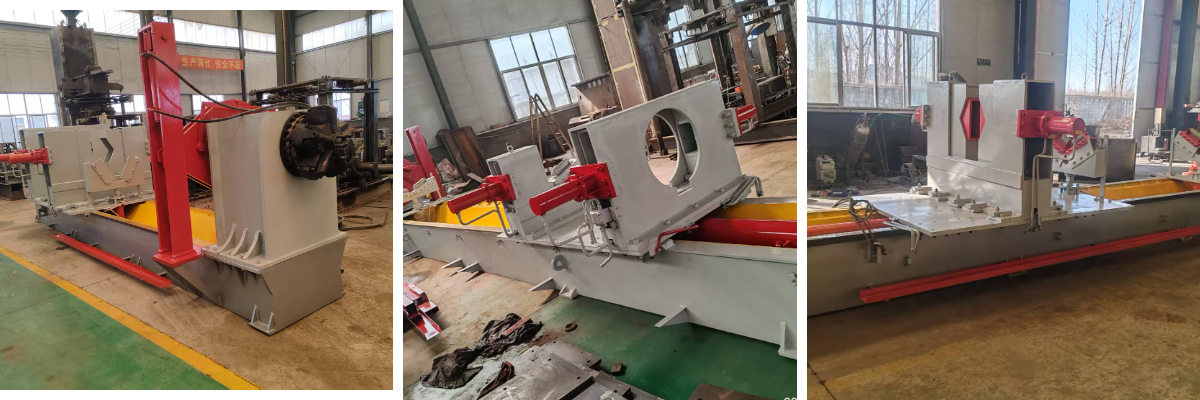

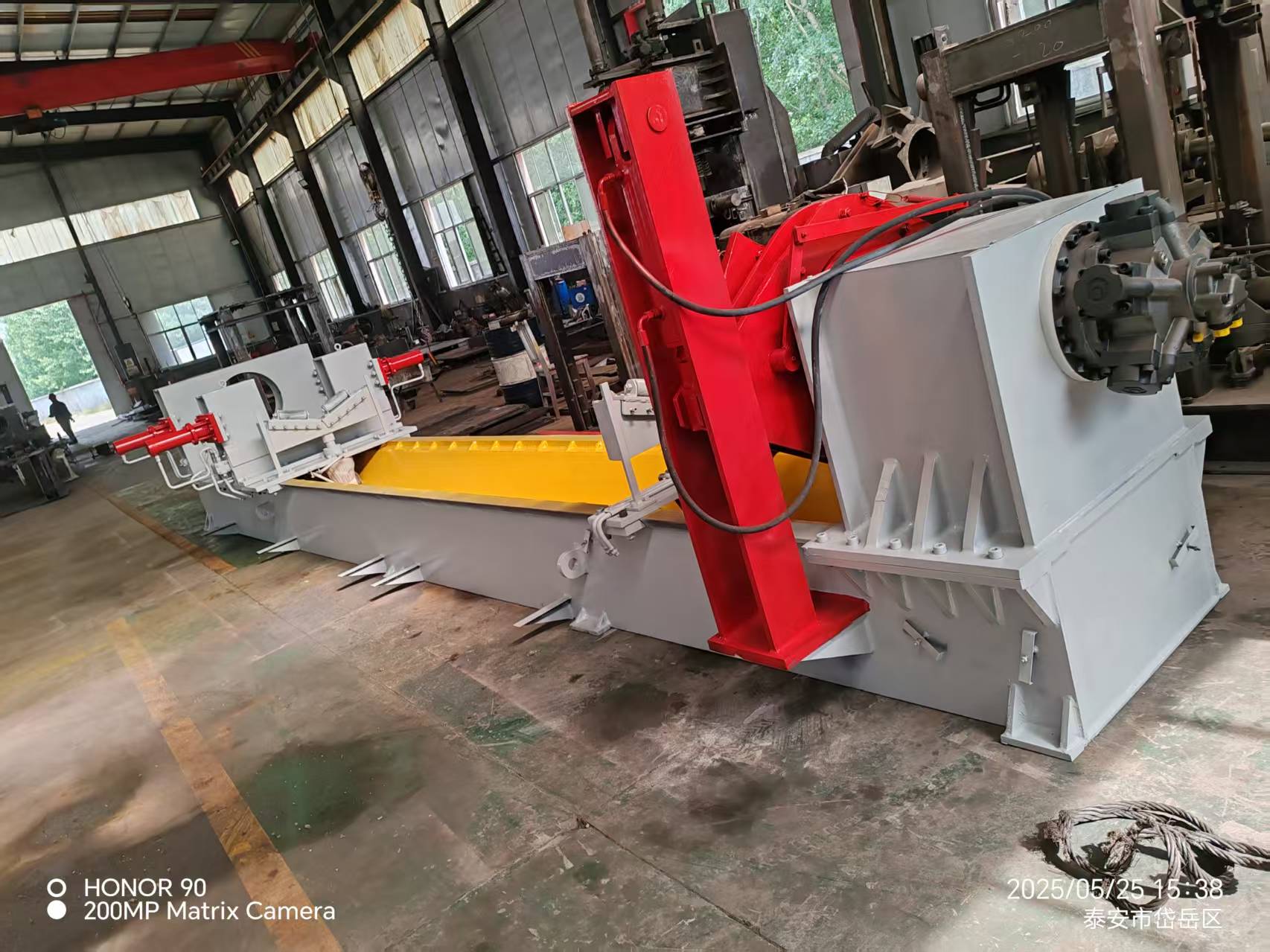

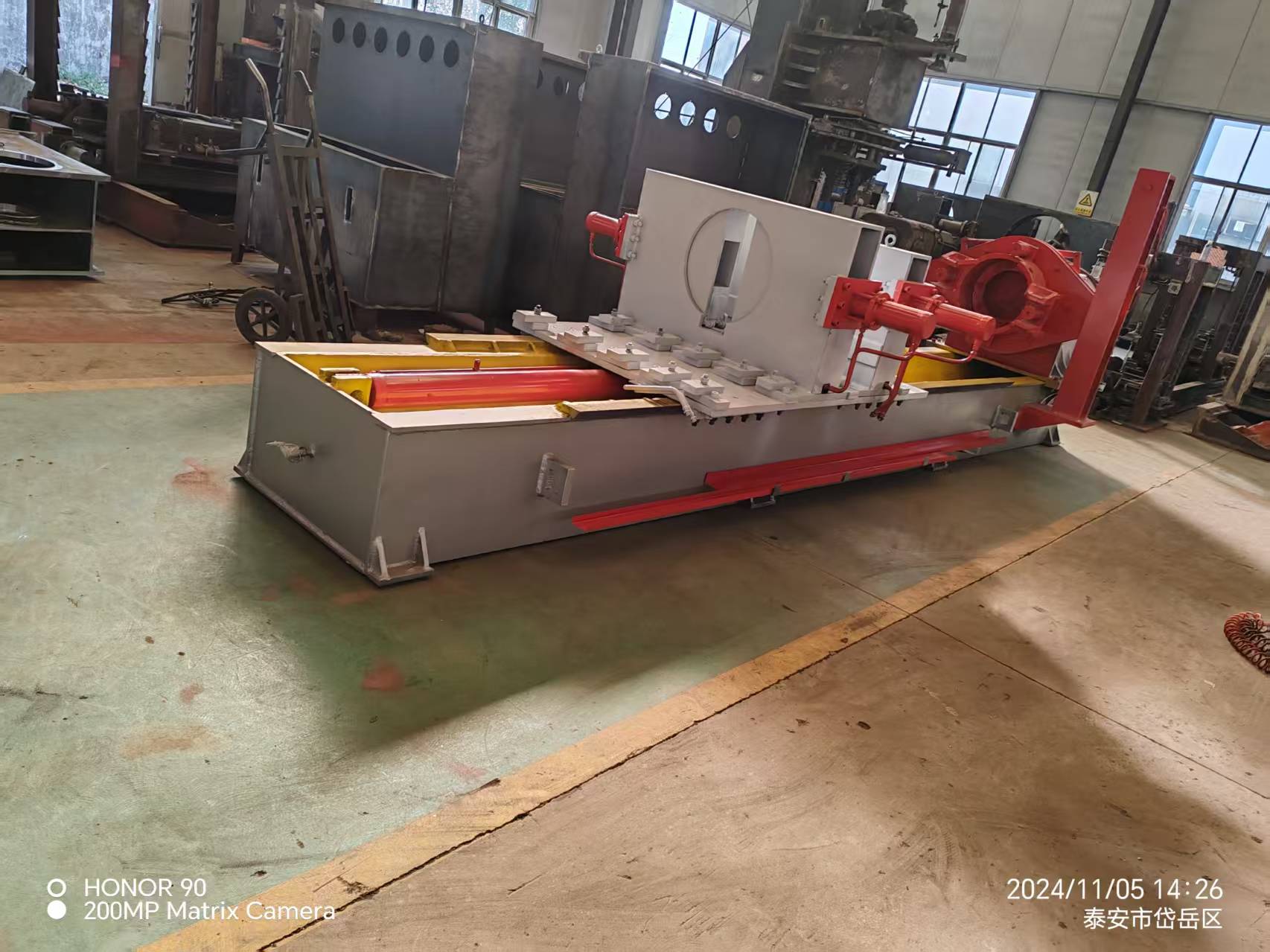

Horizontal Medium-tonnage Cylinder Teardown Equipment
1. Before maintenance, the energy ought to be became off and the strain ought to be launched to affirm safety
2. On-site upkeep requires the training of professionals, and it is forbidden to dismantle valve parts
3. It is strictly forbidden to trade the circuit and thing parameters
4. It is forbidden to join non-specified equipment
5. The parameters should be checked earlier than putting in new parts
6. Performance should be examined after maintenance
7. Keep the oil degree ordinary and fill up it in time
8. Clean and lubricate the information rails daily
9. Check the reputation of fasteners regularly
10. Check the oil pleasant generally and change it in time
11. Check the pipeline seal and deal with leaks in time
12. It need to be operated and maintained by way of a devoted man or woman
Notes
1. When performing maintenance, the power supply and fluid supply system must be turned off and the system must be depressurized! ! Perform maintenance operations only when safety is confirmed.
2. When disassembling and repairing faulty products on site, correct operations must be performed under the guidance of maintenance personnel. Faulty reversing valves, one-way valves, hydraulic cylinders, etc. can only be replaced as a whole, and other maintenance and repair work must be performed in a safe environment.
3. The specifications, models and electrical parameters of the control circuit and related equipment components must not be changed during maintenance.
4. It is strictly forbidden to connect and use with equipment other than those specified in the manual.
5. For newly replaced products, parameter indicators must be checked and safety confirmed before they can be installed and used.
6. For repaired products, performance tests must be performed before they can be installed and used.
7. Check the oil level of the hydraulic power station regularly. The lubricating oil should not be lower than the specified oil level. Check whether the spindle lubricating oil is in the normal position. If it is insufficient, add it in time.
8. The oil and coal dust on the guide rails must be wiped off every shift, and a small amount of lubricating oil should be dripped on the working surface of the guide rails.
9. Check the tightness of each fastener regularly. If it is loose, it should be adjusted in time.
10. Check the hydraulic oil or emulsion regularly. If it is found to be deteriorated or the cleanliness is unqualified, it must be replaced in time, otherwise it will affect the normal operation of the hydraulic system.
11. Check the pipe joints and working cylinders regularly for oil or liquid leakage. If there is any problem, repair or replace it in time (the cylinder seal can refer to the relevant component diagram)
12. This equipment should be operated by specially trained skilled workers. It is strictly forbidden to operate and maintain it without a dedicated person.
Technical parameters:
Hydraulic Drive Motor | 18.5KW -4 stage |
Motor Disassembly Torque | 30000N.m |
Total Flow of Hydraulic Motor | 56L/min |
Pumping Station Pressure | 31.5Mpa |
Motor Working Pressure | 25Mpa |
Afterburner Torque | 300000N.m |
Maximum Thrust of The Clamping Cylinder | 265KN |
Maximum Pulling Force | 180KN |
Disassemble The Bore | 50-500 |
Translational Cylinder Stroke | 2100mm |
Secondary Cylinder Clamping | V-shaped tooth plate clamping |
How it Works | Control valve/button electric control/remote control |
Dimensions | 7000×2400×1700mm |
Product configuration:
Name | Model | Quantity |
Motor | 18.5KW | 1 unit |
Hydraulic Motor | HZKY-01-001 | 1 unit |
Oil Pump | HZKY-01-002 | 1 unit |
Control Valves | HZKY-01-003 | 8 groups |
Afterburner Cylinders | HZKY-01-004 | 2 pcs |
Tighten Up Left and Right | HZKY-01-005 | 2 pcs |
Auxiliary Cylinders | HZKY-01-006 | 1 pc |
High-pressure Hose | 34 articles |
