High Quality Single Hydraulic Prop Test Bench

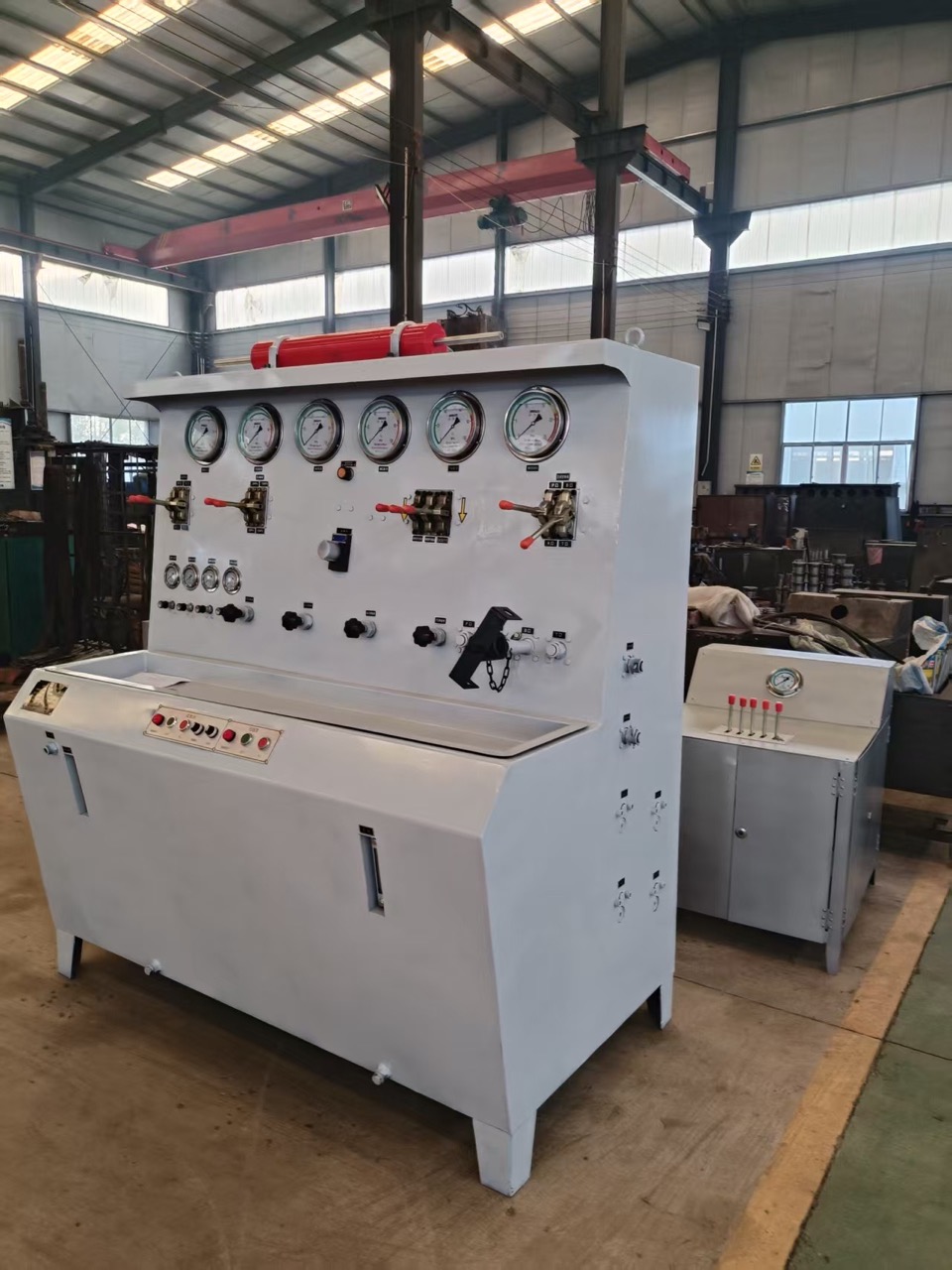

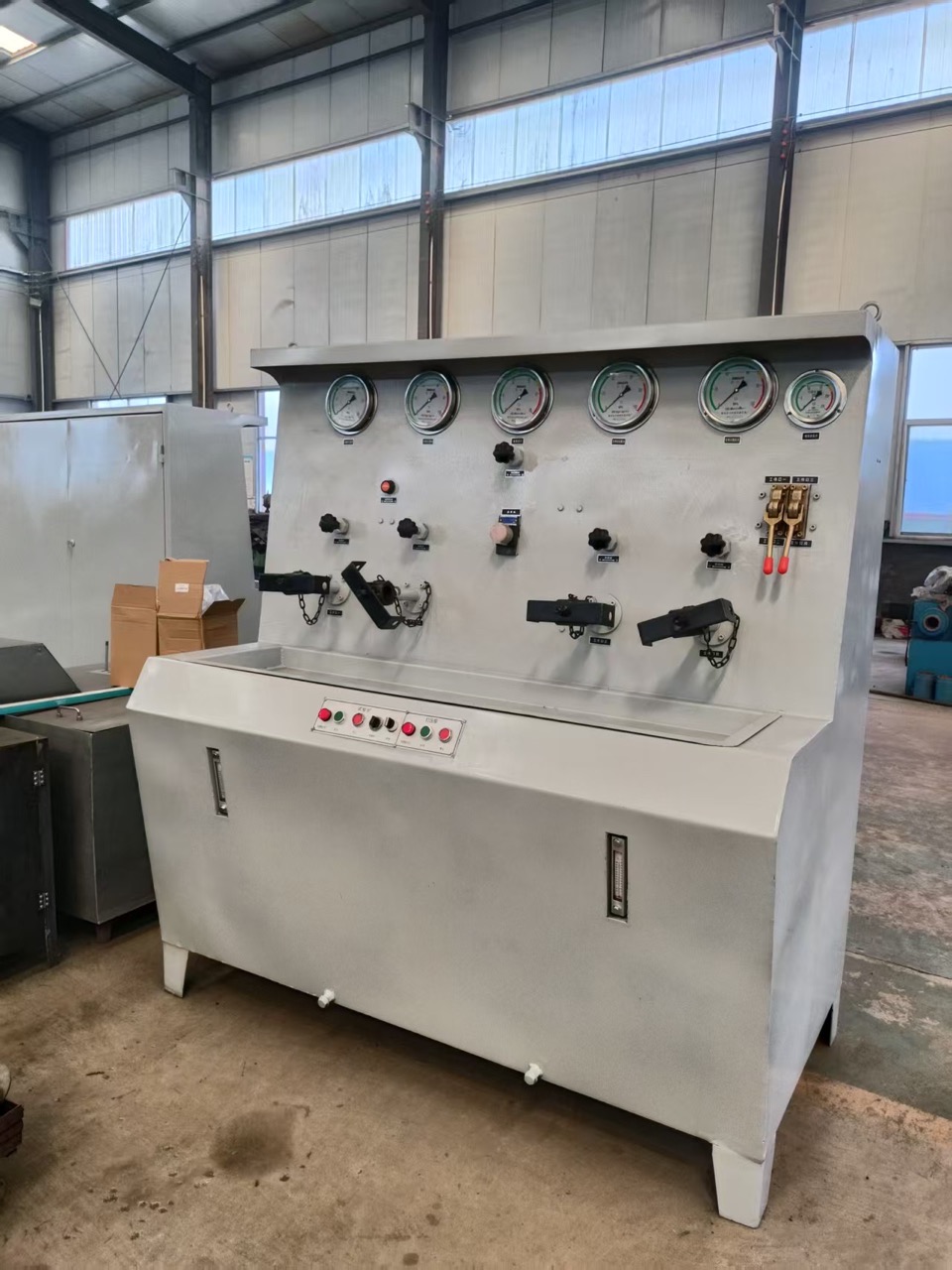

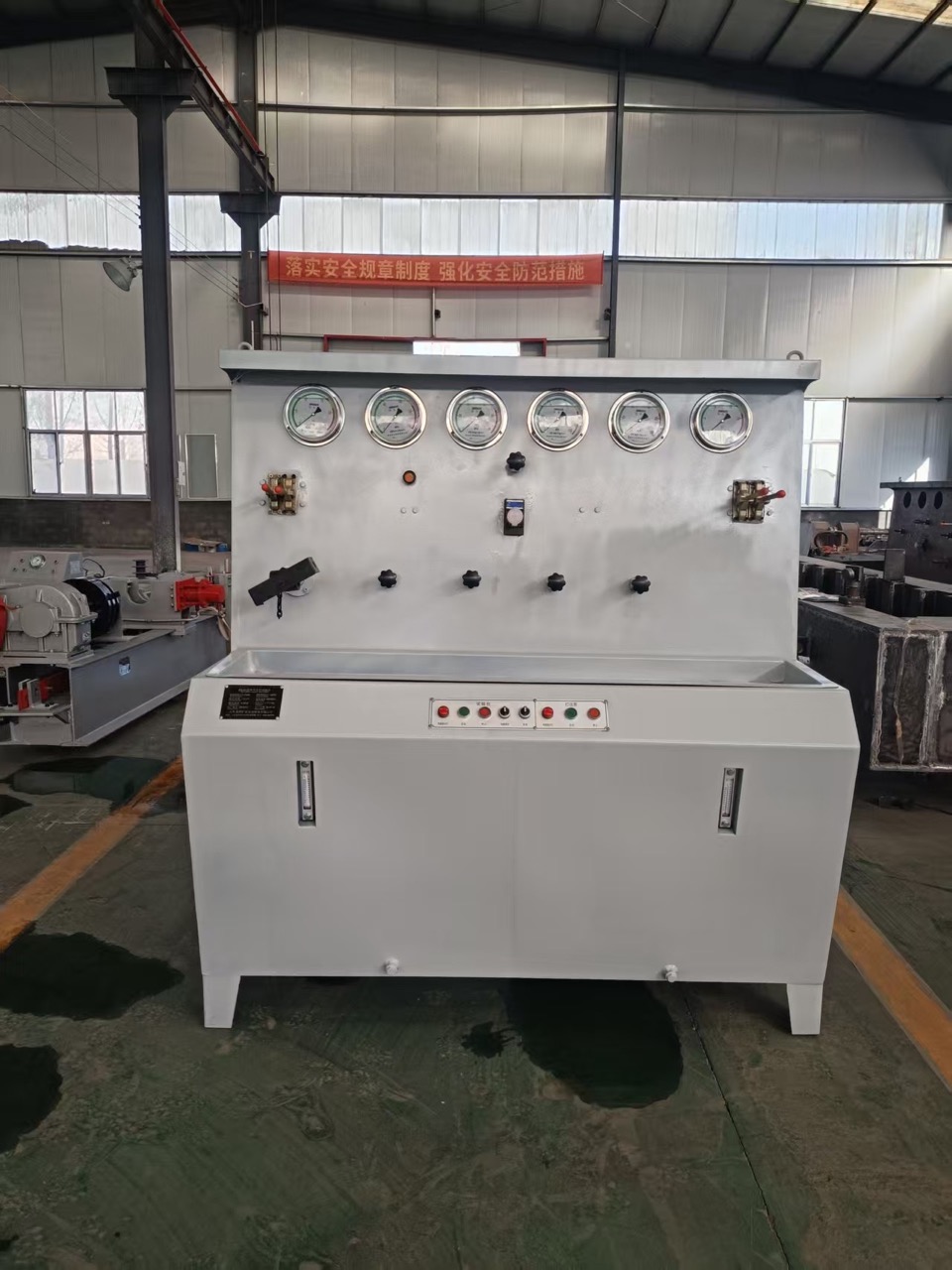

China Single Hydraulic Prop Test Bench：

China Single Hydraulic Prop Test Bench is a unique trying out tools designed in accordance to the Chinese coal enterprise trendy "MT112.1-2006 Single Hydraulic Prop for Mining", which is often used for manufacturing acceptance, every day preservation and commissioning, and overall performance trying out of single hydraulic props for mining.

Core Functions Include:

1. Pillar overall performance testing: Detects the pillar's pressure-bearing capacity, sealing, and working resistance to make certain compliance with protection standards.

2. Three-way valve adjustment: Pressure adjustment and overall performance verification of the pillar's core components—the three-way valves (check valve, unloading valve, and protection valve).

3. Hydraulic element testing: This can be elevated to consist of sealing overall performance trying out of hydraulic aspects such as hydraulic supports, jacks, and high-pressure hoses.

The take a look at bench generally consists of a hydraulic system, an emulsion system, a press (vertical or horizontal), a computerized trying out system, and auxiliary supports. It helps dynamic checking out beneath simulated working stipulations and achieves records acquisition accuracy of up to 0.01 MPa.

Core Features:

1. High-Pressure Output and Precision Control

Dual-Media Hydraulic System: Select fashions make use of a dual-circuit layout for oil stress and emulsion. The oil pump drives the booster cylinder to generate high-pressure emulsion, with an output strain vary of 0-80 MPa, assembly the checking out necessities of pillars of various sizes.

Pressure Sensor and Digital Display: Real-time strain information is collected, and the microcomputer robotically analyzes and generates take a look at reports, accomplishing check accuracy higher than 1% FS (full scale).

2. Efficient Testing and Automated Operation

Vertical/Horizontal Press Configuration: The vertical press (e.g., the 1000kN model) has a most loading top of DW28 and helps each inside and exterior loading. The horizontal press (e.g., the 500kN model) has a 600mm cylinder stroke to accommodate quite a number pillar sizes.

Computer Integrated System: Integrates facts display, acquisition, and processing, helps scheduled testing, and mechanically generates and prints take a look at reports. With a patrol speed of 0.02 seconds per point, a single press check takes solely 0.5 seconds. three Humanized Design and Safety Assurance

Centralized operation panel and lighting: Optimize working strategies and enhance the work environment.

Safety valve and pressure-maintaining device: The high-pressure shut-off valve makes use of a soft-seal shape to preserve stress for a lengthy time except leakage; the low-pressure gauge safety valve mechanically closes when the stress exceeds the limit, stopping instrument damage.

4. Modularity and Expandability

Optional seal check brackets, such as the horizontal seal take a look at bracket, enhance trying out efficiency.

Compatible with a number take a look at types: Supports checking out of internal-injection and external-injection single hydraulic supports, as nicely as aspects such as the three valves and columns of the hydraulic support.

Our Company：

Haozhou Company, in specific exceptionally primarily based on its very private manufacturing advantages, firmly establishes the questioning of "four sorts of operation", adheres to the usual questioning of "stabilizing the current day commercial enterprise organization base, focusing on industrial shape upgrading, exploring interior cooperation potential, and deeply looking for inexperienced transformation and development", and continuously explores new techniques of industrial upgrading. Entering the subject of mining equipment and equipment manufacturing, we have developed a mining pneumatic booster pump. After strict reflect onconsideration on via capability of potential of the National Safety Standards Center, it successfully surpassed the on-site contrast and obtained the CMAC security certification certificate.

The mining pneumatic injection pump produced by means of ability of Haozhou Company is a specialised and environment best tools that makes use of compressed air to strength and can hastily furnish emulsion in harsh environments such as flammable, explosive, and dusty environments. Mainly notable for hydraulic aid of coal mine underground, gold preferred assist of excavation face, use of stress column for slope hoisting winch, as proper as coal seam water injection and working face cutting. It can in addition be used as a cleansing pump for coal tunnels and rather a range mechanical equipment.
