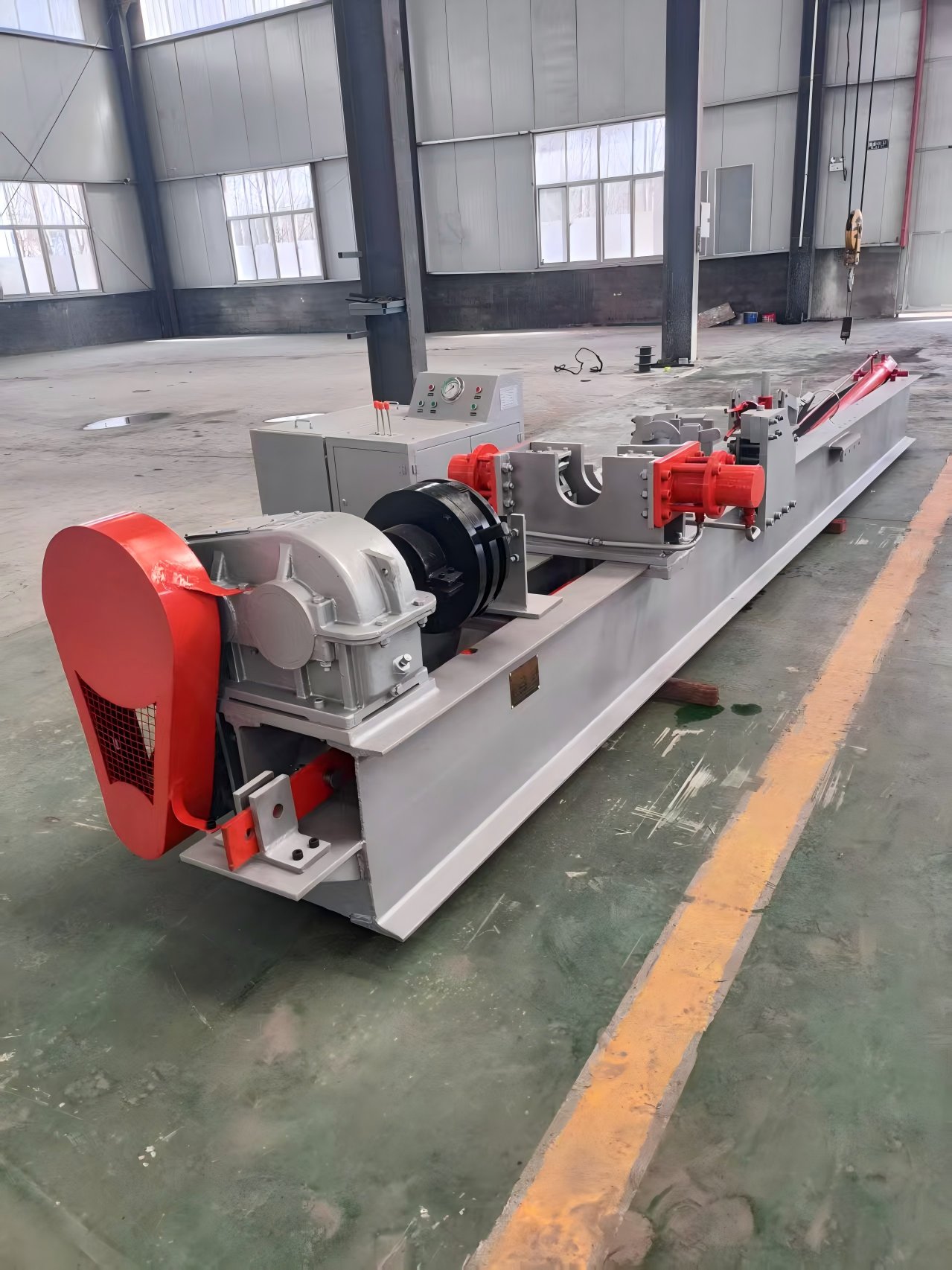

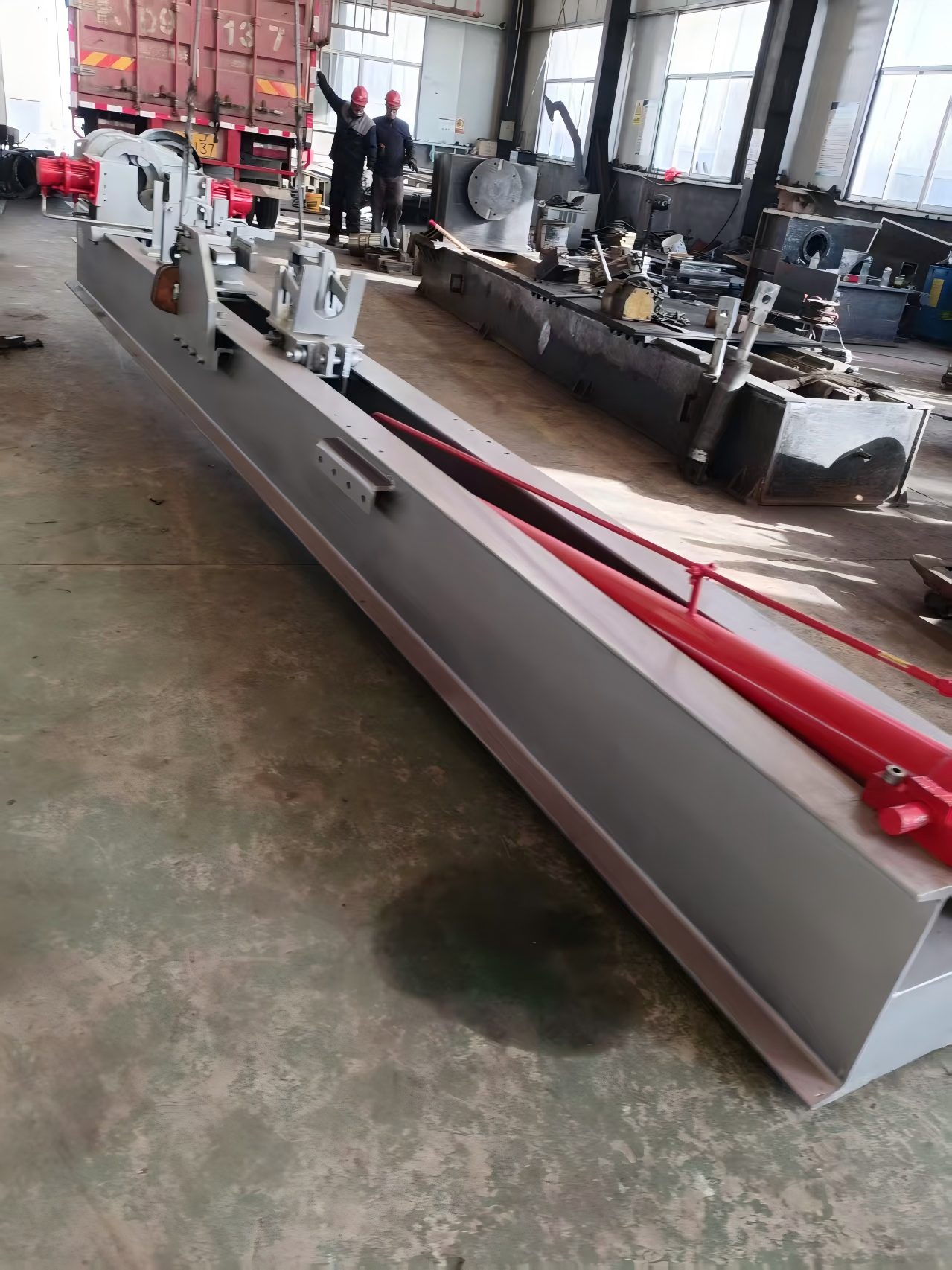

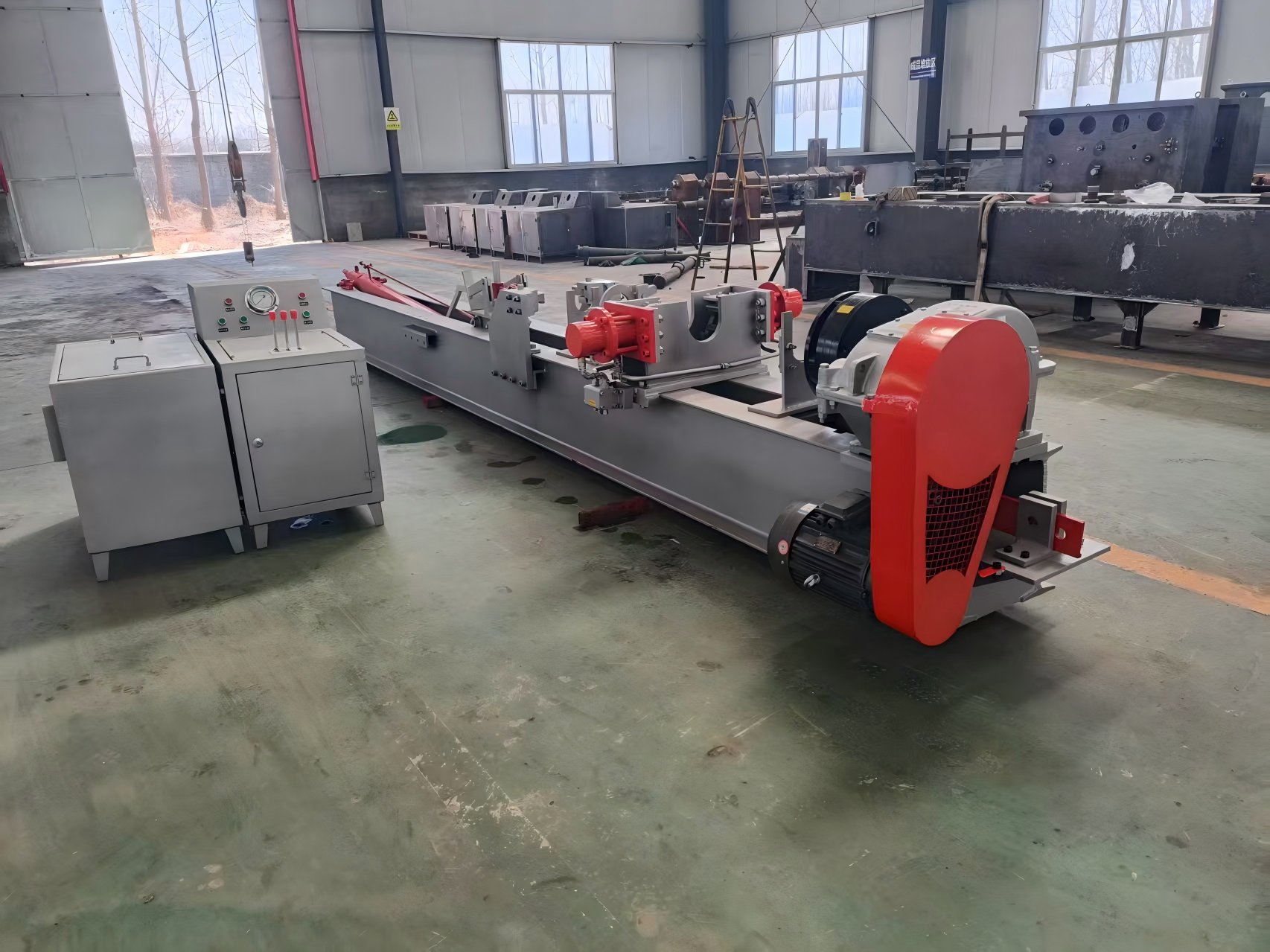

Single Hydraulic Prop Split Column Machine
1.Efficient disassembly capacity
2.Modularization and multifunction
3.Humanization and safety design
4.Suitability and durability
Single Hydraulic Prop Split Column Machine：
Single Hydraulic Prop Split Column Machine is a special equipment specially used for the disassembly of single hydraulic strut, especially for the strut with serious corrosion and difficult to be handled by conventional tools to realize mechanized disassembly. Its core function is to complete the disassembly of key parts such as the strut triple valve, base, handle body, top cover and live cylinder through the linkage of mechanical and hydraulic systems. The equipment adopts modular design, integrating clamping, rotating, ejection and other multi-function units, which can adapt to the maintenance requirements of pillars of different specifications.
Core features:
Efficient disassembly capacity
Two-way self-tightening chuck: eccentric or two-way self-tightening chuck is designed, with clamping force more than 30% higher than that of traditional equipment, which can stably fix corroded or deformed columns and avoid slipping during disassembly.
Large torque output: the main motor drives the main shaft through the belt drive. The temporary allowable torque of the low speed shaft can reach 150000N · m, and the clamping stagnation parts can be easily removed.
High-efficiency operation: the time for single column disassembly of the latest model is shortened to 3-5 minutes, and 120-160 columns can be processed per day, with the efficiency 5-8 times that of manual disassembly.
Modularization and multifunction
Five-in-one functional unit: integrating such modules as three-purpose valve separation, base removal and column ejection, supporting "one machine for multiple purposes" and reducing equipment investment cost.
Adjustable clamp: The movable post clamp and base clamp are designed with guide rail, and the clamping range can adapt to the mast with a height of 800-4500mm and a cylinder diameter of φ 80 - φ 140mm, covering more than 90% of domestic models.
| Name | Item | Specification | Unit |
|---|---|---|---|
| Overall Dimensions （Length × Width × Height） | 6500 × 1000 × 900 | mm | |
| Machine Weight | 2500 | kg | |
| Prop Cylinder Bore(Inner Diameter) | 100-125 | mm | |
| rop Height ( Disassembly Height) | ≤4500 | mm | |
| Pump Station Pressure | 20 | MPa | |
| Flow Rate | ≤30 | L/min | |
| Working Medium | No. 46 Hydraulic Oil | ||
| Main Motor | Power | 5.5 | kW |
| Voltage | 380 | V | |
| Speed | 960 | rpm | |
| Main Reducer | High-Speed Shaft Allowable Power | 5.5 | kW |
| Low-Speed Shaft Max. Torque | Tmax= 7.4 | mm | |
| Total Reduction Ratio | I = 2.25 × 31.5 = 71.19 | ||
| Clamping Frame Hydraulic Cylinder | Working Force | 50 | kN |
| Pulling Stroke | 25 | mm | |
| Disassembly Jack | Working Force (Push/Pull) | 115 / 59 | kN |
| Working Stroke | 2100 | mm |
Scope of application：
Coal mine field
Pillar maintenance: It is used for the disassembly, cleaning, testing and remanufacturing of retired pillars in the fully mechanized working face, reducing the procurement cost of new pillars by more than 30%.
Emergency treatment: Quickly disassemble the damaged strut, prevent the roof falling accident from expanding and ensure the safety of underground operation.
Specification adaptability: it can handle DWX series suspension strut, DW series external injection strut and other mainstream models, and support the disassembly of strut with a maximum height of 4500mm and a cylinder diameter of φ 140mm.
Non-coal mine
Metal mine: Dismantle and scrap hydraulic pillars, recycle live pillars, oil cylinders and other parts for refurbishment and reutilization in the roadway support of iron mine and copper mine.
Tunnel works: It is used for the removal of individual pillars in the initial support of soft rock tunnels, and it can be used in conjunction with the roadheader to achieve fast tunneling.
Other fields
Building reinforcement: disassemble the hydraulic column for temporary support, which is used for foundation pit support of high-rise buildings or renovation works of dilapidated buildings.
Equipment remanufacturing: provide core disassembly equipment for hydraulic strut maintenance enterprises, and support large-scale maintenance business with annual processing capacity of over 5000 pieces.
