Single Hydraulic Prop Split Column Machine Manufacturer
1.Efficient disassembly capacity
2.Modularization and multifunction
3.Humanization and safety design
4.Suitability and durability
Single Hydraulic Prop Split Column Machine：

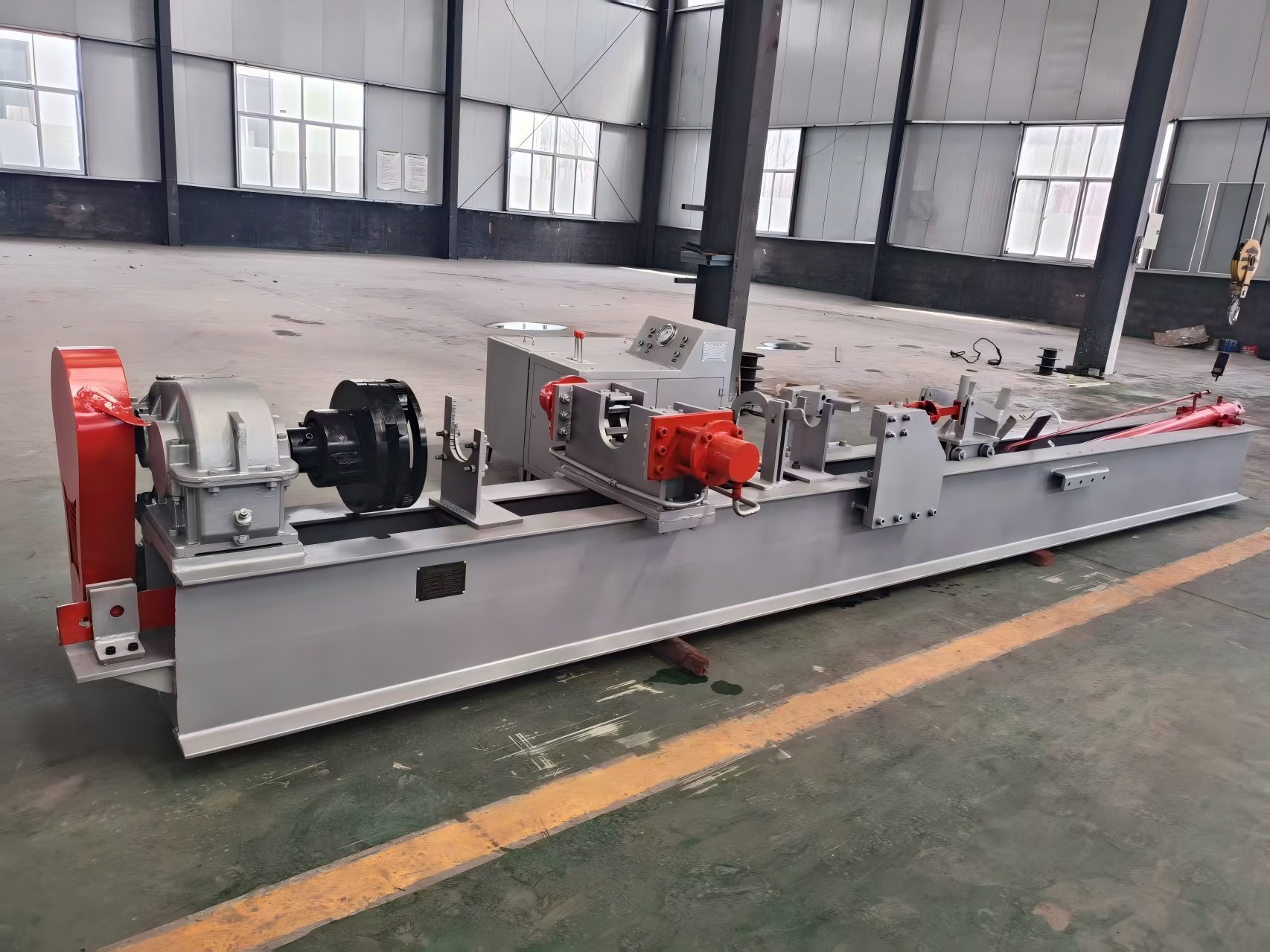

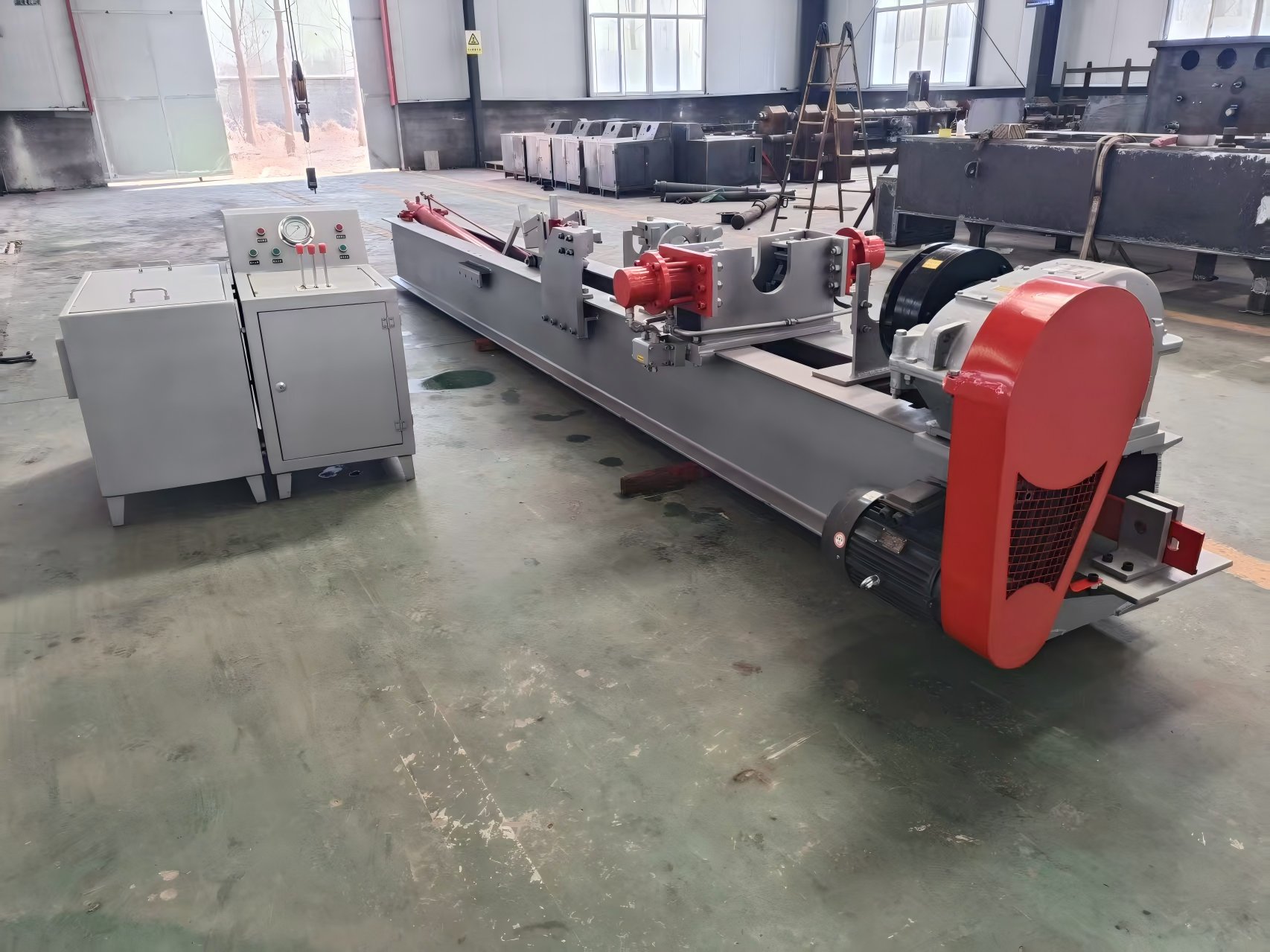

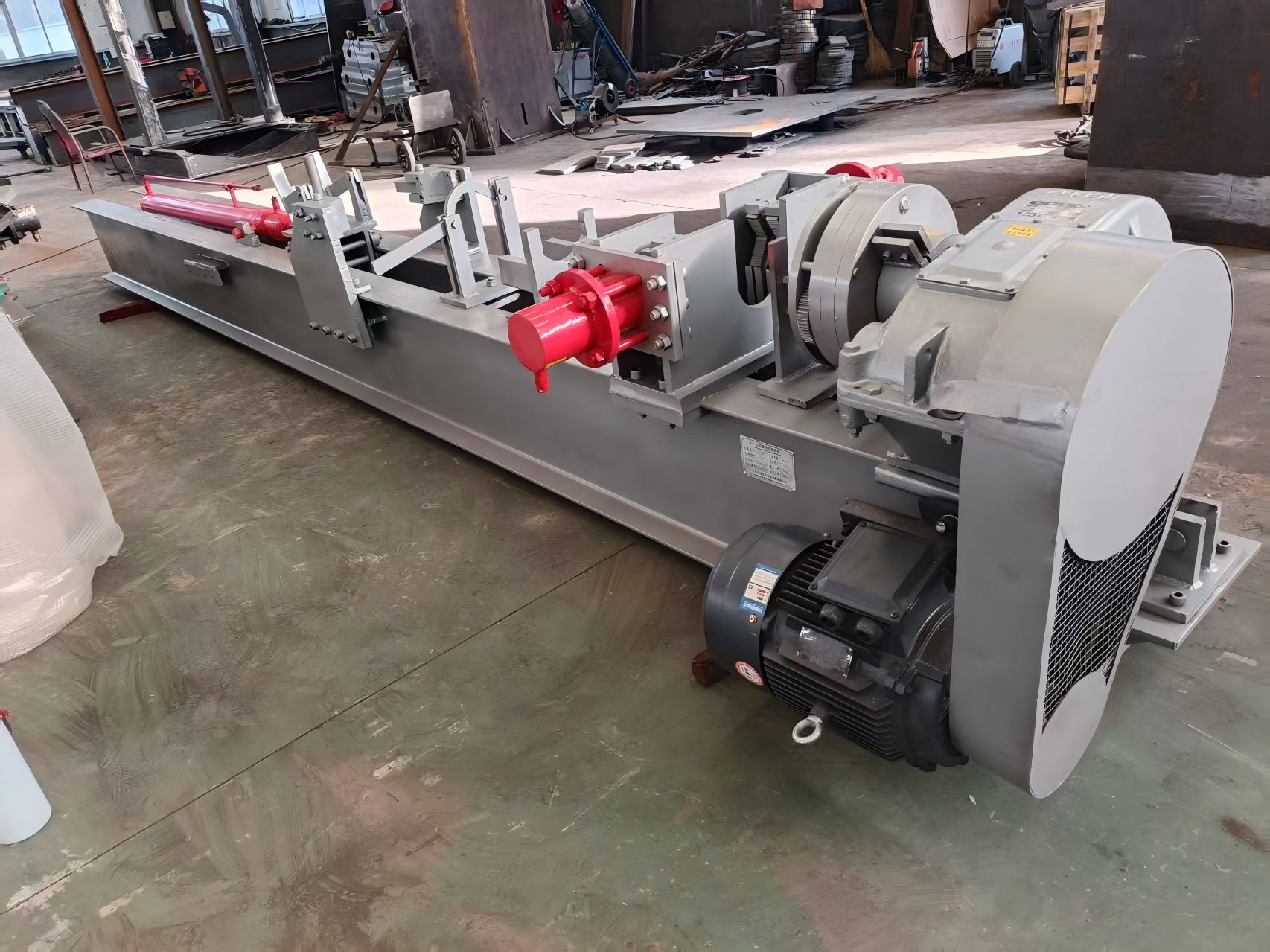

Single Hydraulic Prop Split Column Machine is a distinctive tools in particular used for the disassembly of single hydraulic strut, in particular for the strut with serious corrosion and tough to be dealt with by using traditional equipment to recognize mechanized disassembly. Its core feature is to entire the disassembly of key components such as the strut triple valve, base, cope with body, pinnacle cowl and stay cylinder via the linkage of mechanical and hydraulic systems. The tools adopts modular design, integrating clamping, rotating, ejection and different multi-function units, which can adapt to the protection necessities of pillars of one-of-a-kind specifications.
Core features:
1.Efficient disassembly capacity
Two-way self-tightening chuck: eccentric or two-way self-tightening chuck is designed, with clamping pressure extra than 30% greater than that of normal equipment, which can stably repair corroded or deformed columns and keep away from slipping for the duration of disassembly.
Large torque output: the most important motor drives the primary shaft thru the belt drive. The transient allowable torque of the low pace shaft can attain 150000N · m, and the clamping stagnation components can be effortlessly removed.
High-efficiency operation: the time for single column disassembly of the modern-day mannequin is shortened to 3-5 minutes, and 120-160 columns can be processed per day, with the effectivity 5-8 instances that of guide disassembly.
2.Modularization and multifunction
Five-in-one useful unit: integrating such modules as three-purpose valve separation, base elimination and column ejection, assisting "one laptop for a couple of purposes" and lowering tools funding cost.
Adjustable clamp: The movable publish clamp and base clamp are designed with information rail, and the clamping vary can adapt to the mast with a top of 800-4500mm and a cylinder diameter of φ eighty - φ 140mm, protecting greater than 90% of home models.
| Name | Item | Specification | Unit |
|---|---|---|---|
| Overall Dimensions （Length × Width × Height） | 6500 × 1000 × 900 | mm | |
| Machine Weight | 2500 | kg | |
| Prop Cylinder Bore(Inner Diameter) | 100-125 | mm | |
| rop Height ( Disassembly Height) | ≤4500 | mm | |
| Pump Station Pressure | 20 | MPa | |
| Flow Rate | ≤30 | L/min | |
| Working Medium | No. 46 Hydraulic Oil | ||
| Main Motor | Power | 5.5 | kW |
| Voltage | 380 | V | |
| Speed | 960 | rpm | |
| Main Reducer | High-Speed Shaft Allowable Power | 5.5 | kW |
| Low-Speed Shaft Max. Torque | Tmax= 7.4 | mm | |
| Total Reduction Ratio | I = 2.25 × 31.5 = 71.19 | ||
| Clamping Frame Hydraulic Cylinder | Working Force | 50 | kN |
| Pulling Stroke | 25 | mm | |
| Disassembly Jack | Working Force (Push/Pull) | 115 / 59 | kN |
| Working Stroke | 2100 | mm |
Scope of application：
Coal mine field
Pillar maintenance: It is used for the disassembly, cleaning, checking out and remanufacturing of retired pillars in the totally mechanized working face, lowering the procurement fee of new pillars by using greater than 30%.
Emergency treatment: Quickly disassemble the broken strut, stop the roof falling accident from increasing and make certain the security of underground operation.
Specification adaptability: it can cope with DWX sequence suspension strut, DW collection exterior injection strut and different mainstream models, and help the disassembly of strut with a most peak of 4500mm and a cylinder diameter of φ 140mm.
Non-coal mine
Metal mine: Dismantle and scrap hydraulic pillars, recycle live pillars, oil cylinders and different components for refurbishment and reutilization in the roadway aid of iron mine and copper mine.
Tunnel works: It is used for the elimination of man or woman pillars in the preliminary assist of gentle rock tunnels, and it can be used in conjunction with the roadheader to obtain quick tunneling.
Other fields
Building reinforcement: disassemble the hydraulic column for brief support, which is used for basis pit aid of high-rise constructions or renovation works of dilapidated buildings.
Equipment remanufacturing: furnish core disassembly gear for hydraulic strut upkeep enterprises, and help large-scale renovation enterprise with annual processing potential of over 5000 pieces.
