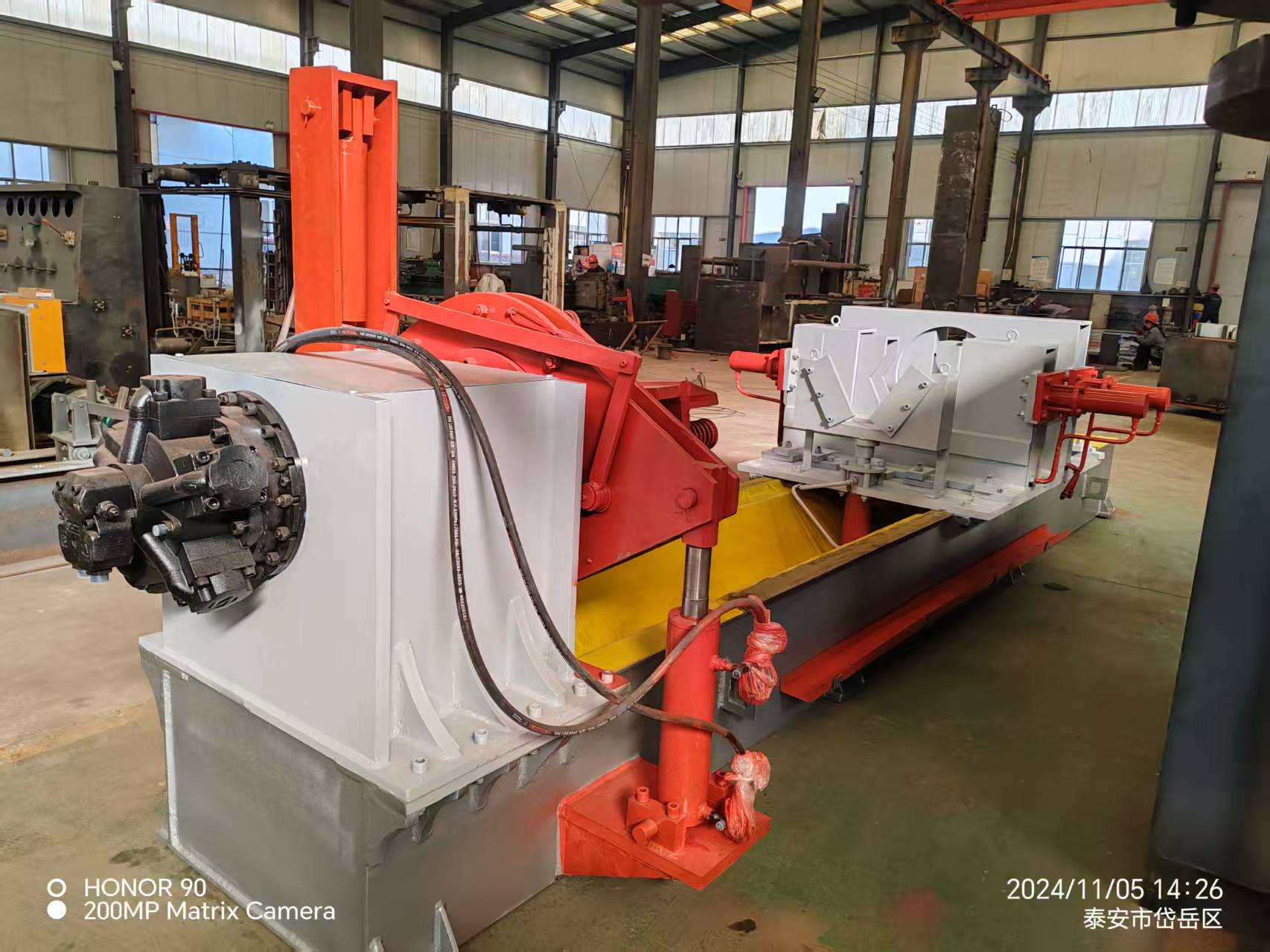

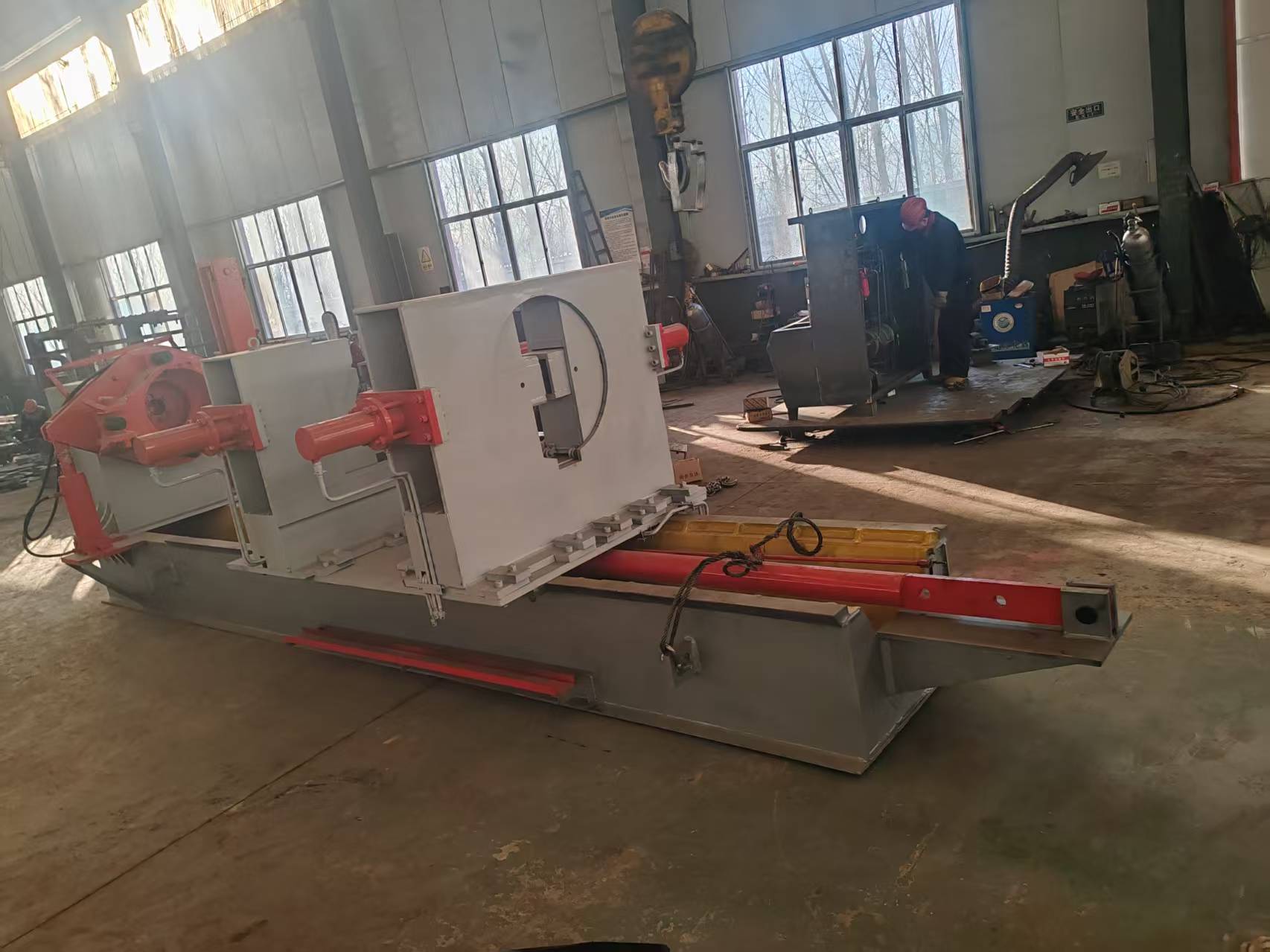

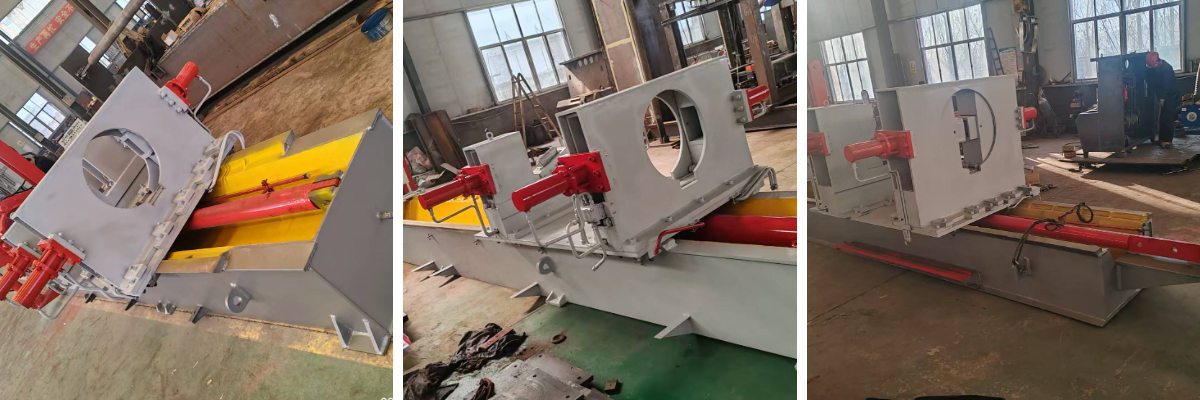

Horizontal Mini Hydraulic Cylinder Disassembly Bench
Application Introduction
WLCG500 horizontal column jack cylinder dismantling desktop is a exceptional gear designed for the disassembly and meeting of coal mine wholly mechanized mining help cylinders. It is accelerated via achievable lookup on the groundwork of the prototype in latest years. It is broadly used in a number of kinds of totally mechanized mining gear guide cylinders with threaded cease covers.
Product Overview
The WLCG500 horizontal column jack cylinder dismantling machine is a highly efficient maintenance equipment specially developed for the disassembly and assembly of hydraulic support cylinders in coal mines. This model has undergone a number of innovative optimizations based on the technology of the original model, greatly improving the disassembly and assembly efficiency and operational safety, and is especially suitable for the maintenance of various types of hydraulic cylinders of fully-mechanized mining supports with threaded end cap structures.
Core application
This equipment mainly serves the following maintenance scenarios:
1. Disassembly of threaded cylinders
Can quickly disassemble the cylinder-guide sleeve structure fastened with threads
Equipped with anti-rotation tooling to avoid thread damage
2. Assembly of large-tonnage support cylinders
Maximum support of 500kN pressing force ("500" in the model represents the pressing force tonnage)
Integrated hydraulic power system to reduce manual labor intensity
3. Preventive maintenance of comprehensive mining equipment
Used for regular maintenance such as seal replacement and piston rod repair of column jacks
4. Highlights of technical upgrades
Compared with traditional cylinder disassembly equipment, this model has the following improvements:
Modular fixture system: adapt to different cylinder diameters of Φ80-400mm, replacement time <3 minutes
Intelligent hydraulic control: closed-loop pressure adjustment (0-25MPa steplessly adjustable), automatic overload protection
Ergonomic optimization: low-level operating table + LED working condition display screen to reduce worker fatigue
Typical applicable models
It can repair ZY3200, ZY8600 and other series support cylinders of mainstream manufacturers such as Zhengzhou Coal Mining Machinery Co., Ltd. and Beijing Coal Mining Machinery Co., Ltd., covering more than 90% of the needs of coal mine comprehensive mining equipment.
