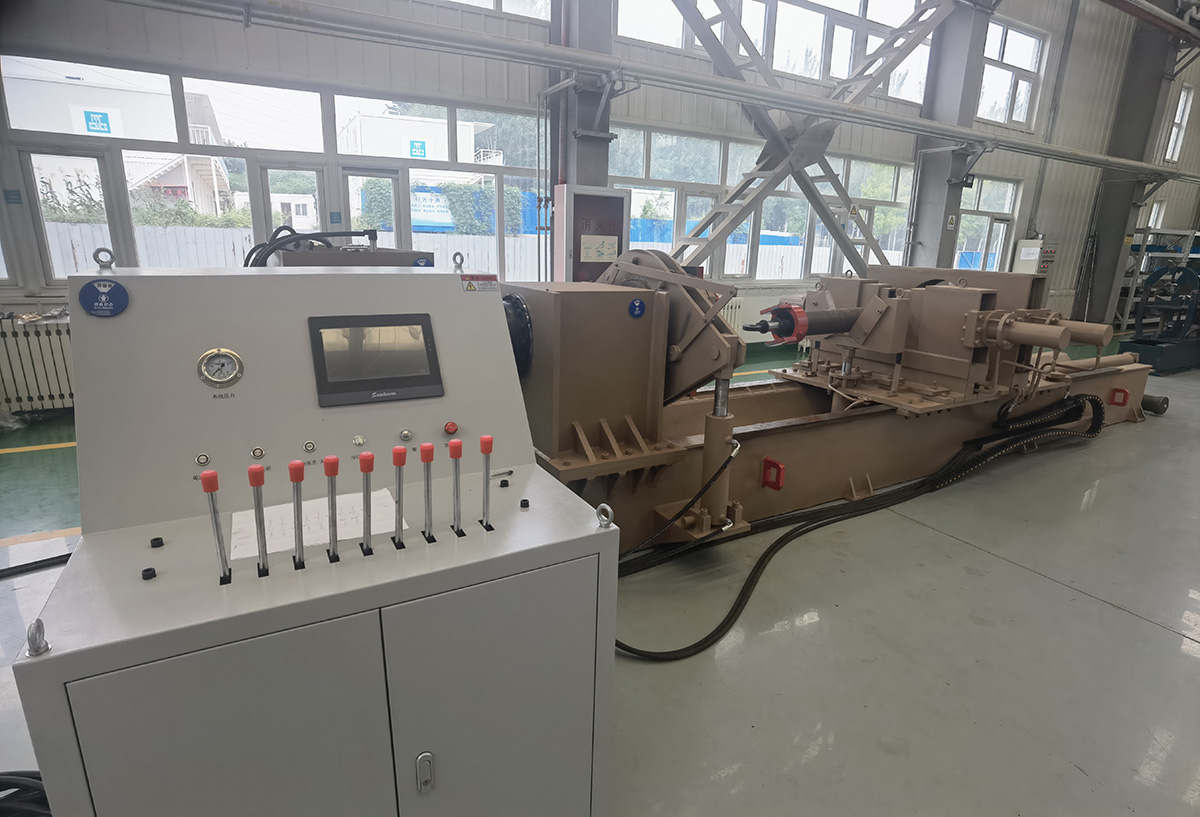

Cylinder Disassembly Machine
Wide Compatibility: Handles various threaded hydraulic cylinders (60–400 mm OD) with a broad torque range (200–50,000 N.m).
Simplified Locking Mechanism: Self-aligning design replaces hydraulic clamping, improving reliability and ease of use.
Efficient Hydraulic System: Uses emulsion fluid and mining-standard parts for easy maintenance and durability.
Smart & Safe Control: PLC-controlled with overload, short-circuit, and pressure-loss protections.
High Power & Capacity: 15 KW motor, 20,000 N.m torque, and 4,000 mm slide travel for heavy-duty operations.
Product Introduction
The GCZJ-400 cylinder disassembly machine is a specialized equipment designed for dismantling various threaded hydraulic cylinders. Developed through extensive research and improvements based on previous prototypes in recent years, it is widely applicable to all types of hydraulic cylinders with threaded end covers.
Features and Main Structure
The machine can disassemble various models of threaded cylinders and jacks that are tightly assembled. It is capable of torque-controlled tightening for threaded cylinder assembly and can handle the disassembly and assembly of large threaded components. The self-aligning locking mechanism replaces the original hydraulic clamping system, offering simpler structure, easier operation, and reliable performance. It uses emulsion as the hydraulic medium, with the pump station separated from the main unit. Hydraulic components adopt mining-standard parts for easy maintenance and replacement. The electrical control system includes overload, short-circuit, and loss-of-pressure protections. The machine mainly consists of the frame, clamping slide unit, connecting drum, chuck, hydraulic motor drive system, hydraulic operating system, and electrical control system.
Technical Parameters
| Parameter | Specification |
Power Station Motor | 15 KW |
Hydraulic Motor Torque | 20,000 N.m |
Hydraulic Flow Rate | 40 L/min |
System Pressure | 0-20 MPa |
Torque Range | 200-50,000 N.m |
Clamping Thrust | 125 KN |
Clamping Pull Force | 80 KN |
Max. Disassembly OD | 60-400 mm |
Slide Travel | 4,000 mm |
Control System | PLC |
Overall Dimensions | 9,500×2,200×1,500 mm |
