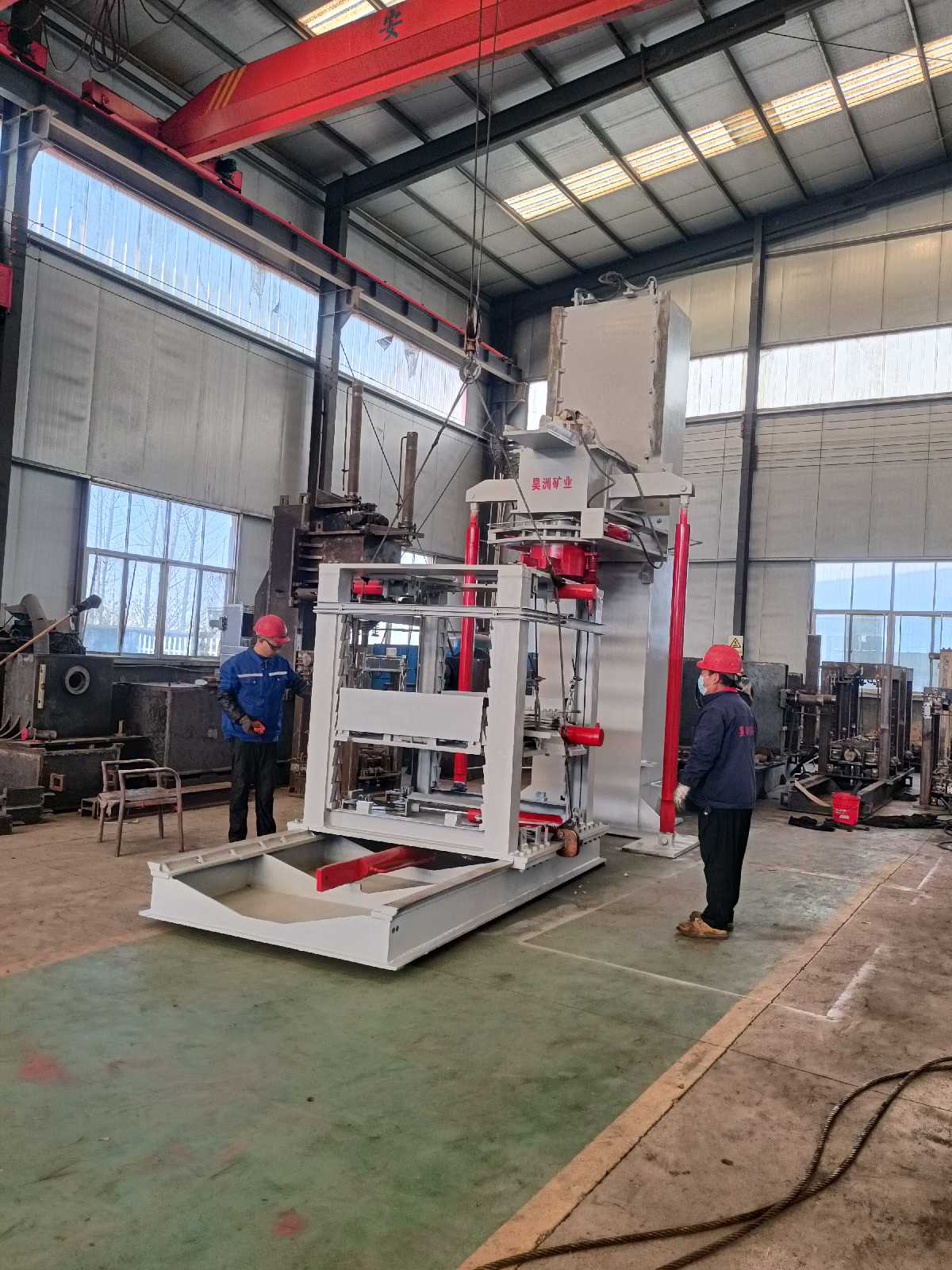

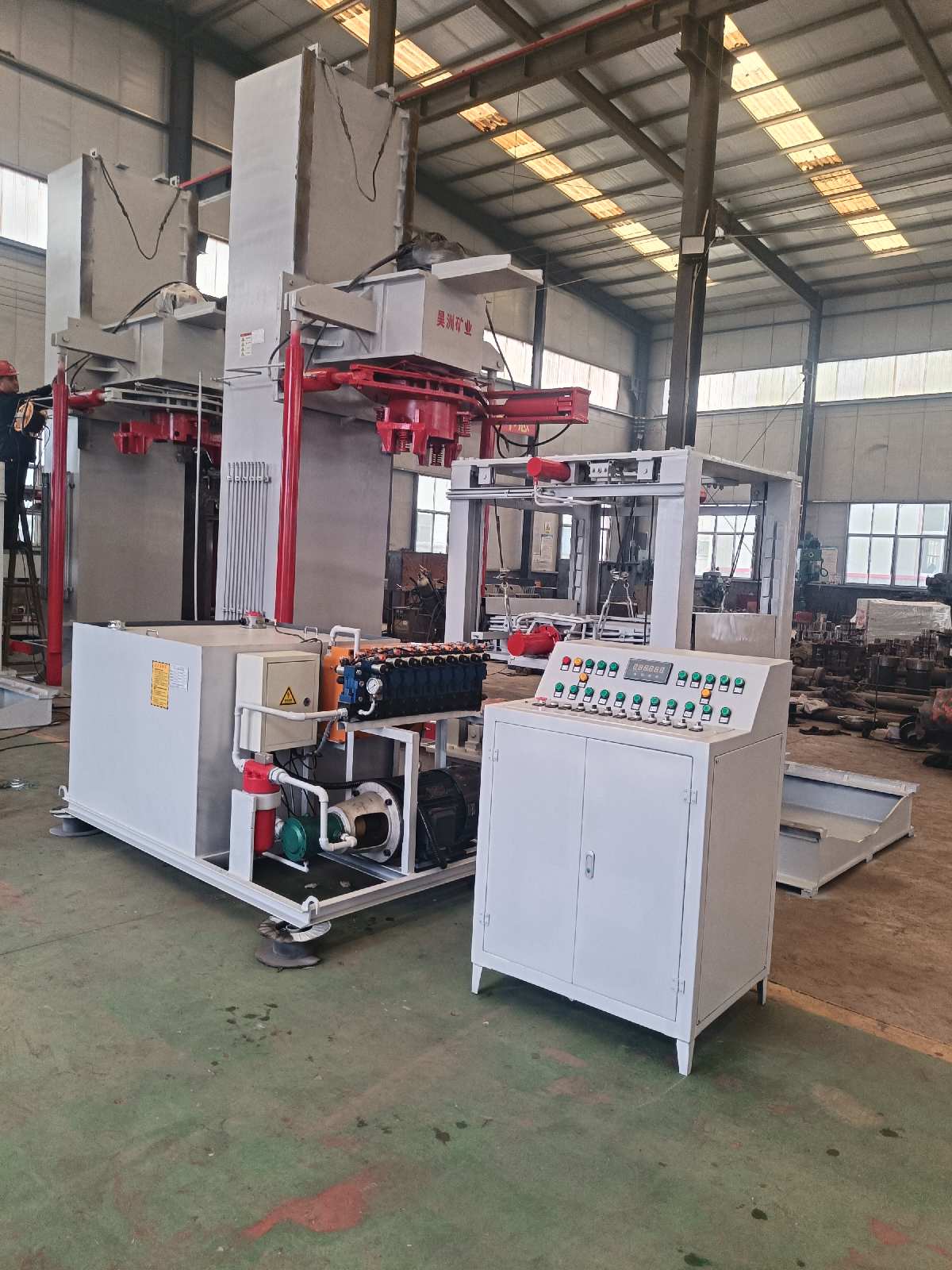

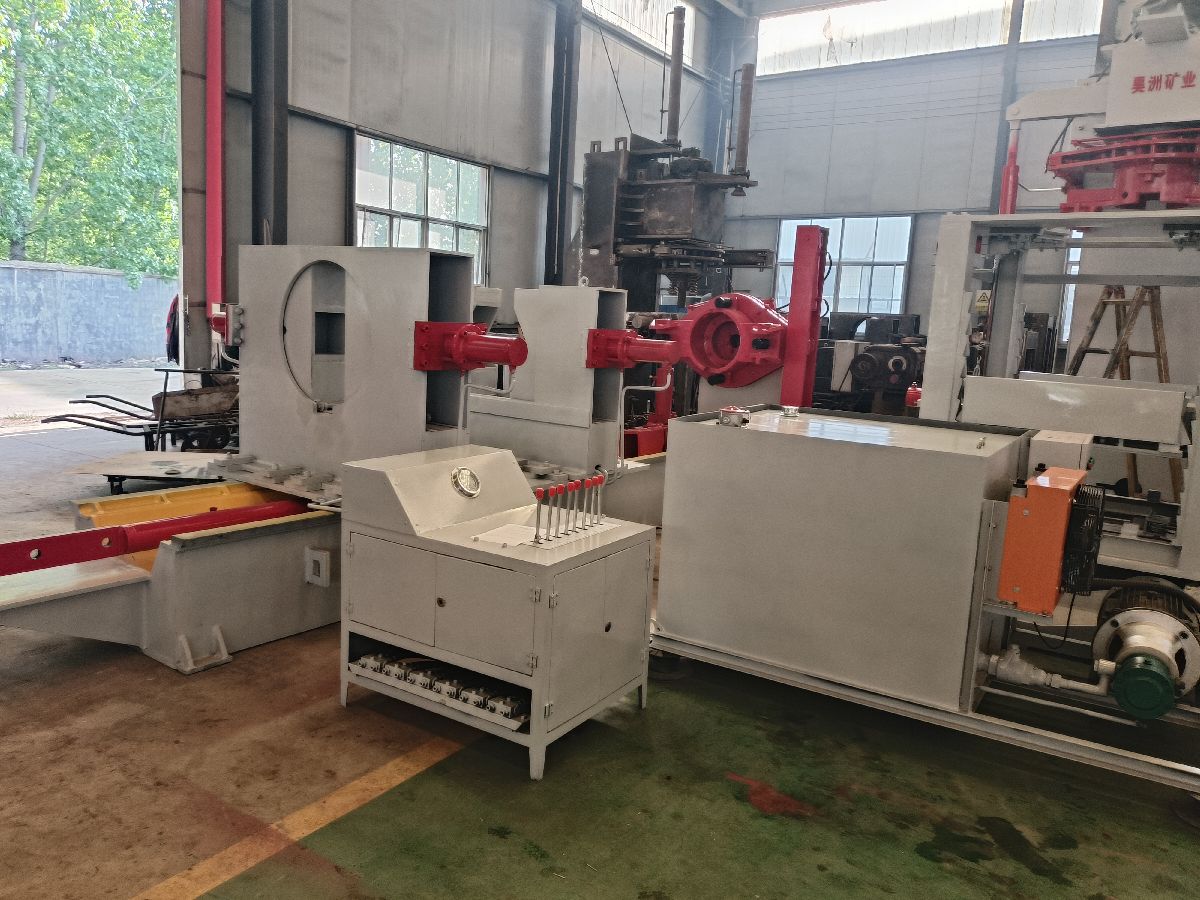

Best Vertical Hydraulic Dismantling Machine

Preparation for new machine operation：

1、Check whether the hydraulic pipeline is connected correctly, and the joints have been tightened in place.

2, get 32 # or 46 # hydraulic oil added to the tank, so that the liquid level to get the working level that the liquid level height to reach the level meter 3 / 4. Hydraulic oil filling must be through the oil filter that special refueling holes, to prevent impurities in the oil into the equipment tank.

3, to the electronic control box into the 380V power supply and zero line, the ground line should be connected to the chassis. Tap the electrical system control button, observe the motor or look at the oil tank, oil bubbling is reversed, and observe the pressure gauge whether there is pressure. The direction of rotation of this pump should be clockwise from the fan end down for the correct steering. Pressure gauge pressure, start the motor, and no-load operation for more than 10 minutes; if the pressure gauge is no pressure, prohibit the start of the motor, otherwise, 2-3 minutes later, the oil pump may burn.

4、Operate the operating handle 4-6 times continuously under no-load condition, and observe whether the operating handle is flexible. Adjust the relief valve, so that the pressure from the bottom to high gradually adjusted until the pressure required for work (less than 16MPa) (factory pressure has been adjusted). Operate the handle and observe whether the machine moves correctly. If the handle is not flexible or the machine does not move correctly, please turn off the power to check.

Technical Parameters：

Main Configurations：

Company Profile：

Shandong Haoshou Mining Safety Equipment Co., Ltd. is located at the foot of the famous Taishan Mountain Daoyue District Daolang Town, 15 kilometers away from the city, with an investment of 60 million yuan covers an area of 23 acres, the construction of 8,000 square meters of plant has been put into use to produce the main column dismantling equipment, pillar maintenance equipment, dynamic safety monitoring system of the roof of the coal mine and a variety of mine pressure observation instruments, is a collection of design, development, manufacturing, equipment installation and after-sales service as a technical enterprise, the company has advanced production equipment, strong technical force, perfect testing equipment and strict management system, production of products favored by the majority of users. It is a technical enterprise integrating design, development, manufacturing, equipment installation and after-sales service. The company has advanced production equipment, strong technical force, perfect testing equipment and strict management system, and the products are favored by the majority of users and have won unanimous praise.

    At present, the company's products have been widely used in: Shenhua Group, Yanzhou Coal, Datong Mining, Zao Mining Group, Xinwen Mining Group, Yong Coal Group, Coking Coal Group, Pingdingshan Coal Mining Group, Jingyuan Coal and other ten major mines in more than a hundred coal mines, and has achieved important results.

    Shandong Haoshou Mining Safety Equipment Co., Ltd. focuses on mine pressure monitoring and management, in-depth research in coal mines, joint innovation together with mines, providing programs and long-term services for the actual situation, and effectively assisting in solving the problem of coal mine safety, and constantly injecting “scientific and technological power” into the construction of “intelligent mines”. The company has been continuously injecting “scientific and technological power” into the construction of “intelligent mine”. The company serves the national users with its high-quality products, and has gained wide praise and affirmation from users from all walks of life.

The customer purchased the column dismantling machine, successfully completed the installation and commissioning acceptance
