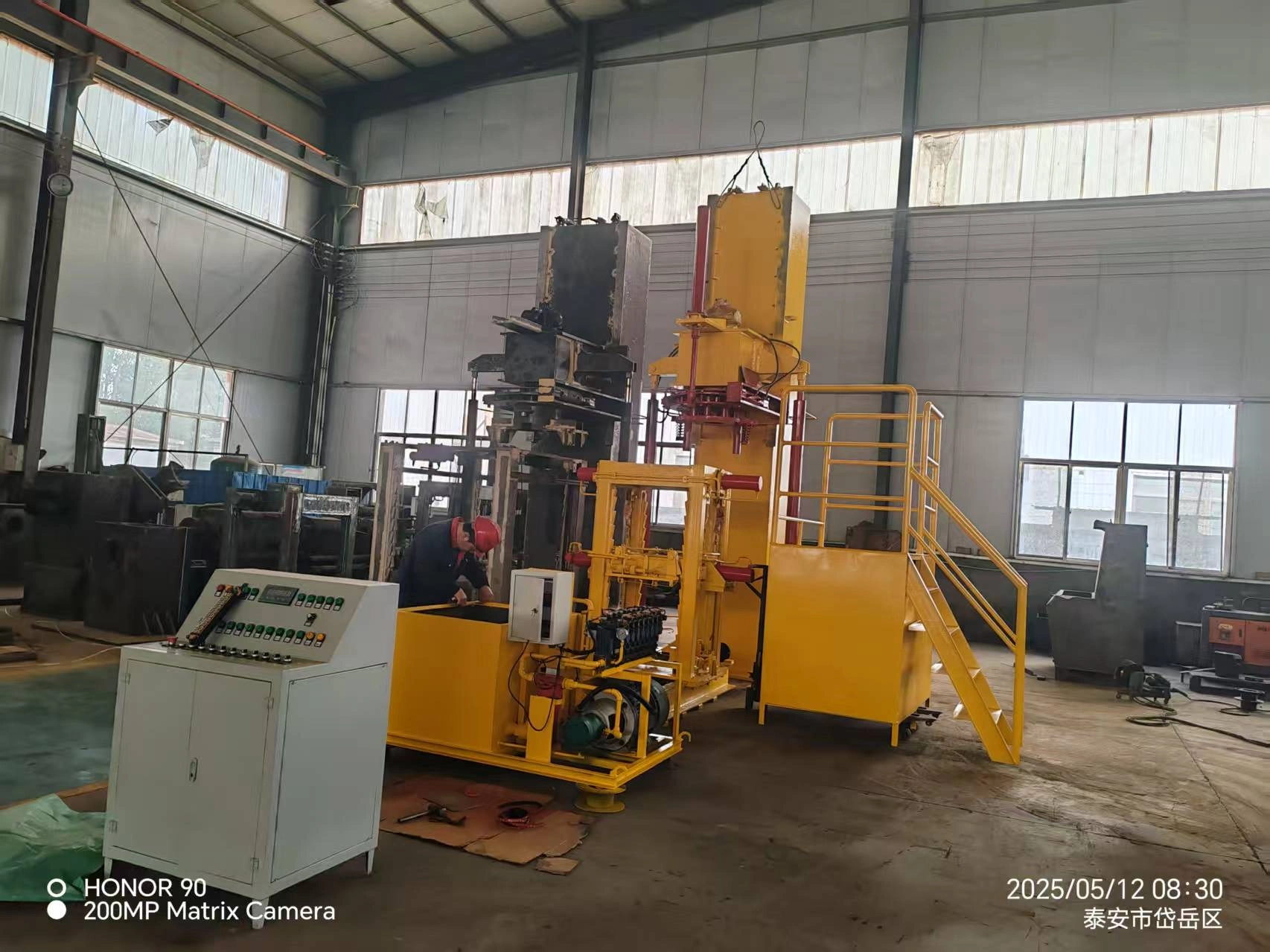

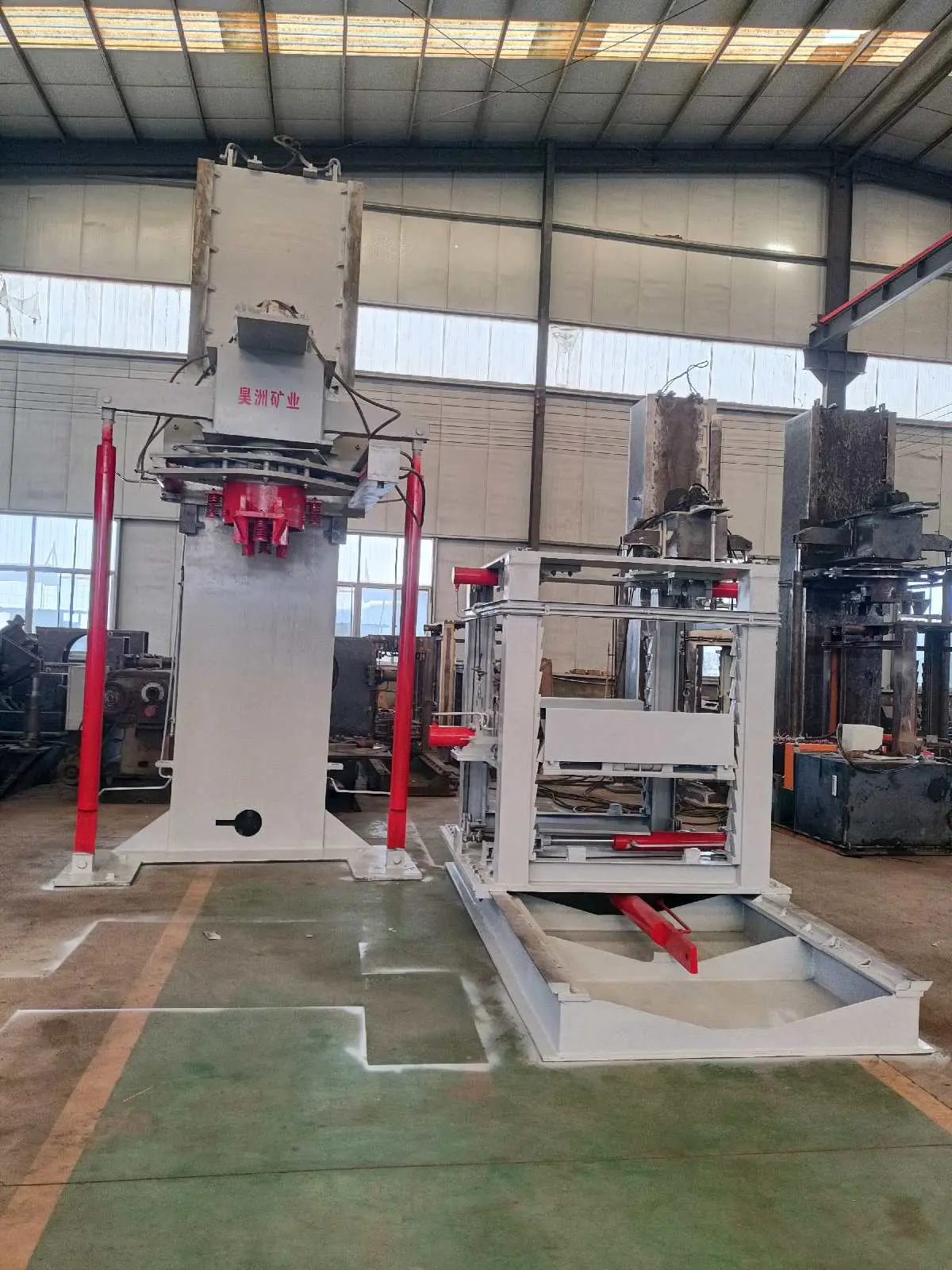

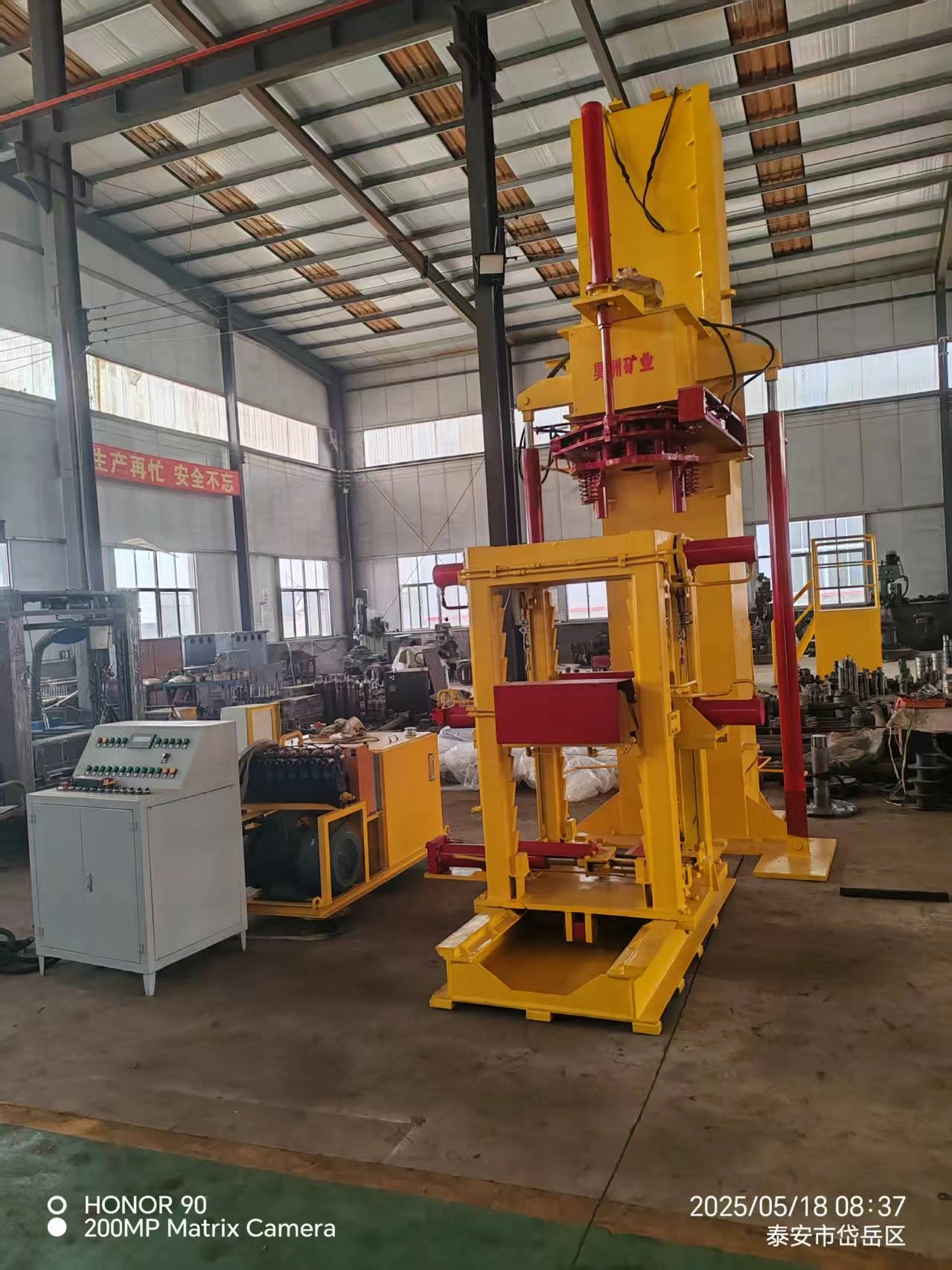

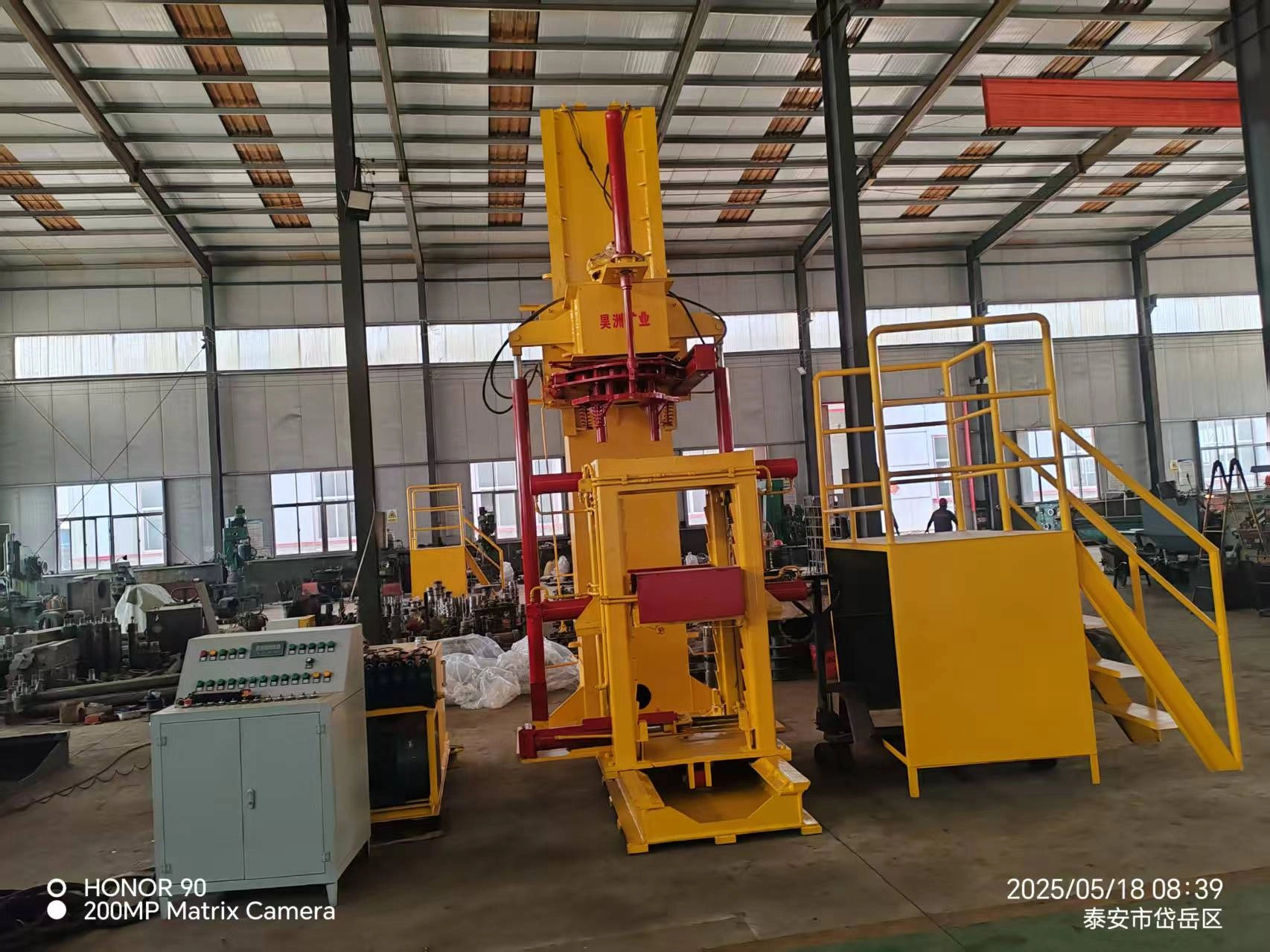

Vertical Cylinder Disassembly Equipmen

Functions and Roles of Vertical Cylinder Disassembly Equipment

Vertical cylinder disassembly equipment is a mechanical device specially used for repair, maintenance and disassembly of hydraulic cylinders. It is widely used in the fields of engineering machinery, metallurgy, shipbuilding, mining and heavy equipment maintenance. Its core function is to safely and efficiently complete the disassembly, inspection and assembly of the cylinder to ensure the stable operation of the hydraulic system.

1. Main functions

Cylinder disassembly and assembly:

Using hydraulic or mechanical power assistance, the piston rod, cylinder barrel, end cover and other components of the cylinder can be quickly disassembled to avoid deformation or damage caused by traditional manual hammering.

Applicable to cylinders of different specifications (small to large), suitable for a variety of sealing structures, such as U-rings, Gley rings, etc.

Safe fixing and positioning:

Equipped with adjustable clamps or V-shaped support seats to ensure that the cylinder remains vertically stable during the disassembly process to prevent deviation or slippage.

Applicable to heavy cylinders (such as excavators and crane hydraulic cylinders) to improve operational safety.

Auxiliary maintenance and inspection:

Some equipment integrates a rotating platform to facilitate 360° inspection of defects such as wear on the inner wall of the cylinder and scratches on the piston rod.

It can be matched with a pressure test module to detect the sealing and pressure resistance of the cylinder.

Waste oil recovery and environmental protection:

Built-in oil collection tank or diversion device to collect hydraulic oil leaked during disassembly, reduce pollution and meet environmental protection requirements.

2. Core role

Improve maintenance efficiency: Mechanized operation is more than 50% faster than traditional manual disassembly and assembly, especially suitable for rusted or high-precision cylinders.

Ensure maintenance quality: Avoid thread damage and seal rupture caused by violent disassembly, and extend the service life of the cylinder.

Reduce labor intensity: Reduce high-risk operations such as manual handling and hammering, and improve operational safety.

Adapt to diverse needs: Can expand functions such as ultrasonic cleaning and coaxiality detection to achieve integrated "disassembly, inspection and repair".

3. Typical application scenarios

Hydraulic system maintenance: seal replacement, piston rod repair, cylinder polishing, etc.

Fault diagnosis: Check internal wear, corrosion or foreign body jamming after disassembly.

Batch maintenance: suitable for maintenance workshops, equipment manufacturers and large industrial and mining enterprises.

4. Summary

Vertical cylinder disassembly equipment greatly improves the maintenance efficiency and quality of hydraulic cylinders through precise and safe mechanical operation, and is a key tool for modern hydraulic system maintenance. With the development of intelligence, it may integrate advanced technologies such as automatic centering and force control sensing in the future to further optimize the maintenance process.

Technical Parameters：
