Horizontal Cylinder Disassembly Machine Price
Disassembling large cylinders is a process that often requires heavy work and specialized equipment
1. Sturdy full-length table design
2, Vehicle skateboard and height adjustable chain fastening tool
3. PLC control display HMI
4. Integrated cylinder pressure test function
5. True "single operator" function
6. Affordable tools
7. The machine cost is low, the whole vehicle cost is low, and the installation is easy

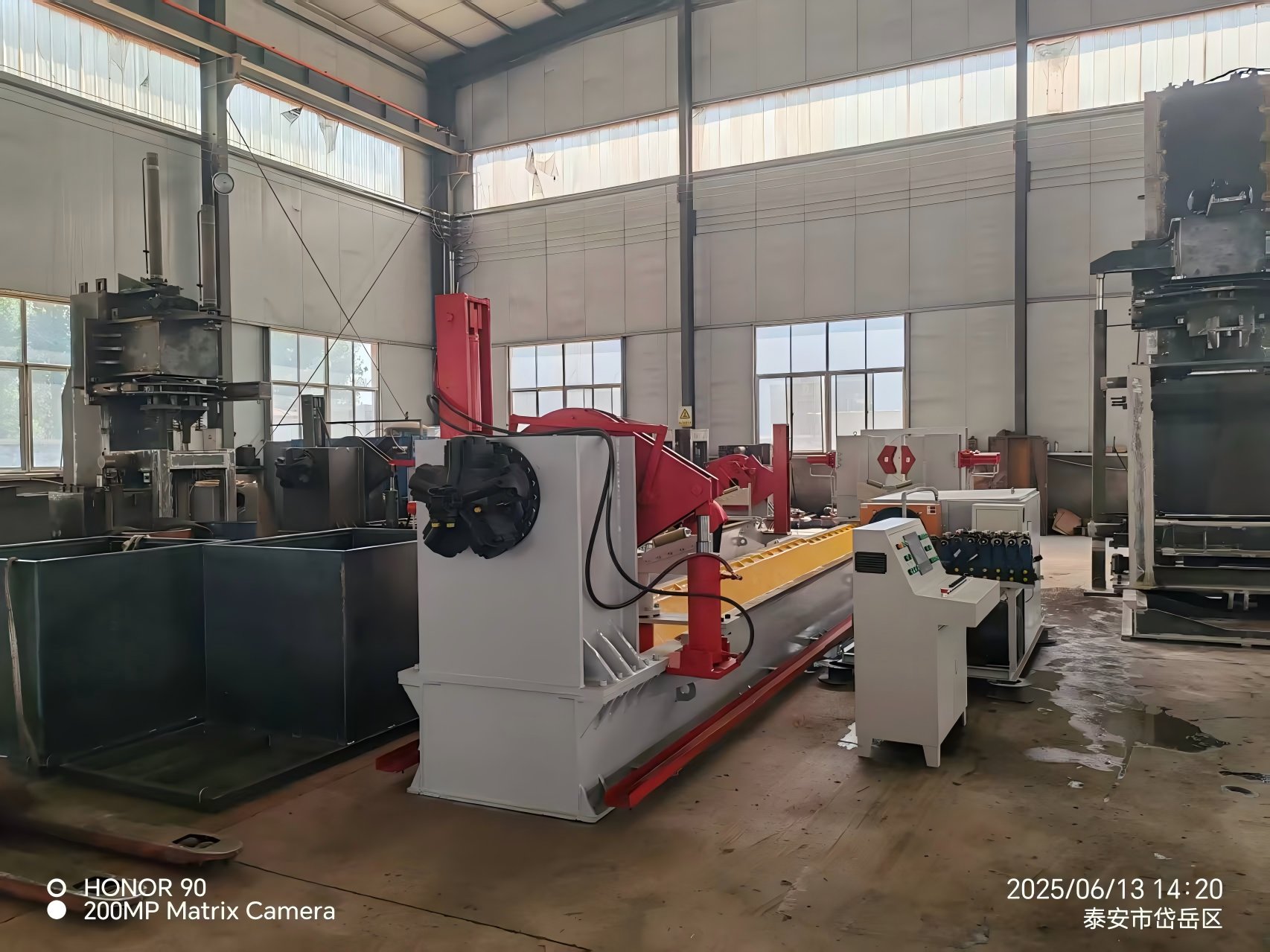

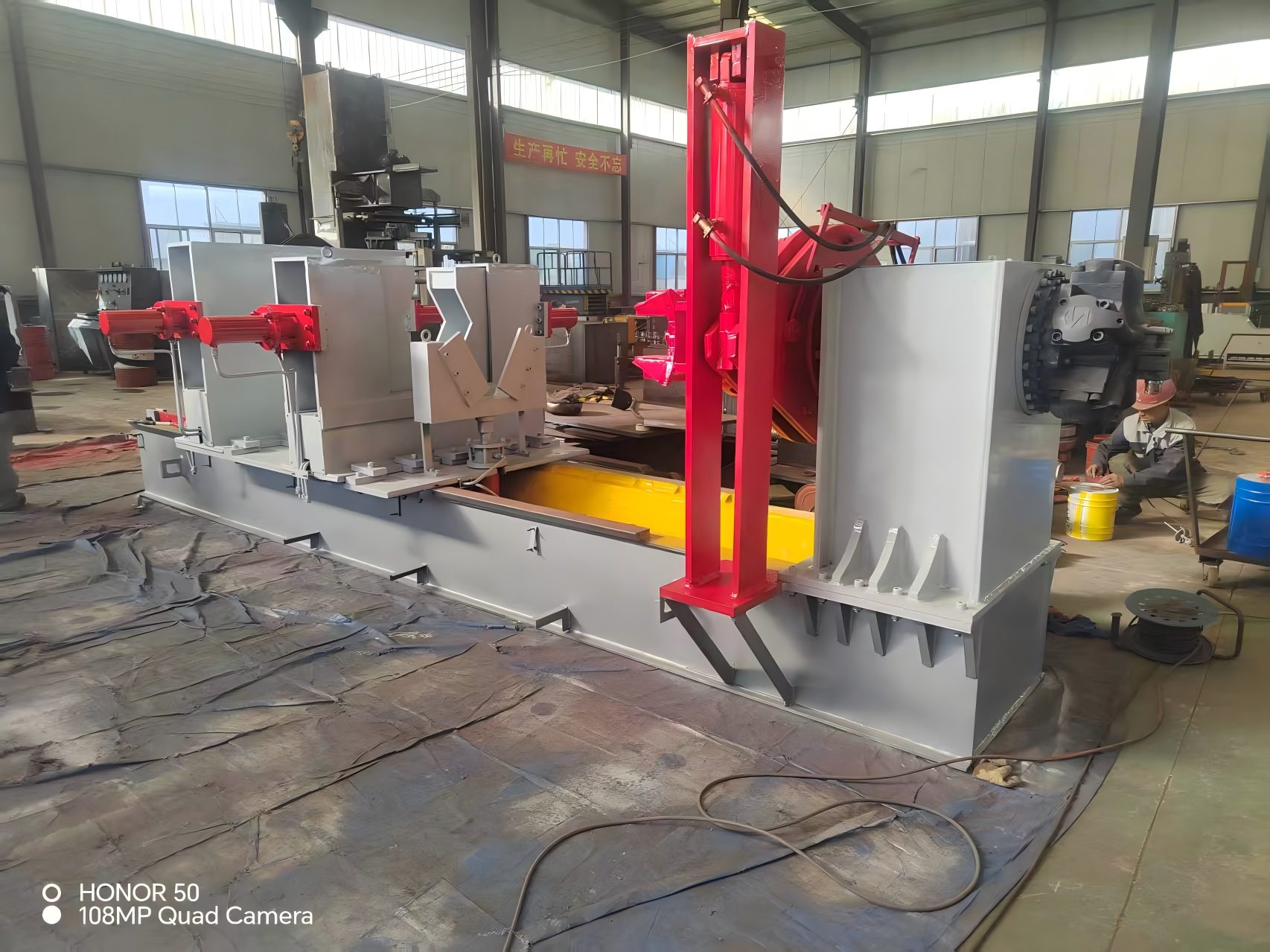

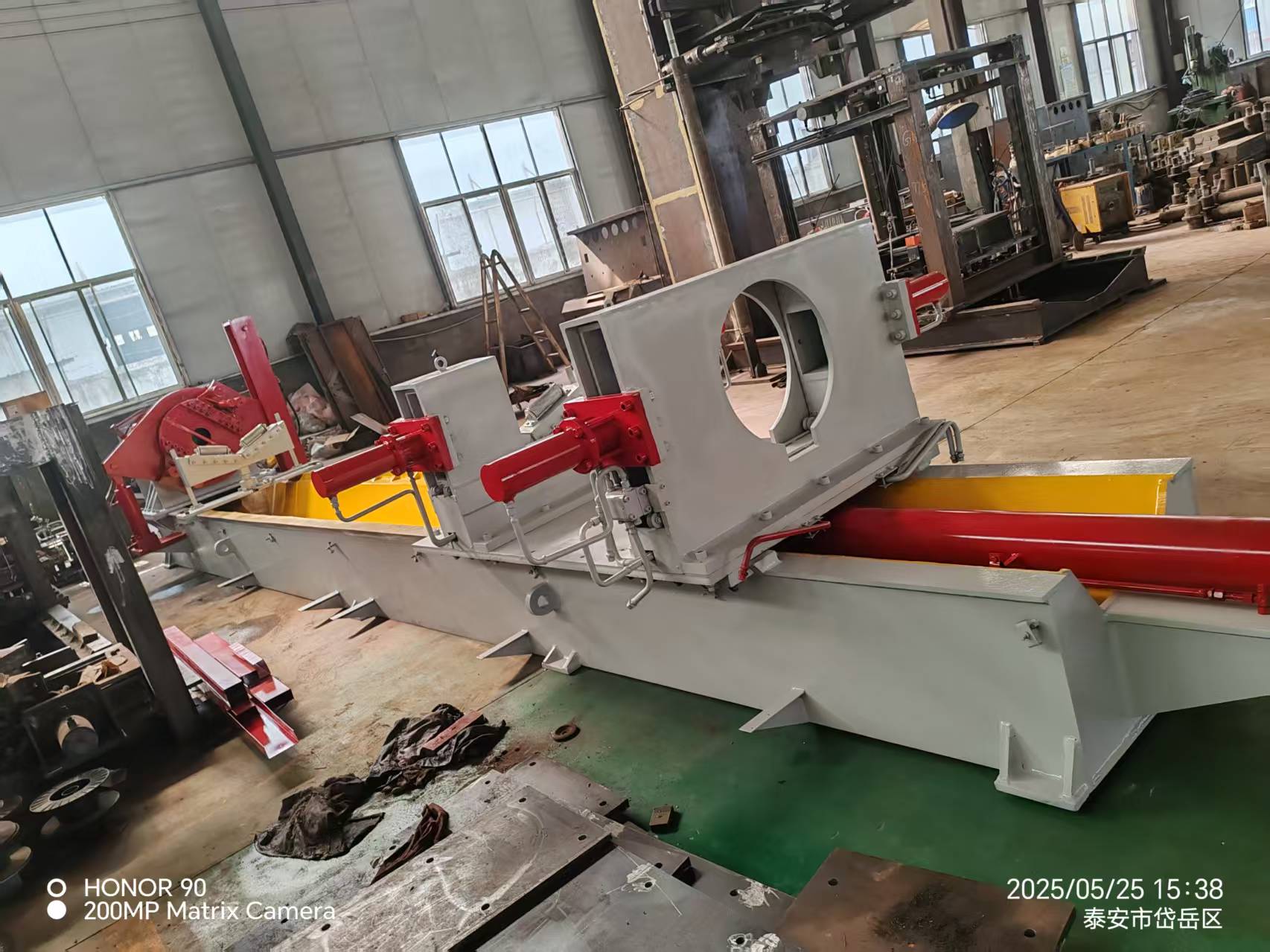

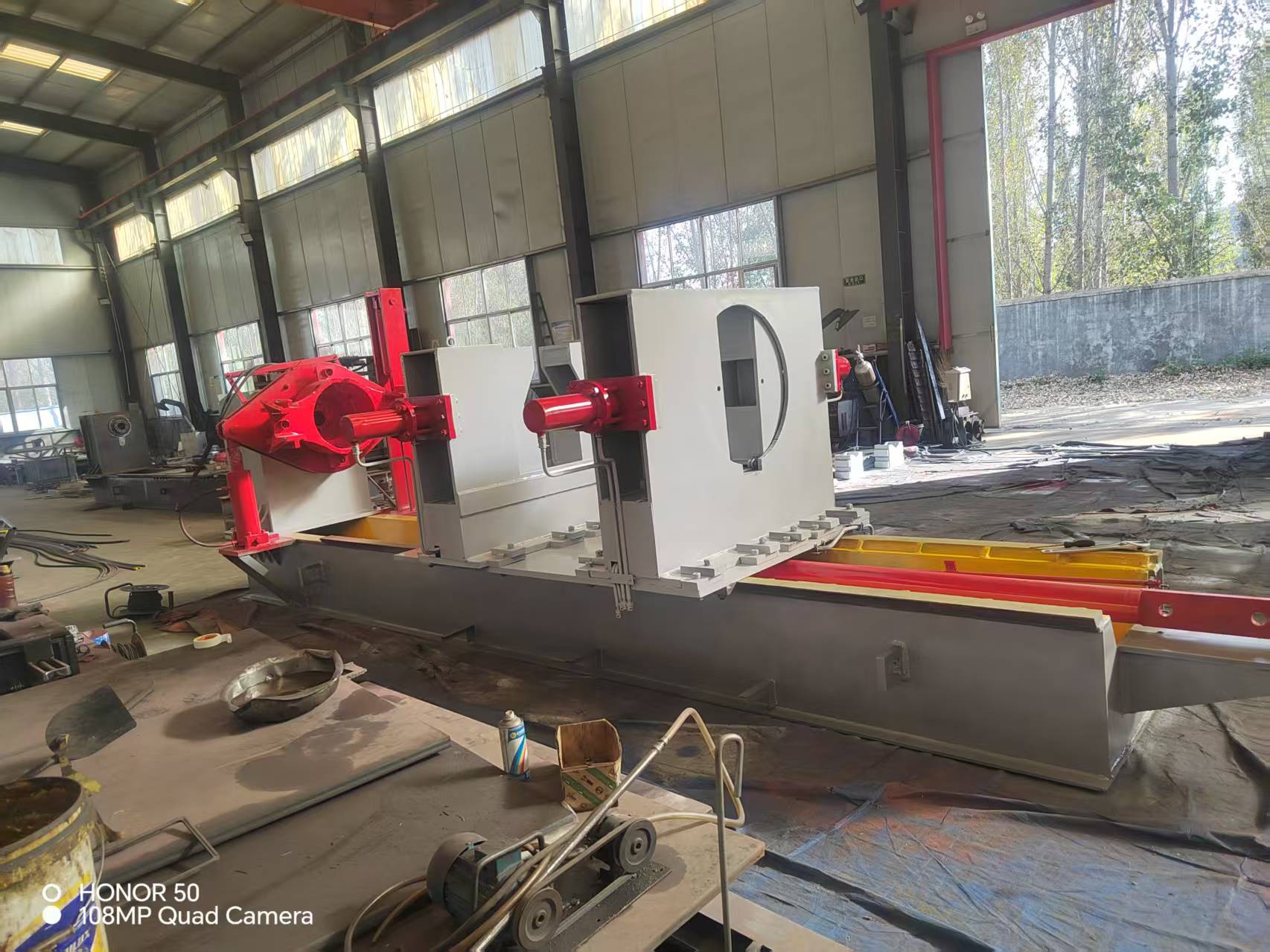

Horizontal Cylinder Disassembly Machine:
Horizontal Cylinder Disassembly Machine is a professional equipment specially designed for hydraulic cylinder detection, maintenance and performance test. Its core functions include:
Load simulation: provide controllable external force for the tested hydraulic cylinder through the load hydraulic cylinder, and simulate the pressure and load under the actual working condition.
Multi-parameter measurement: integrating pull pressure sensor, pressure sensor, etc. to monitor key parameters such as output force of hydraulic cylinder, pressure of rodless cavity/rod cavity and friction force in real time.
Structural adaptability: movable vertical frame and track design are adopted to support rapid installation and position adjustment of hydraulic cylinders of different specifications and meet the maintenance requirements of diversified cylinder diameter and stroke.
Modular expansion: some models (such as movable horizontal test stand with patent design) support flexible combination of load hydraulic cylinder and tested cylinder to meet the test under complex working conditions.
Core Features:
1.High-precision test capability
Real-time display of parameters: graphical interface can display pressure, force, displacement and other data intuitively, support curve generation and storage, and facilitate fault analysis.
Calculation of friction force: accurately calculate the friction force in the movement of the hydraulic cylinder through the data of the pressure sensor and the pulling pressure sensor, and assist in determining the wear of the sealing parts or the piston clamping stagnation.
Automatic control: frequency conversion drive and PLC programming realize accurate adjustment of pressure, speed and stroke, and support constant pressure and constant range process modes.
2.Structural Safety and Flexibility
Anti-over design: the vertical frame and the base are connected by moving components, so as to ensure the stability of the tested hydraulic cylinder during rotation or movement and avoid equipment overturning due to the offset of the center of gravity.
Load dispersion mechanism: the shaft design with bearings at both ends converts the radial force of the loaded hydraulic cylinder into rolling friction, reduces the lateral pressure on the piston rod and prolongs the service life of the seal.
Quick type change: realize fast clamping and positioning of hydraulic cylinder through mechanical structures such as pin roll and sliding block, and shorten maintenance preparation time.
Technical parameters:
Hydraulic Drive Motor | 18.5KW -4 stage |
Motor Disassembly Torque | 30000N.m |
Total Flow of Hydraulic Motor | 56L/min |
Pumping Station Pressure | 31.5Mpa |
Motor Working Pressure | 25Mpa |
Afterburner Torque | 300000N.m |
Maximum Thrust of The Clamping Cylinder | 265KN |
Maximum Pulling Force | 180KN |
Disassemble The Bore | 50-500 |
Translational Cylinder Stroke | 2100mm |
Secondary Cylinder Clamping | V-shaped tooth plate clamping |
How it Works | Control valve/button electric control/remote control |
Dimensions | 7000×2400×1700mm |
Product configuration:
| Name | Model | Quantity |
| Motor | 18.5KW | 1 unit |
| Hydraulic Motor | HZKY-01-001 | 1 unit |
| Oil Pump | HZKY-01-002 | 1 unit |
| Control Valves | HZKY-01-003 | 8 groups |
| Afterburner Cylinders | HZKY-01-004 | 2 pcs |
| Tighten Up Left and Right | HZKY-01-005 | 2 pcs |
| Auxiliary Cylinders | HZKY-01-006 | 1 pc |
| High-pressure Hose | 34 articles |
