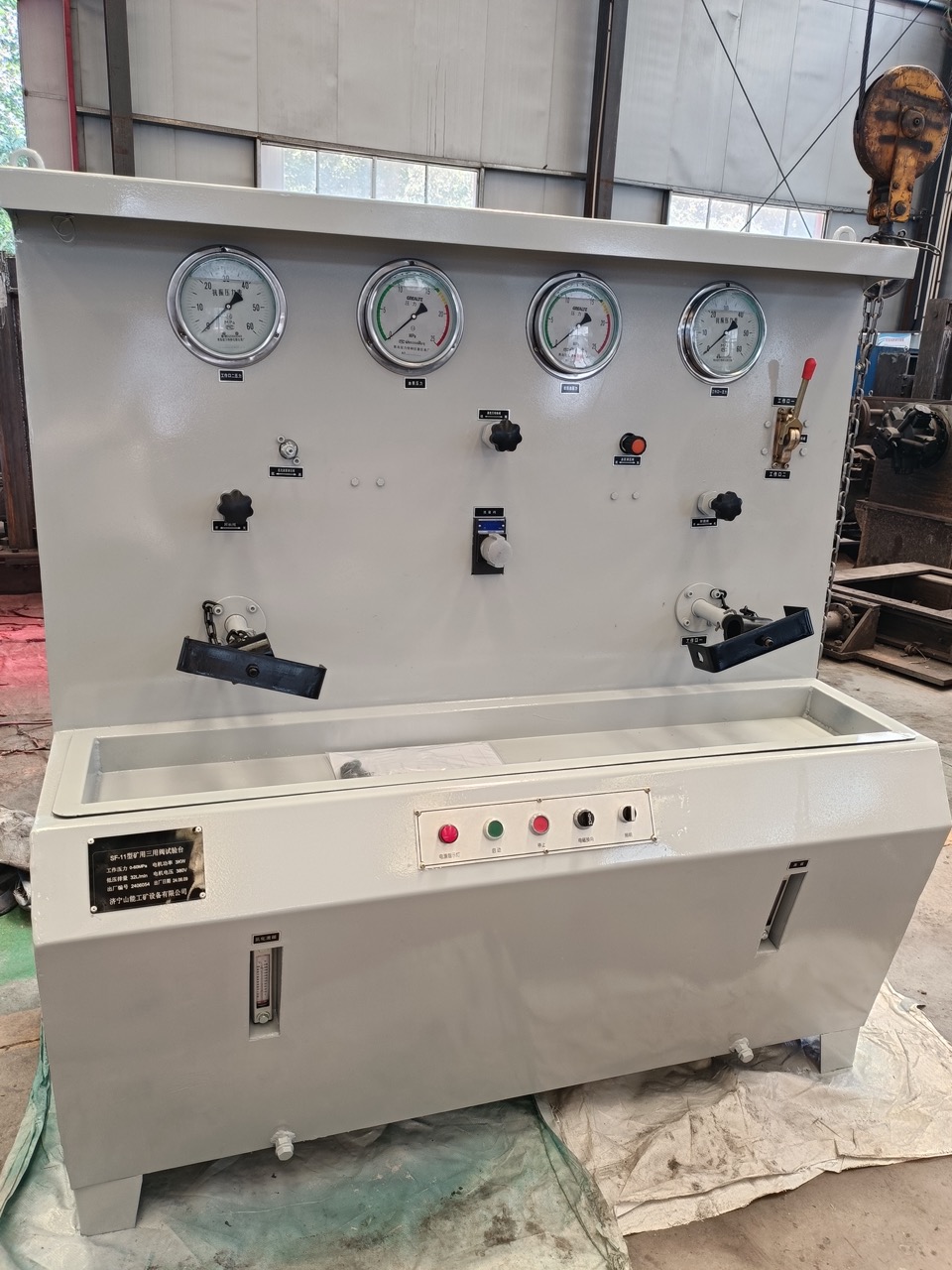

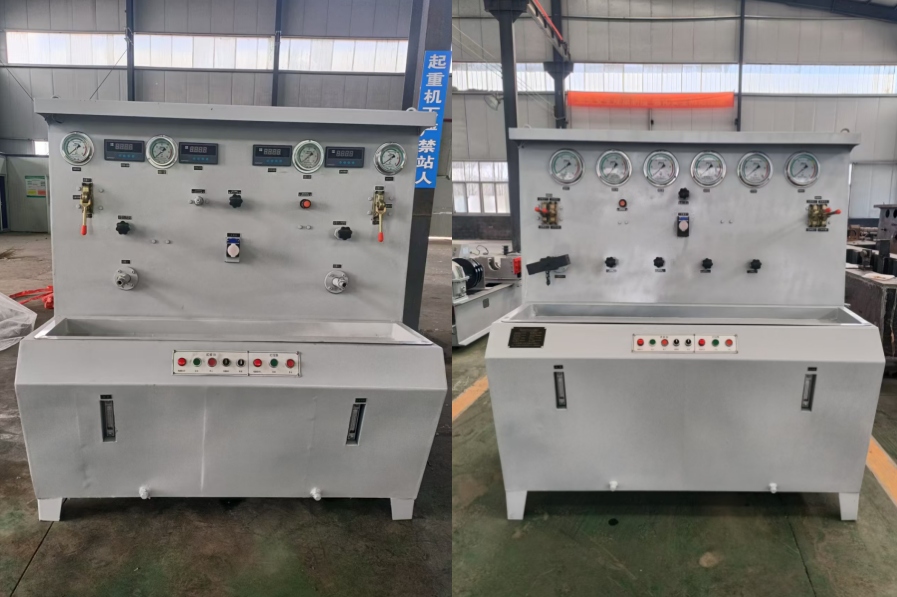

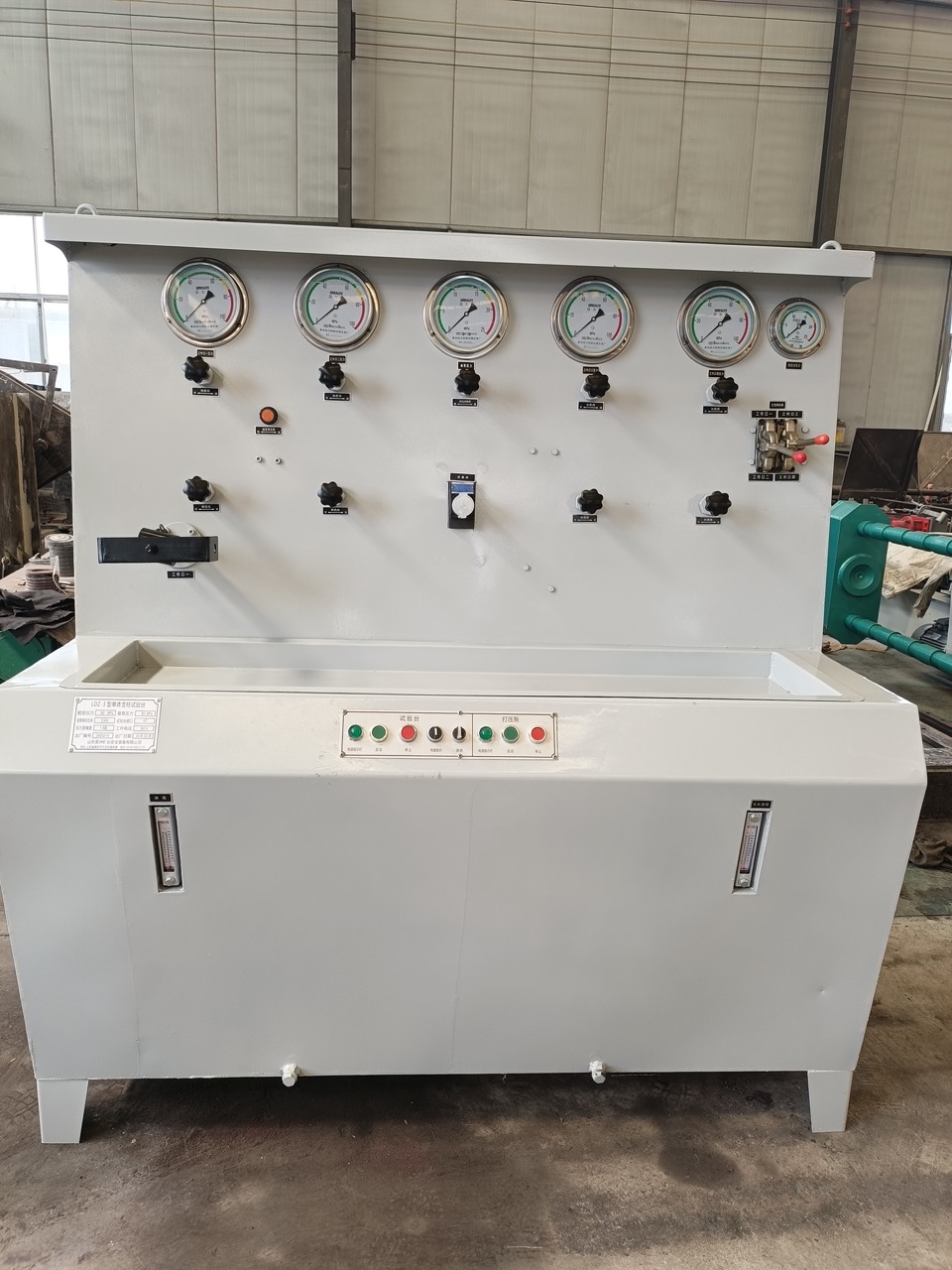

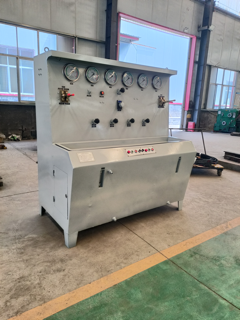

Safety Valve Test Bench
1. Automation and Intelligence
2. Safety and reliability
3. Convenience of operation
4. Multi functional integration
As the core equipment for testing mining hydraulic equipment, Safety Valve Test Bench has the characteristics of automation control, safety and reliability, convenient operation, and multifunctional integration.
Safety Valve Test Bench characteristic：
1. Convenience of operation
Modular design: The test bench consists of modules such as hydraulic system, emulsion system, electrical system, etc., with a clear structure that is easy to maintain and upgrade.
Human computer interaction interface: adopting a friendly operation interface, supporting functions such as experimental parameter setting, data query, report generation, etc., reducing the operating threshold.
2. Multi functional integration
Multi interface parallel testing: With multiple independent valve testing interfaces, multiple three-way valves can be tested simultaneously, saving waiting time and improving work efficiency.
Strong compatibility: Supports detection of different models of three-way valves and can be extended to pump stations to provide high and low pressure filling services for individual hydraulic supports.
Product execution standards and main technical parameters：
1. MT4419-95 "Valve for Hydraulic Support"
2. MT112-93 "Mining Single Hydraulic Support Column"
3. 112.1-2006 "Test Method for Hydraulic Prop"
Name | Parameter | Name | Parameter |
Experimental working pressure | 0-60Mpa | maximum pressure | 50Mpa |
Low pressure adjustment range | 0-6Mpa | High pressure adjustment range | 2-50 Mpa |
Liquid medium | 3-5% emulsion | motor | 3KW |
Low pressure liquid displacement | 32L/min | High pressure liquid displacement | 1.2L/time |
Oil medium | 30 # mechanical oil | voltage | 380V |
Dimensions (length x width x height) | 1.62 x 0.95 x 1.76m | total weight | 600kg |
