Test Bench Valve
1. Automation and Intelligence
2. Safety and reliability
3. Convenience of operation
4. Multi functional integration

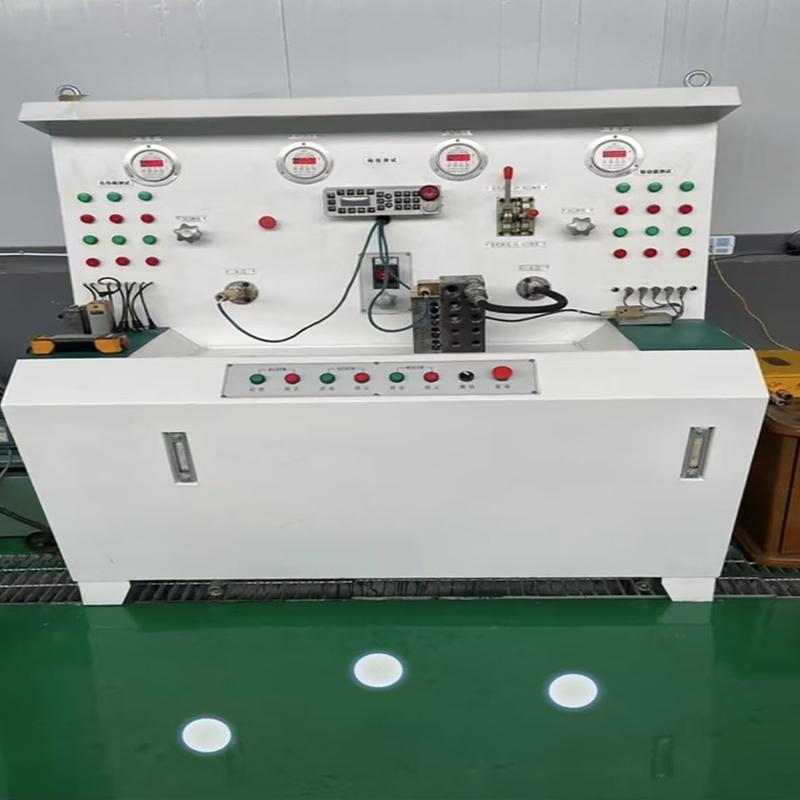

Test Bench Valve:
As the core equipment for testing mining hydraulic equipment, Safety Valve Test Bench has the characteristics of automation control, safety and reliability, convenient operation, and multifunctional integration.
Test Bench Valve characteristic：
1. Convenience of operation
Modular design: The check bench consists of modules such as hydraulic system, emulsion system, electrical system, etc., with a clear shape that is effortless to preserve and upgrade.
Human pc interplay interface: adopting a pleasant operation interface, assisting features such as experimental parameter setting, records query, file generation, etc., lowering the running threshold.
2. Multi useful integration
Multi interface parallel testing: With a couple of unbiased valve checking out interfaces, a couple of three-way valves can be examined simultaneously, saving ready time and enhancing work efficiency.
Strong compatibility: Supports detection of exceptional fashions of three-way valves and can be extended to pump stations to supply excessive and low strain filling offerings for person hydraulic supports.
Product execution requirements and foremost technical parameters：
1. MT4419-95 "Valve for Hydraulic Support"
2. MT112-93 "Mining Single Hydraulic Support Column"
3. 112.1-2006 "Test Method for Hydraulic Prop"
Name | Parameter | Name | Parameter |
Experimental working pressure | 0-60Mpa | maximum pressure | 50Mpa |
Low pressure adjustment range | 0-6Mpa | High pressure adjustment range | 2-50 Mpa |
Liquid medium | 3-5% emulsion | motor | 3KW |
Low pressure liquid displacement | 32L/min | High pressure liquid displacement | 1.2L/time |
Oil medium | 30 # mechanical oil | voltage | 380V |
Dimensions (length x width x height) | 1.62 x 0.95 x 1.76m | total weight | 600kg |
