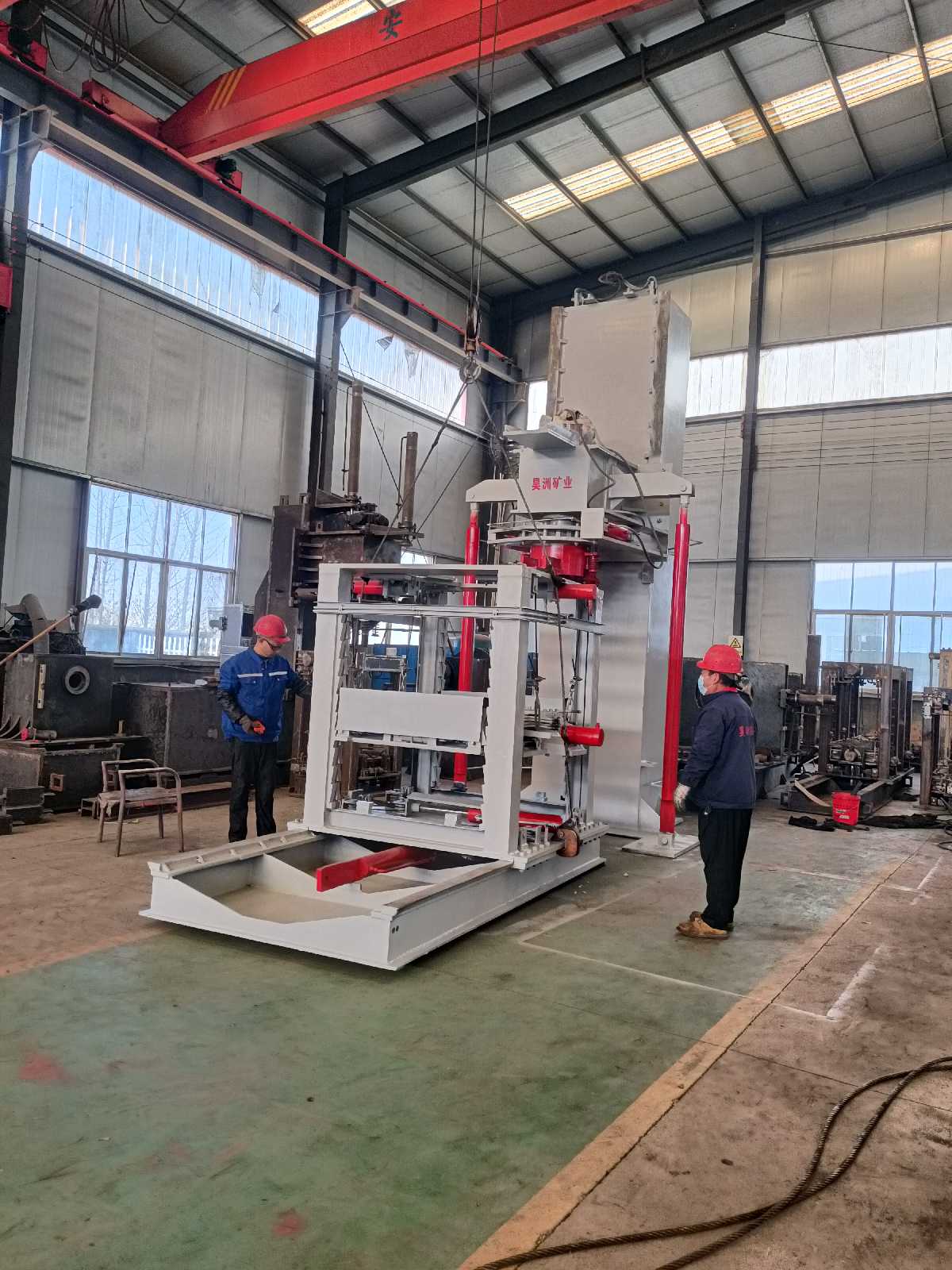

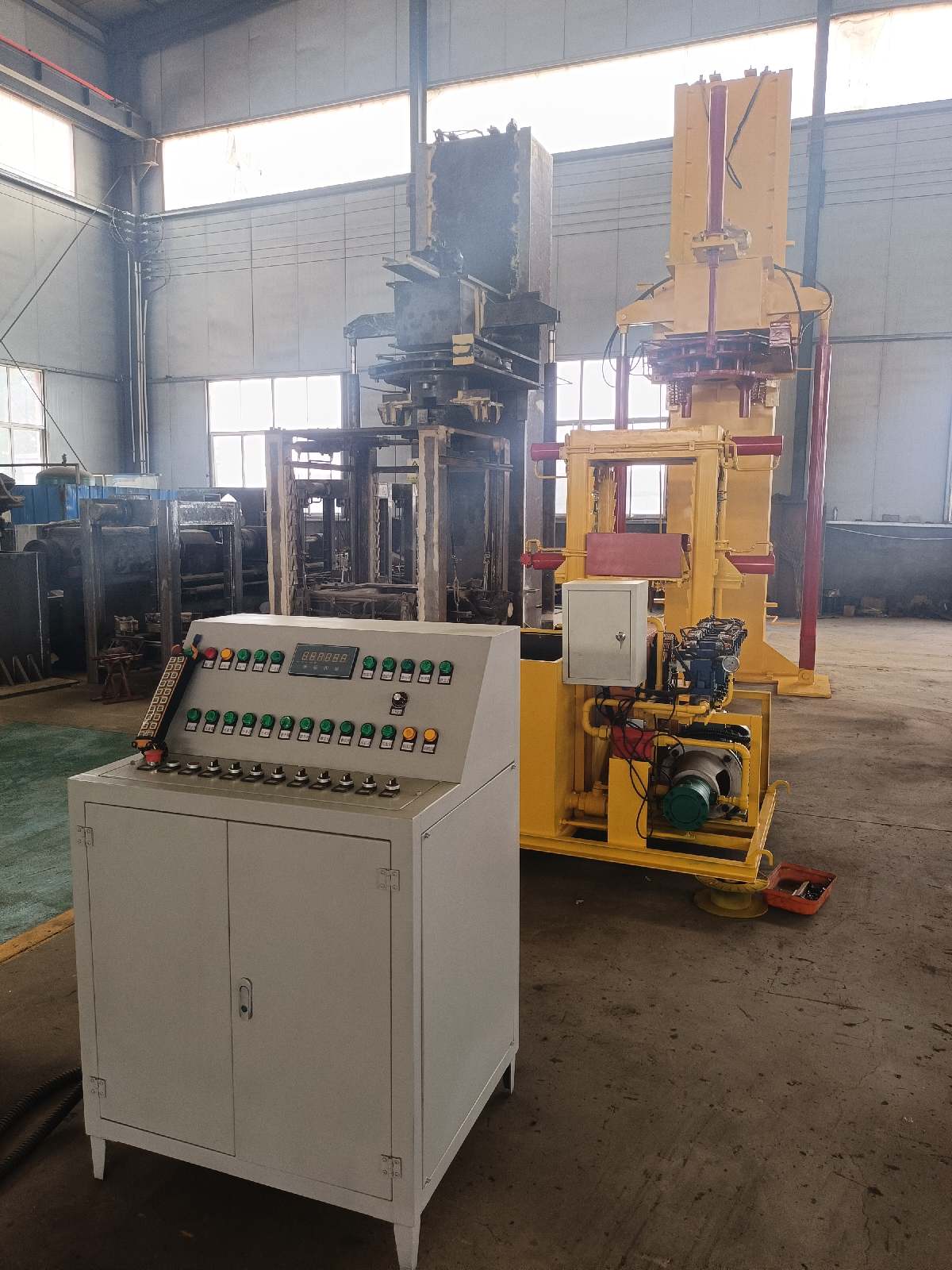

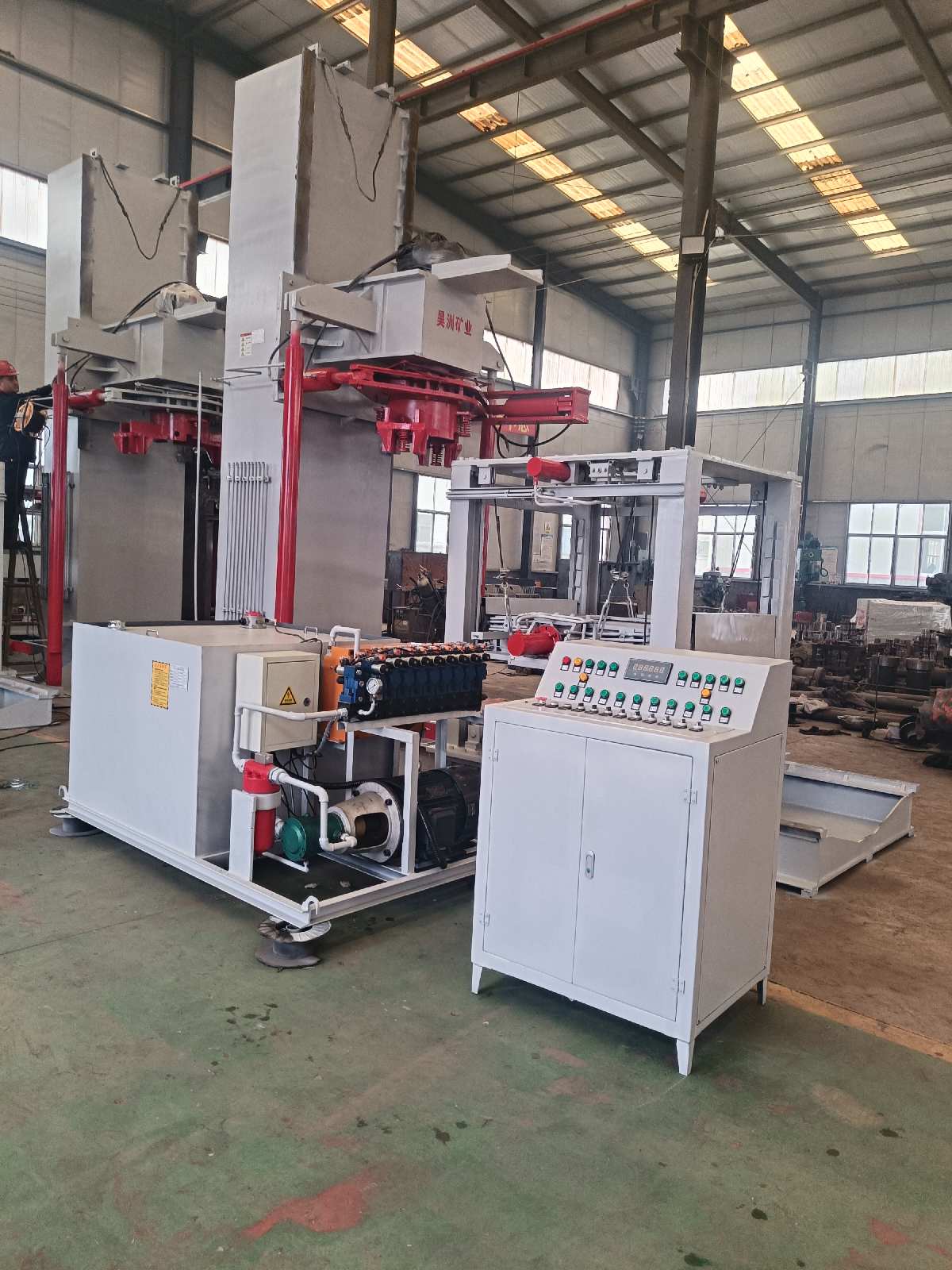

Mining Machinery Cylinder Disassembler
It adopts vertical disassembling mode, the biggest advantage is to solve the problem of seal damage or deformation caused by the extrusion of seal in vertical direction in horizontal assembly, and avoid the occurrence of wrong buckle, messy buckle, effectively improve the assembly quality. Vertical disassembly reduces the footprint of the equipment, and because of its disassembly height is appropriate, easy to observe, mold disassembly is more convenient, fast and accurate, so that the efficiency of the work is greatly improved, this machine is a single mold double-station, were used for column up and down and disassembly work, the workstation longitudinal arrangement.
Preparation for new computing device operation:
1、Check whether or not the hydraulic pipeline is linked correctly, and the joints have been tightened in place.
2, get 32 # or forty six # hydraulic oil introduced to the tank, so that the liquid stage to get the working degree that the liquid stage peak to attain the stage meter three / four Hydraulic oil filling have to be via the oil filter that different refueling holes, to stop impurities in the oil into the tools tank.
3, to the digital manipulate container into the 380V energy grant and zero line, the floor line have to be linked to the chassis. Tap the electrical gadget manage button, have a look at the motor or appear at the oil tank, oil effervescent is reversed, and have a look at the stress gauge whether or not there is pressure. The path of rotation of this pump must be clockwise from the fan stop down for the right steering. Pressure gauge pressure, begin the motor, and no-load operation for extra than 10 minutes; if the stress gauge is no pressure, limit the start of the motor, otherwise, 2-3 minutes later, the oil pump may additionally burn.
4、Operate the working cope with 4-6 instances continually underneath no-load condition, and have a look at whether the working take care of is flexible. Adjust the comfort valve, so that the strain from the backside to excessive step by step adjusted until the strain required for work (less than 16MPa) (factory stress has been adjusted). Operate the cope with and examine whether or not the laptop strikes correctly. If the take care of is no longer bendy or the computing device does no longer go correctly, please flip off the energy to check.
Technical Parameters：
Dismantling column specifications | Cylinder diameter ≤500mm |
Applicable cylinder length | ≤2500mm; |
Motor dismantling torque | 30000N.m |
Addition cylinder torque | 300000N.m |
Motor power | 18.5kW |
Flow rate | 56L/min |
System pressure | 25Mpa |
External dimensions (L×W×H) | 5×2.35×5.2m (underground part 1.7m) |
Feeding trolley forward and backward travel distance | 1600mm |
Dismantling cylinder stroke | 1200-2200mm |
Clamping cylinder stroke | 200mm |
Clamping diameter range | ≤600mm |
Base lifting | 800mm |
Base | Automatic clamping |
Operation method | Manual direction change operation |
Weight | 14.5T |
Main Configurations：
Name | Model | Number |
Motor | 18.5KW | 1 unit |
Hydraulic Motor | HZYZ7 | 1 unit |
Oil Pump | 40MCY14-1B | 1 unit |
Manipulator Valve | ZS1- L20E-80TYW | 11 sets |
Acceleration Cylinder | ¢125 Stroke 250 mm | 2 units |
Lift Motor Cylinder | ¢100 Stroke 2.1m | 2 units |
Feeding Trolley Cylinder | ¢100 Stroke 1.6m | 1 unit |
Lifting Trolley Cylinder | ¢100 Stroke 600mm | 1 unit |
Right and Left Holding Cylinder | ¢80 Stroke 250 mm | 2 units |
Right and Left Tightening | ¢100 Stroke 250mm | 2 units |
Backstop Cylinder | ¢63 Stroke 60mm | 1 unit |
High pressure hose | 64 bars |
