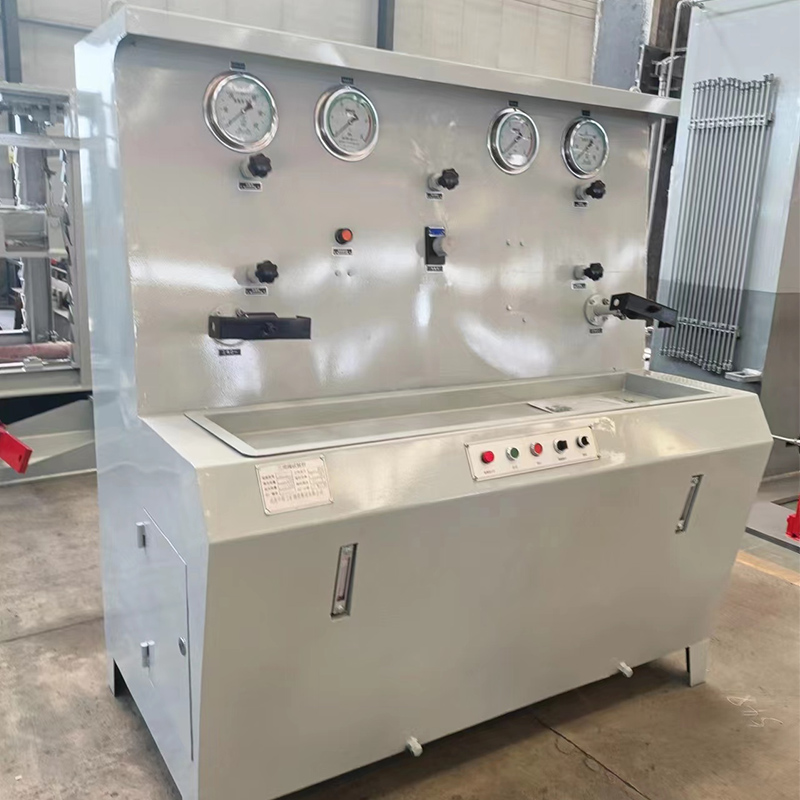

Triple Valve Test Bench
Dual-Media Compatibility: Supports both emulsion and hydraulic oil testing, meeting diverse mining hydraulic equipment requirements.
Enhanced Operational Efficiency: Manual directional valve design improves reliability and reduces maintenance needs compared to shut-off valves.
Intelligent Pressure Control: Features rapid filling and automatic slow pressurization for precise, stable test conditions.
Comprehensive Standard Compliance: Meets all major Chinese mining hydraulic equipment testing standards (MT4419, MT112, etc.).
Compact & Robust Design: Heavy-duty 600kg construction with optimized footprint (1.62m×0.95m) for workshop deployment.
Product Introduction
The SF-2 Triple Valve Test Bench was developed after comprehensive research visits to coal mines nationwide, incorporating the advantages of various domestic and international test benches. This new test bench can be widely used for factory testing of coal mine triple valves, pre-use sealing tests, and pressure setting of safety valves. It can also serve as a sealing and operational test bench for various hydraulic components of powered support systems.
Features
Based on the MT119-85 "Type Test Specification for Hydraulic Support Valves in Coal Mines" and the "High-Pressure Hose for Mining" standards, the test bench uses emulsion and hydraulic oil as working media. Its main performance parameters ensure safe and reliable testing and adjustment of mining hydraulic products and components. The manual directional valve operation replaces the original shut-off valve, making operation easier, more reliable, and durable while improving overall stability. The test bench exclusively uses domestically produced standard hydraulic components for easy maintenance. With rapid liquid injection and automatic slow pressurization functions, it enhances testing speed and stability.
Product Standards and Main Technical Parameters
MT4419-95 "Valves for Hydraulic Supports"
MT112-93 "Single Hydraulic Props for Mining"
112.1-2006 "Test Methods for Hydraulic Props"
| Name | Parameter | Name | Parameter |
|---|---|---|---|
| Test Working Pressure | 0-60 MPa | Maximum Pressure | 50 MPa |
| Low Pressure Adjustment Range | 0-6 MPa | High Pressure Adjustment Range | 2-50 MPa |
| Liquid Medium | 3-5% Emulsion | Motor | 3 KW |
| Low Pressure Liquid Displacement | 32 L/min | High Pressure Liquid Displacement | 1.2 L/stroke |
| Oil Medium | #30 Machine Oil | Voltage | 380 V |
| Dimensions (L×W×H) | 1.62×0.95×1.76 m | Weight | 600 kg |
