Horizontal Cylinder Disassembly Machine for Sale
Disassembling large cylinders is a process that often requires heavy work and specialized equipment
1. Sturdy full-length table design
2, Vehicle skateboard and height adjustable chain fastening tool
3. PLC control display HMI
4. Integrated cylinder pressure test function
5. True "single operator" function
6. Affordable tools
7. The machine cost is low, the whole vehicle cost is low, and the installation is easy

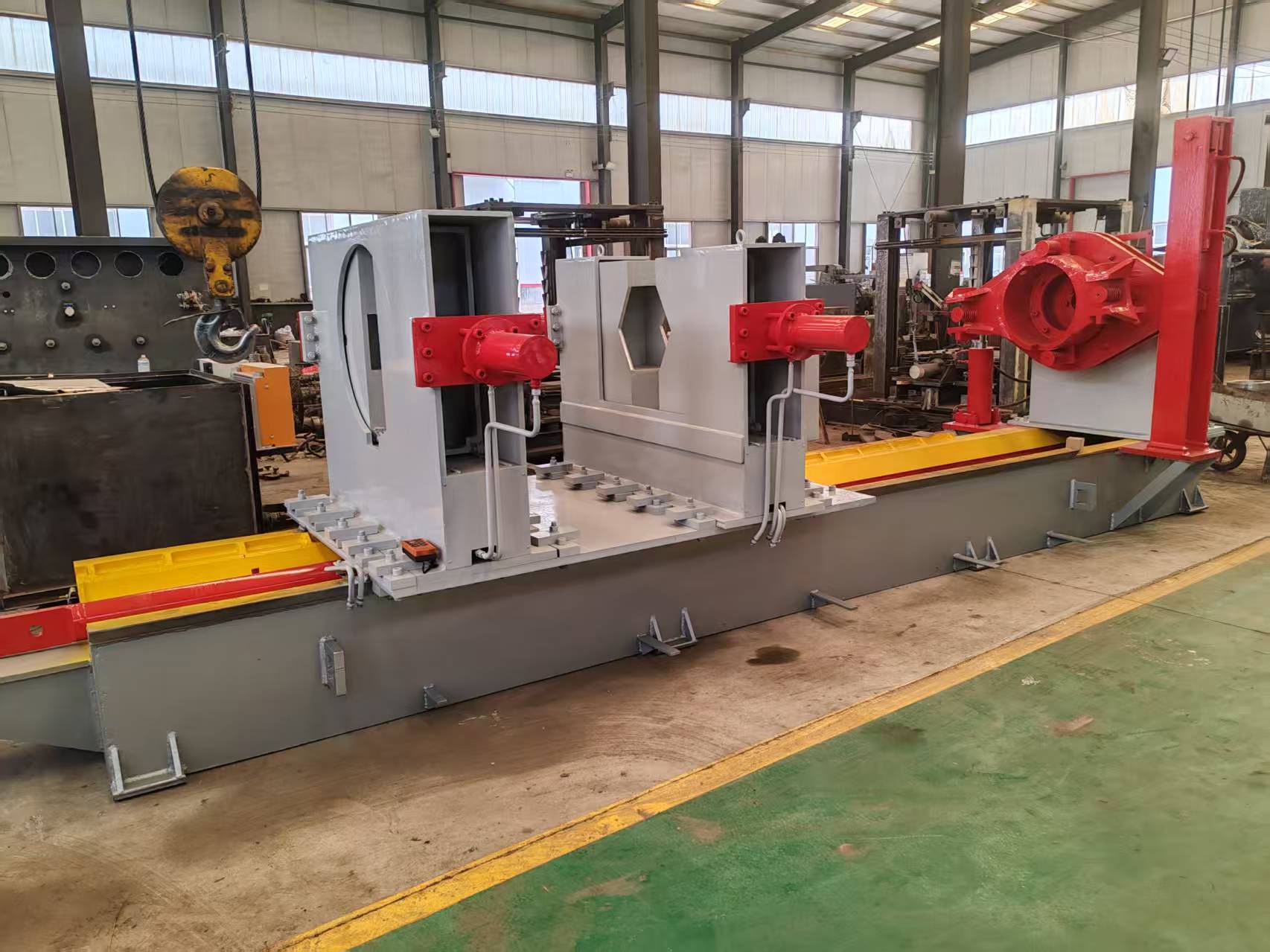

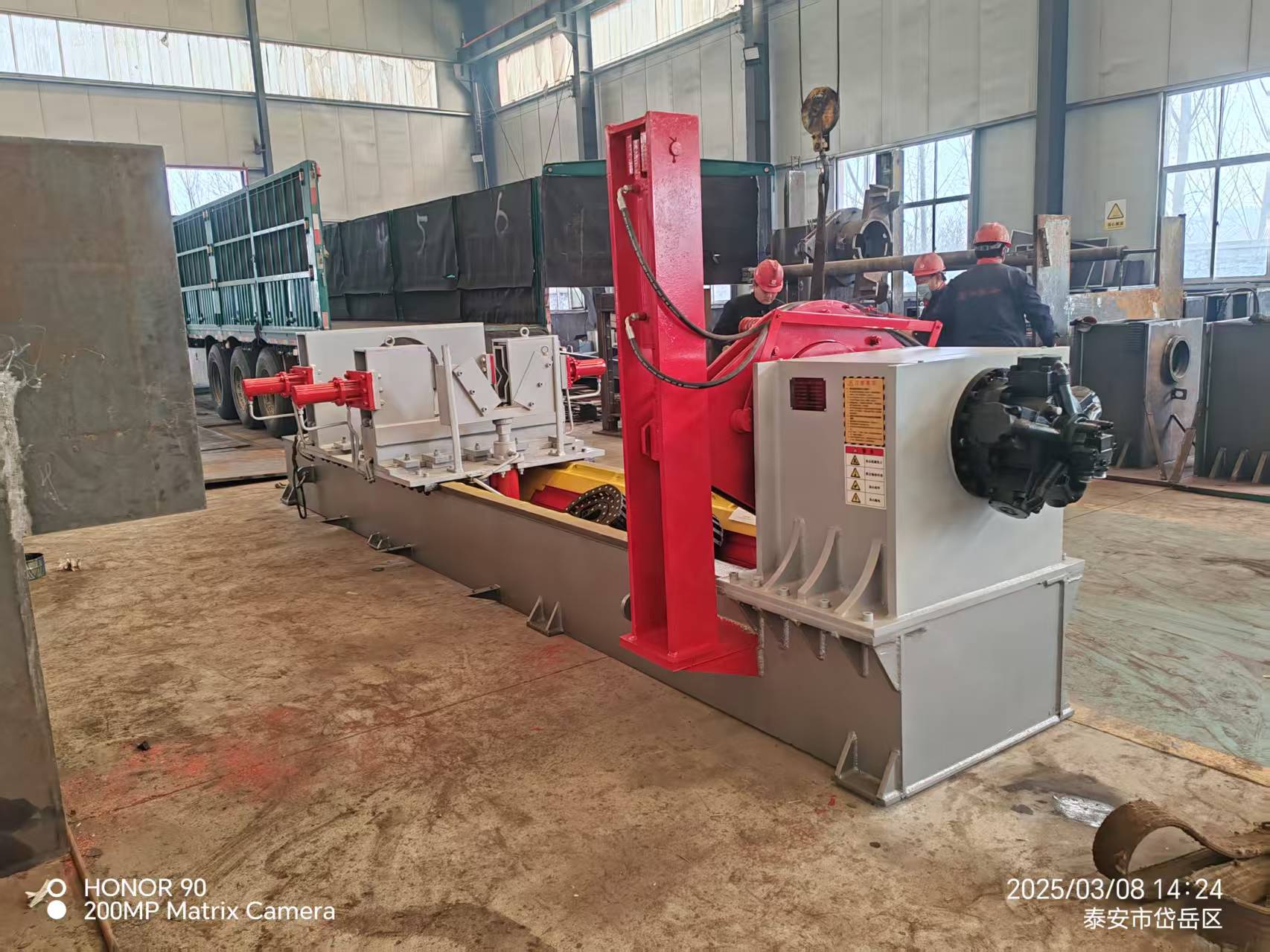

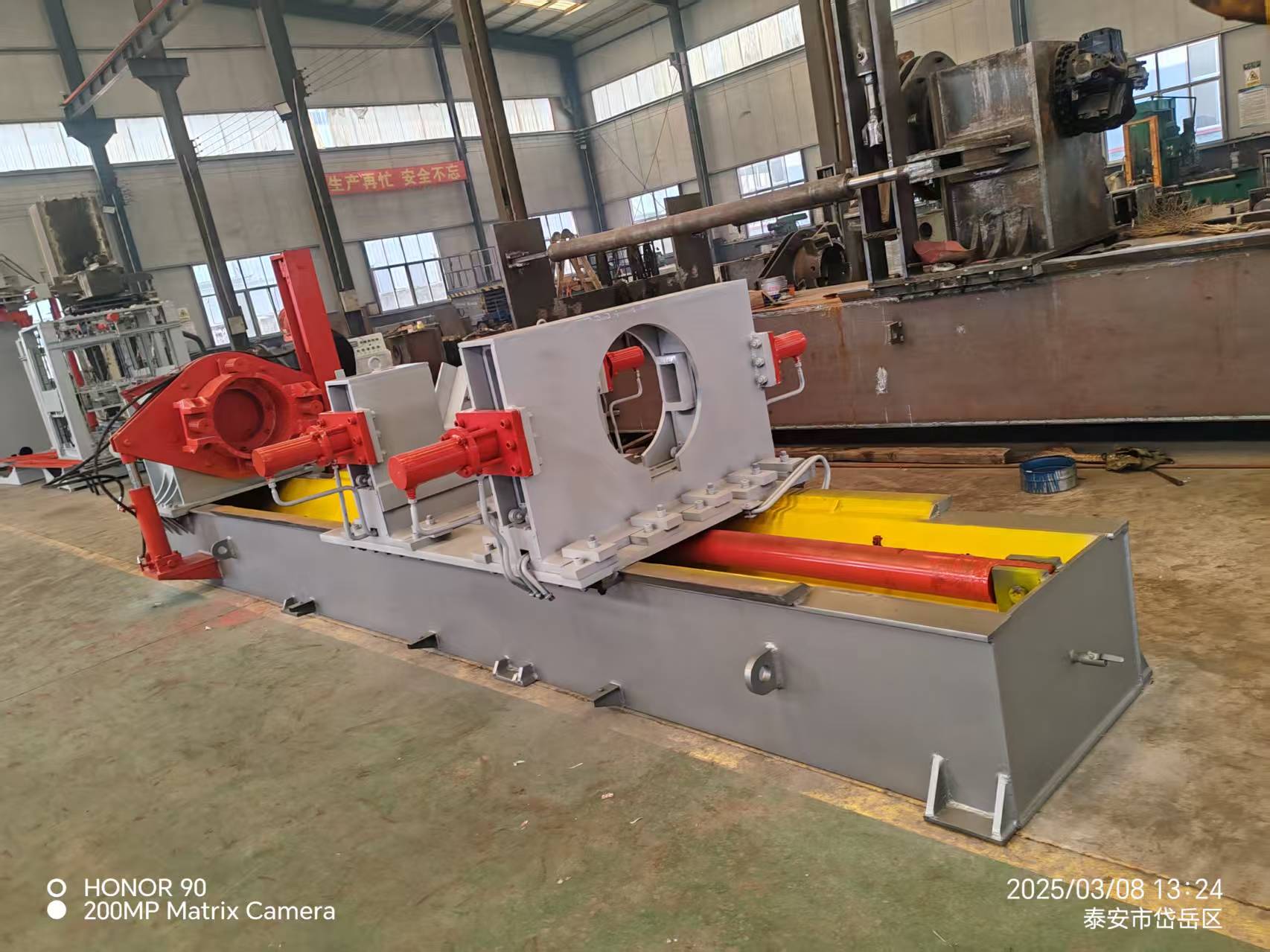

China Horizontal Cylinder Disassembly Machine:
China Horizontal Cylinder Disassembly Machine is a professional tools specifically designed for hydraulic cylinder detection, upkeep and overall performance test. Its core features include:
Load simulation: furnish controllable exterior pressure for the examined hydraulic cylinder thru the load hydraulic cylinder, and simulate the strain and load below the genuine working condition.
Multi-parameter measurement: integrating pull strain sensor, strain sensor, etc. to screen key parameters such as output pressure of hydraulic cylinder, stress of rodless cavity/rod cavity and friction pressure in actual time.
Structural adaptability: movable vertical body and music diagram are adopted to assist speedy set up and role adjustment of hydraulic cylinders of specific specs and meet the renovation necessities of various cylinder diameter and stroke.
Modular expansion: some fashions (such as movable horizontal check stand with patent design) aid bendy aggregate of load hydraulic cylinder and examined cylinder to meet the take a look at beneath complicated working conditions.
Core Features:
1.High-precision check capability
Real-time show of parameters: graphical interface can show pressure, force, displacement and different information intuitively, help curve technology and storage, and facilitate fault analysis.
Calculation of friction force: precisely calculate the friction pressure in the motion of the hydraulic cylinder thru the information of the strain sensor and the pulling stress sensor, and help in identifying the put on of the sealing components or the piston clamping stagnation.
Automatic control: frequency conversion force and PLC programming recognise correct adjustment of pressure, velocity and stroke, and assist regular strain and regular vary technique modes.
2.Structural Safety and Flexibility
Anti-over design: the vertical body and the base are linked by means of transferring components, so as to make certain the steadiness of the examined hydraulic cylinder at some stage in rotation or motion and keep away from tools overturning due to the offset of the core of gravity.
Load dispersion mechanism: the shaft plan with bearings at each ends converts the radial pressure of the loaded hydraulic cylinder into rolling friction, reduces the lateral stress on the piston rod and prolongs the carrier lifestyles of the seal.
Quick kind change: realise quick clamping and positioning of hydraulic cylinder thru mechanical buildings such as pin roll and sliding block, and shorten renovation guidance time.
Technical parameters:
Hydraulic Drive Motor | 18.5KW -4 stage |
Motor Disassembly Torque | 30000N.m |
Total Flow of Hydraulic Motor | 56L/min |
Pumping Station Pressure | 31.5Mpa |
Motor Working Pressure | 25Mpa |
Afterburner Torque | 300000N.m |
Maximum Thrust of The Clamping Cylinder | 265KN |
Maximum Pulling Force | 180KN |
Disassemble The Bore | 50-500 |
Translational Cylinder Stroke | 2100mm |
Secondary Cylinder Clamping | V-shaped tooth plate clamping |
How it Works | Control valve/button electric control/remote control |
Dimensions | 7000×2400×1700mm |
Product configuration:
| Name | Model | Quantity |
| Motor | 18.5KW | 1 unit |
| Hydraulic Motor | HZKY-01-001 | 1 unit |
| Oil Pump | HZKY-01-002 | 1 unit |
| Control Valves | HZKY-01-003 | 8 groups |
| Afterburner Cylinders | HZKY-01-004 | 2 pcs |
| Tighten Up Left and Right | HZKY-01-005 | 2 pcs |
| Auxiliary Cylinders | HZKY-01-006 | 1 pc |
| High-pressure Hose | 34 articles |
