Hydraulic Cylinder Disassembly Machine
1. Able to disassemble various models of threaded hydraulic supports and jacks that are securely assembled.
2. The adjusting nut ensures the secure assembly of various models of threaded hydraulic supports and jacks.
3. Disassemble and rotate various large threaded connecting components.
4. The self-locking mechanism replaces the original hydraulic clamping mechanism, with a simple structure, easy operation, and reliable performance.
5. The hydraulic medium uses mining emulsion, with the pump station separated from the main unit.
6. Hydraulic components use universal mining parts for easier maintenance and replacement.
7. The electrical control features protections against overload, short circuit, and pressure loss.
the use of The Introduction:
The Hydraulic Cylinder Disassembly Machine dismantling machine is a special equipment designed for the disassembly and assembly of fully mechanized coal mine support cylinders, which is improved by potential research on the basis of prototypes in recent years, and it is widely used in various types of fully mechanized mining equipment support cylinders with threaded end covers.
Characteristics and Main Structure:
1. The Hydraulic Cylinder Disassembly Machine dismantling machine can disassemble various types of hydraulic support columns and jacks that are firmly assembled with threads.
2. The fixed button torque is tightened and assembled, and various types of hydraulic supports, large columns and jacks are firmly assembled with threads.
3. Disassemble and spin on various large threaded connection components.
4. The self-positioning locking mechanism replaces the original hydraulic clamping mechanism, which has simple structure, convenient operation and reliable operation.
5. The hydraulic medium is mine emulsion, and the pumping station is separated from the main engine.
6. The hydraulic parts are made of general mining parts for maintenance and replacement.
7. The electrical control has the protection of overload, short circuit, loss of voltage, etc.

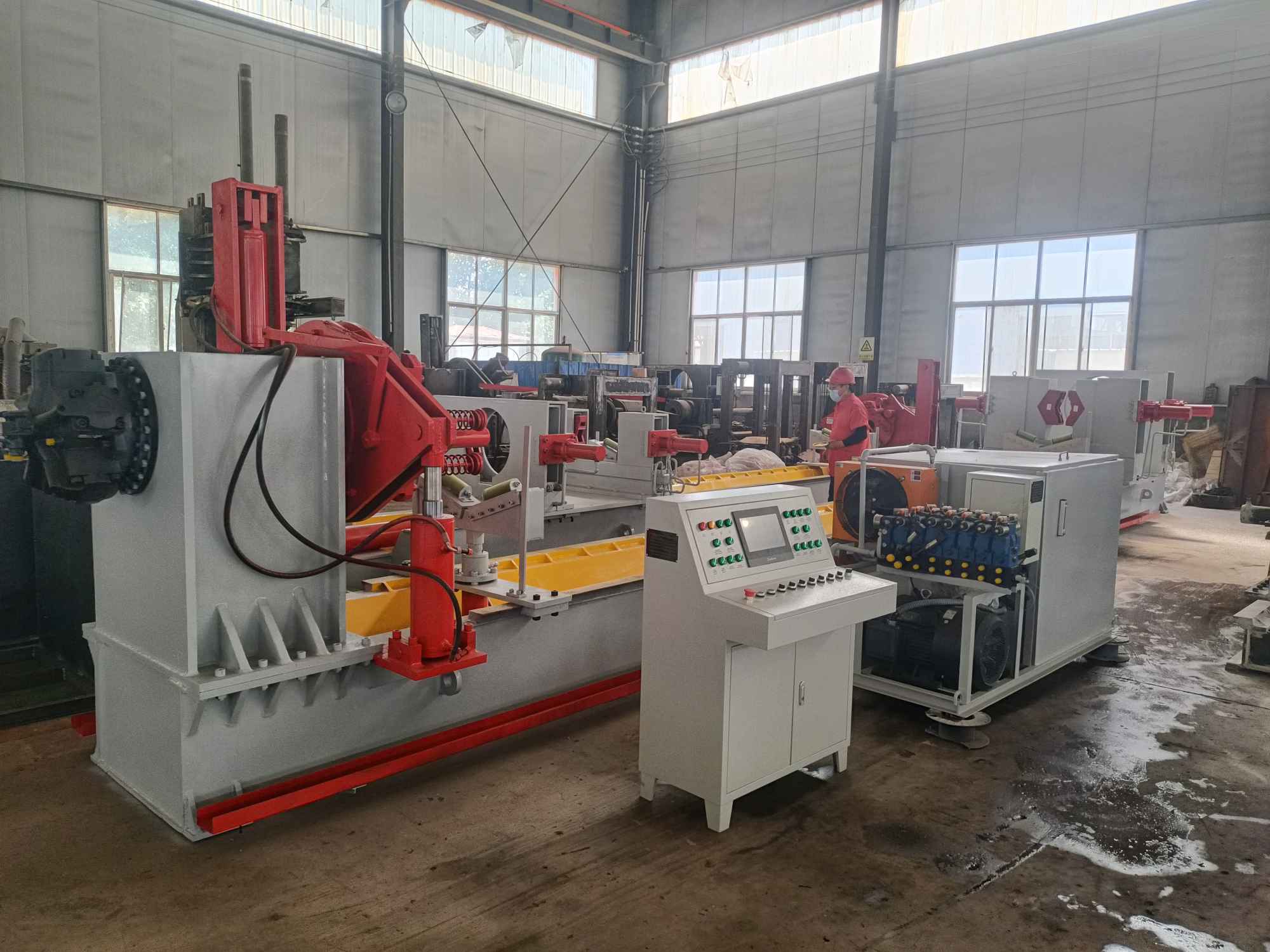

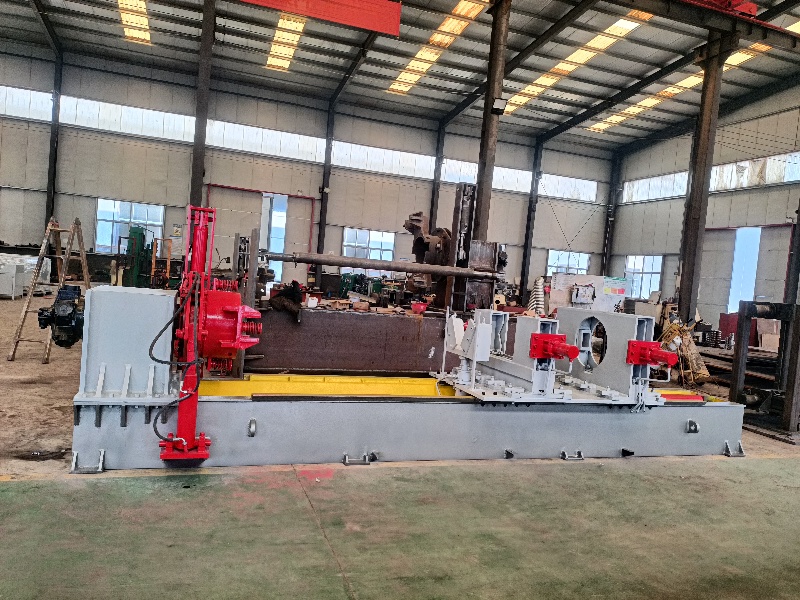

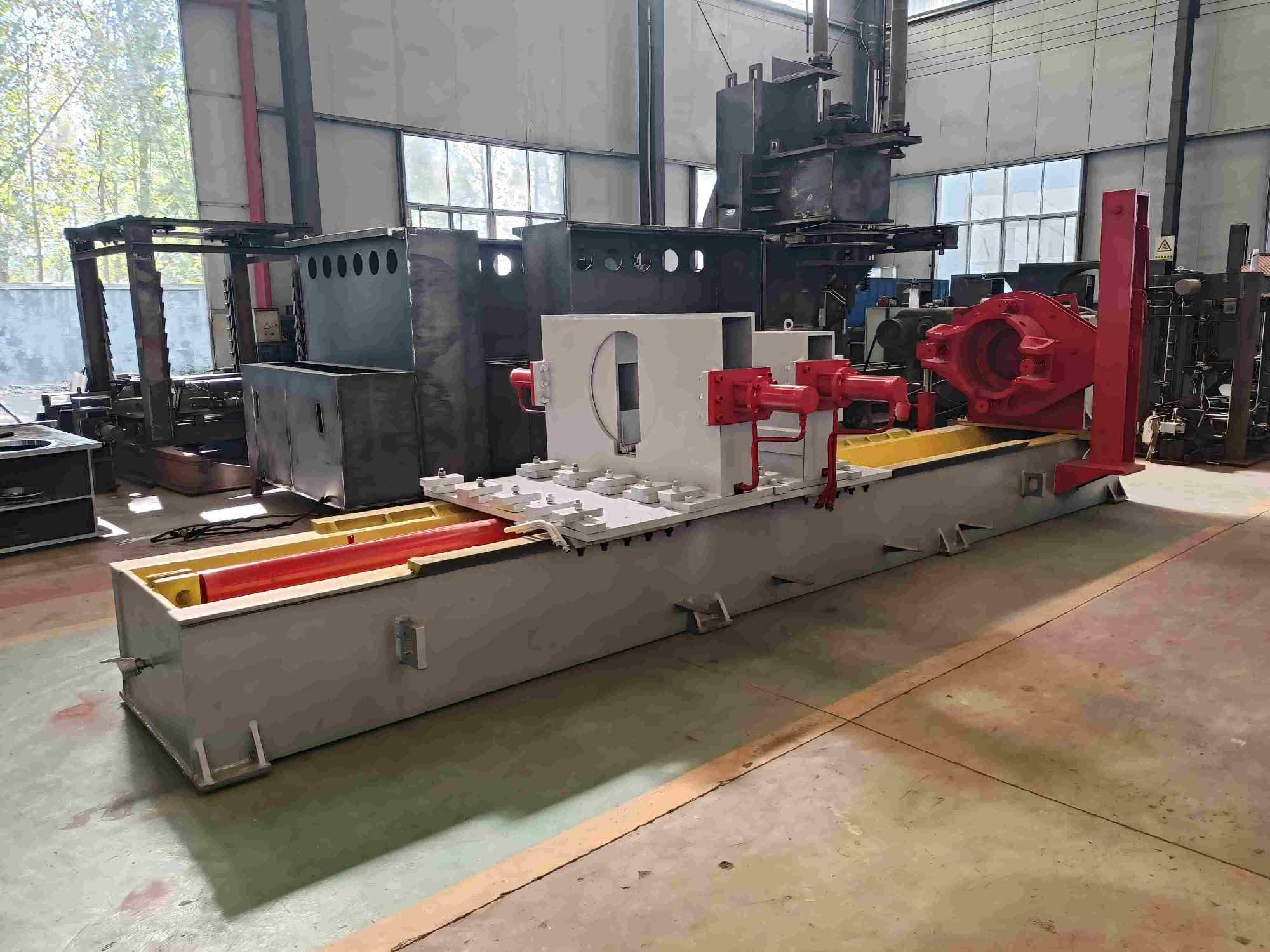

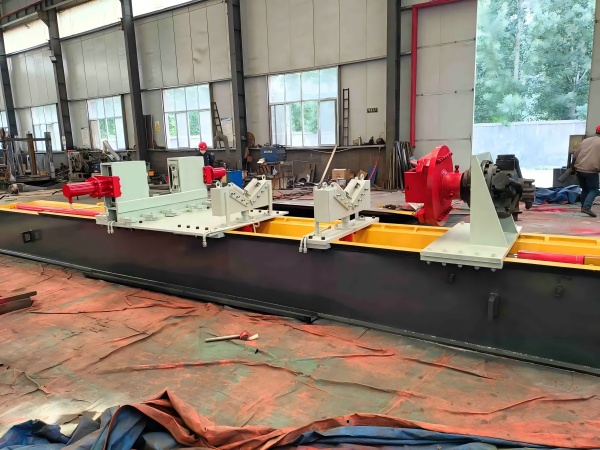

The Hydraulic Cylinder Disassembly Machine dismantling machine is mainly composed of a fuselage, a clamping and sliding device, a connecting roller, a chuck, a hydraulic motor transmission device, a hydraulic operating system, an electrical control system, etc.
Technical parameters:
Hydraulic Drive Motor | 18.5KW -4 stage |
Motor Disassembly Torque | 30000N.m |
Total Flow of Hydraulic Motor | 56L/min |
Pumping Station Pressure | 31.5Mpa |
Motor Working Pressure | 25Mpa |
Afterburner Torque | 300000N.m |
Maximum Thrust of The Clamping Cylinder | 265KN |
Maximum Pulling Force | 180KN |
Disassemble The Bore | 50-500 |
Translational Cylinder Stroke | 2100mm |
Secondary Cylinder Clamping | V-shaped tooth plate clamping |
How it Works | Control valve/button electric control/remote control |
Dimensions | 7000×2400×1700mm |
Product configuration:
| Name | Model | Quantity |
| Motor | 18.5KW | 1 unit |
| Hydraulic Motor | HZKY-01-001 | 1 unit |
| Oil Pump | HZKY-01-002 | 1 unit |
| Control Valves | HZKY-01-003 | 8 groups |
| Afterburner Cylinders | HZKY-01-004 | 2 pcs |
| Tighten Up Left and Right | HZKY-01-005 | 2 pcs |
| Auxiliary Cylinders | HZKY-01-006 | 1 pc |
| High-pressure Hose | 34 articles |
Company Introduction:

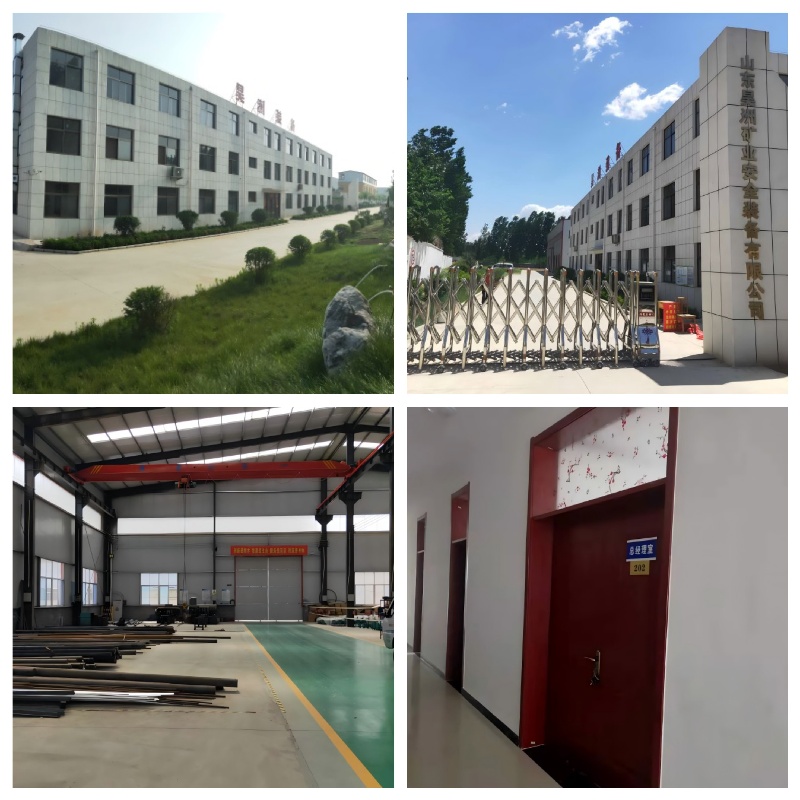

Shandong Haozhou Mining Safety Equipment Co., Ltd. is located in Daolang Town, Daiyue District, at the foot of the well-known Chinese and foreign Mount Tai, 15 kilometers away from the city, with an investment of 60 million yuan covering an area of 23 acres, and the construction of 8,000 square meters of plant has been put into use.
Shandong Haozhou Mining Safety Equipment Co., Ltd. mainly produces column dismantling equipment, Hydraulic Cylinder Disassembly Machine ,pillar maintenance equipment, coal mine roof dynamic safety monitoring system and a variety of mine pressure observation instruments, is a collection of design, development, manufacturing, equipment installation and after-sales service in one of the technology-based enterprises, the company has advanced production equipment, strong technical force, perfect testing equipment and strict management system, the production of products favored by the majority of users, won unanimous praise.

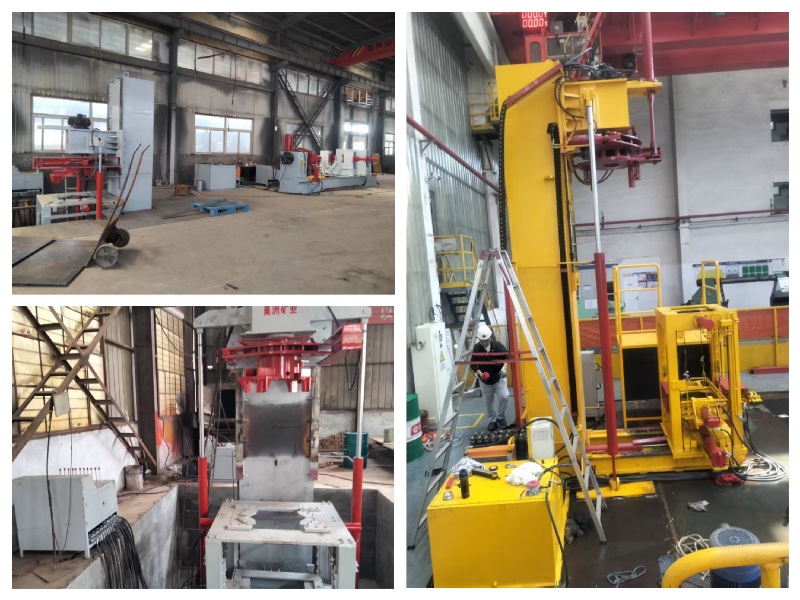

Collaborative Projects:
